FX801V-NS08 4 Stroke Engine FX801V

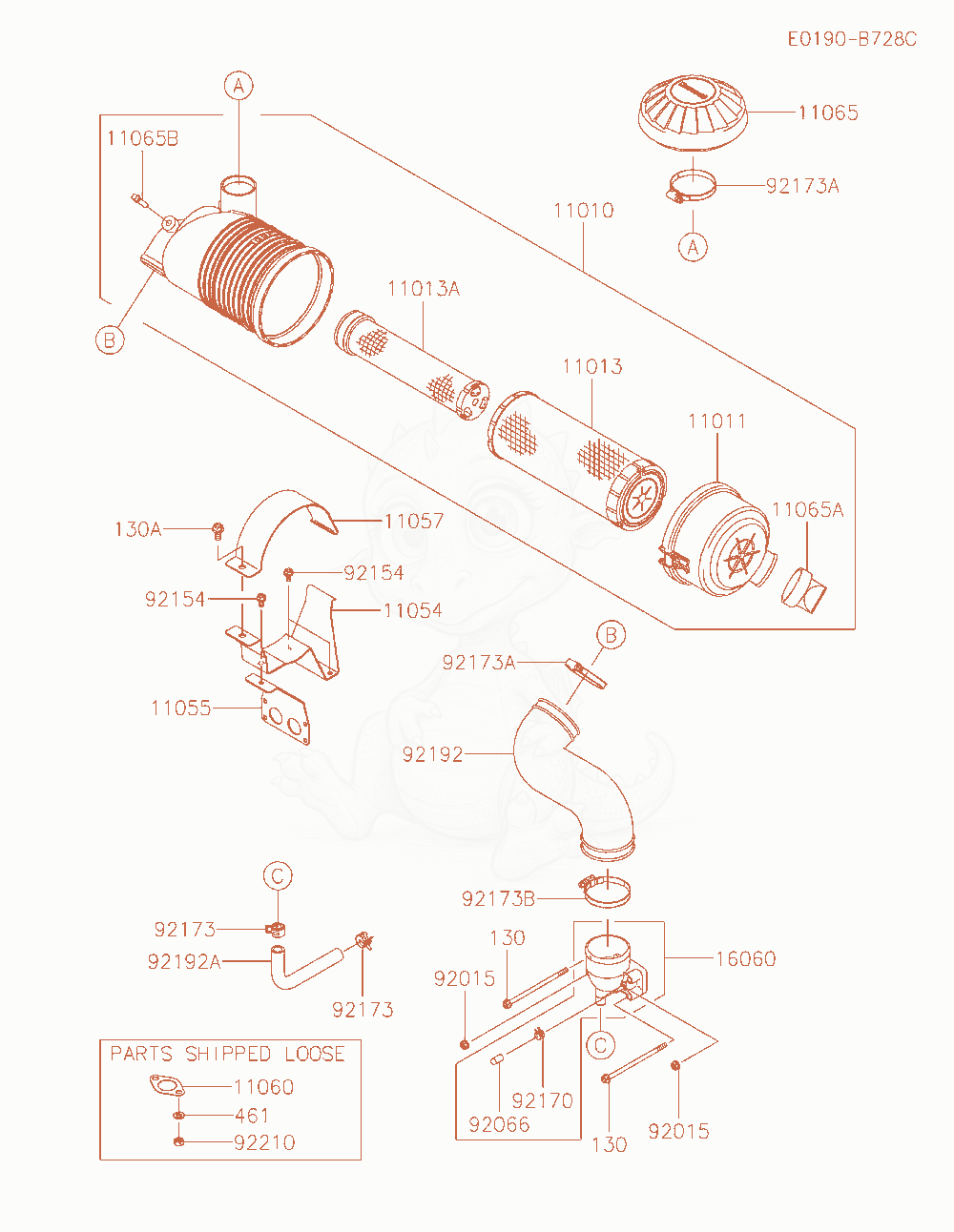

FX801V-NS08 Air-Filter / Muffler Diagram
- FILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- BRACKET×1
- BRACKET×1
- BRACKET×1
- GASKET,MUFFLER×2
- CAP,RAIN×1
- CAP×1
- CAP×1
- PIPE-INTAKE×1
- NUT,FLANGED,6MM×2
- PLUG×1
- BOLT,6X12×3
- CLAMP×1
- CLAMP×2
- CLAMP×2
- CLAMP×1
- 9219292192-1911Not stockedTUBE,AIR-FILTER×1
- TUBE,12.6X18.6X124.6×1
- NUT,M8×4
- BOLT-FLANGED,6X120×2
- BOLT-FLANGED,8X16×1
- WASHER-SPRING,8MM×4
