FX801V-BS07 4 Stroke Engine FX801V

FX801V-BS07 Carburetor Diagram

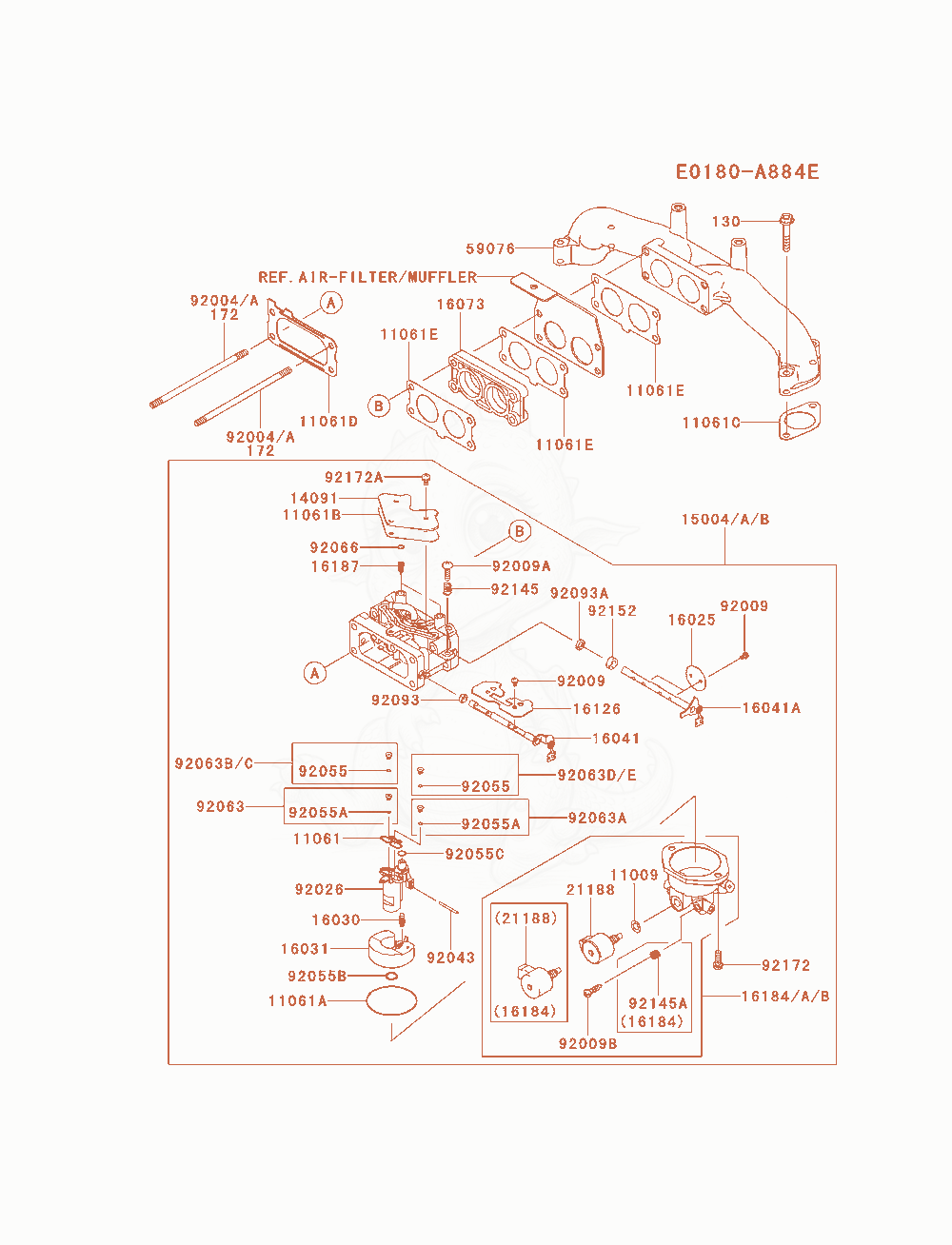

Exploded parts diagram of the Carburetor of a Kawasaki FX801V-BS07 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

92063E92063-7138
$18.80
JET-MAIN,#114,6560FT×AR
9206692066-7009
$6.96
PLUG,EXPANSION×2
9209392093-7001
$2.12
SEAL,D=5.9×1
92093A92093-7002
$1.93
SEAL,D=6.9×1
9214592145-7010
$2.50
SPRING×1
9215292152-7005
$10.62
COLLAR×1
9217292172-7005
$1.45
SCREW,M5×2
92172A92172-7006
$1.35
SCREW,M4×3
130130AA0635
$1.74
BOLT-FLANGED,6X35×4
