FX801V-BS04 4 Stroke Engine FX801V

FX801V-BS04 Lubrication-Equipment Diagram

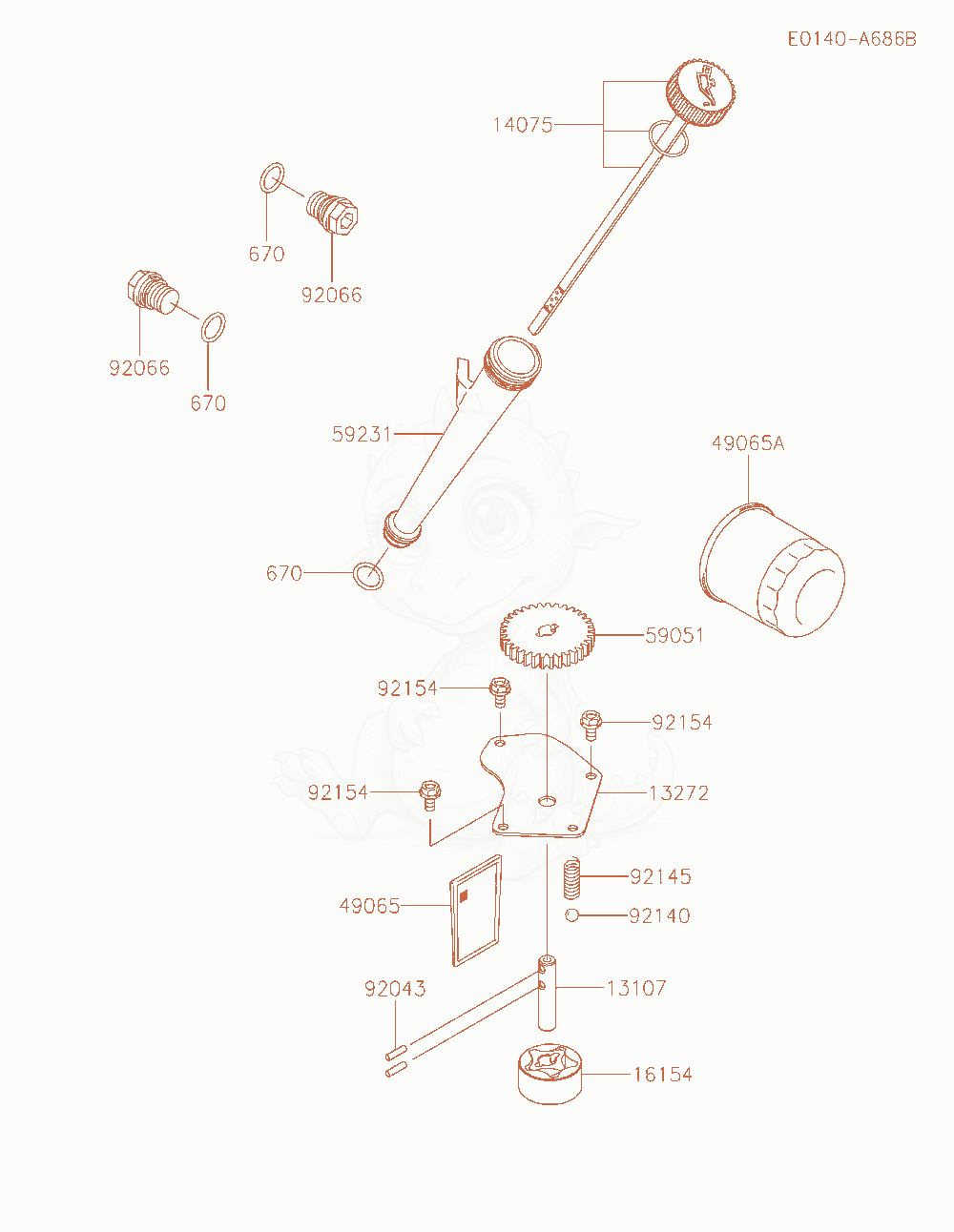

Exploded parts diagram of the Lubrication-Equipment of a Kawasaki FX801V-BS04 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1310713107-0858Not stocked
    SHAFT,OIL PUMP×1
  • 1327213272-4001
    $5.74
    PLATE,OIL PUMP×1
  • 1407514075-0049Not stocked
    CAP-ASSY×1
  • 1615416154-1079
    $28.09
    ROTOR-PUMP×1
  • 4906549065-0718
    $4.03
    FILTER-OIL×1
  • 49065A49065-0724Not stocked
    FILTER-OIL×1
  • 5905159051-7011
    $57.87
    GEAR-SPUR×1
  • 5923159231-7014
    $8.04
    FILLERReplaced by 59231-0791×1
  • 9204392043-7003Not stocked
    PIN×2
  • 9206692066-0774
    $4.56
    PLUG×2
  • 9214092140-7003
    $1.10
    BALL,STEEL,13/32Replaced by 92140-0029×1
  • 9214592145-1809
    $0.77
    SPRING,OIL RELIEF×1
  • 9215492154-2938
    $2.74
    BOLT,6X12×3
  • 670670D2016
    $5.83
    O RING,16MM×3
