FX801V-AS14 4 Stroke Engine FX801V

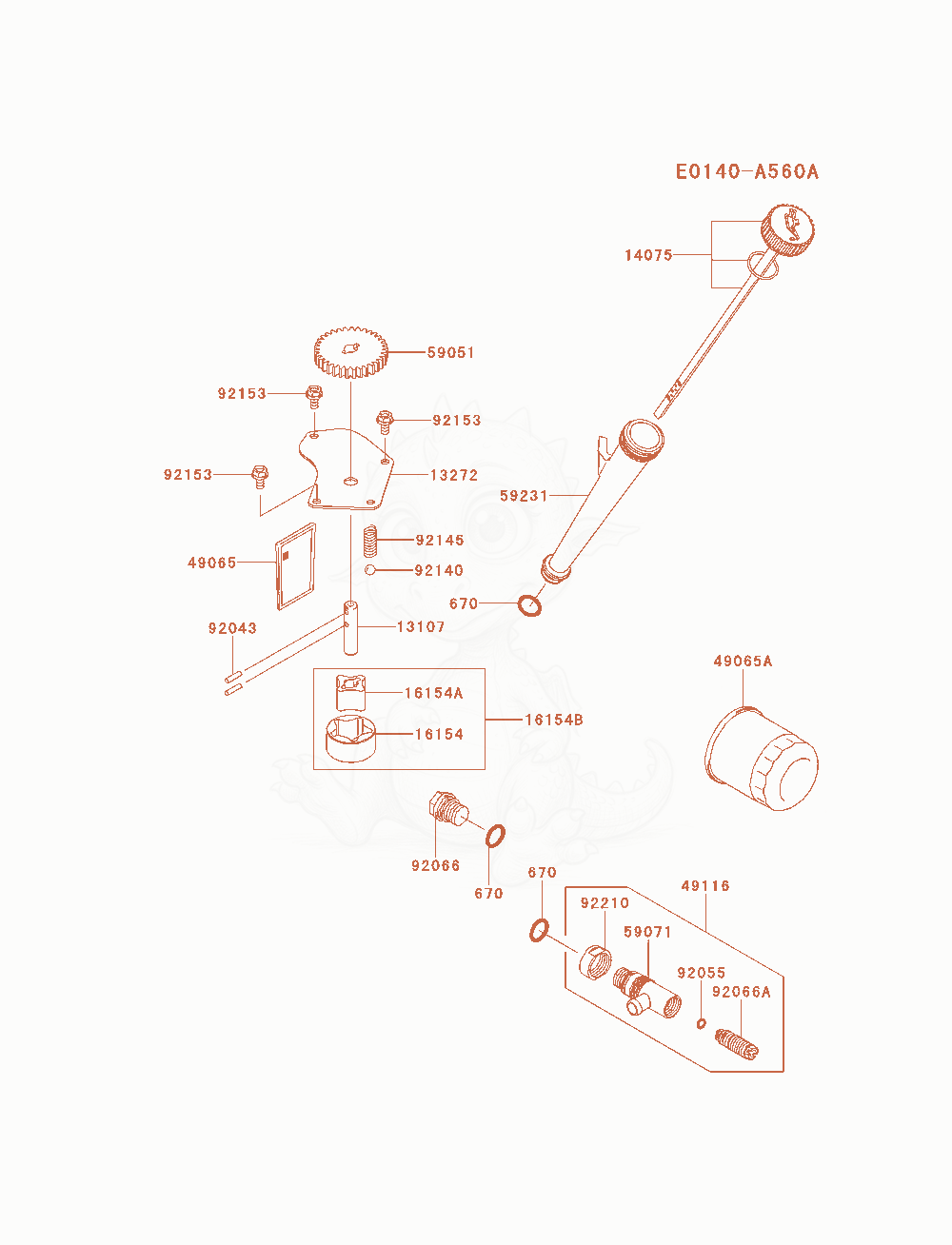

FX801V-AS14 Lubrication-Equipment Diagram
- 1310713107-0749Not stockedSHAFT×1
- PLATE,OIL PUMPReplaced by 13272-3883×1
- 1407514075-0033Not stockedCAP-ASSY×1
- 1615416154-1075Not stockedROTOR-PUMP,OUTER×1
- ROTOR-PUMP,INNER×1
- ROTOR-PUMP×1
- FILTER-OILReplaced by 49065-0718×1
- FILTER-OILReplaced by 49065-0734×1
- 4911649116-7001Not stockedVALVE-ASSY×1
- GEAR-SPUR×1
- JOINTReplaced by 59071-0763×1
- FILLERReplaced by 59231-0791×1
- 9204392043-7003Not stockedPIN×2
- RING-O,6MM×1
- PLUG×1
- 92066A92066-7007Not stockedPLUG×1
- BALL,STEEL,13/32Replaced by 92140-0029×1
- 9214592145-1658Not stockedSPRING×1
- 9215392153-7043Not stockedBOLT,6X12×3
- 9221092210-7012Not stockedNUT,M22×1
- O RING,16MM×3
