FX801V-AS10 4 Stroke Engine FX801V

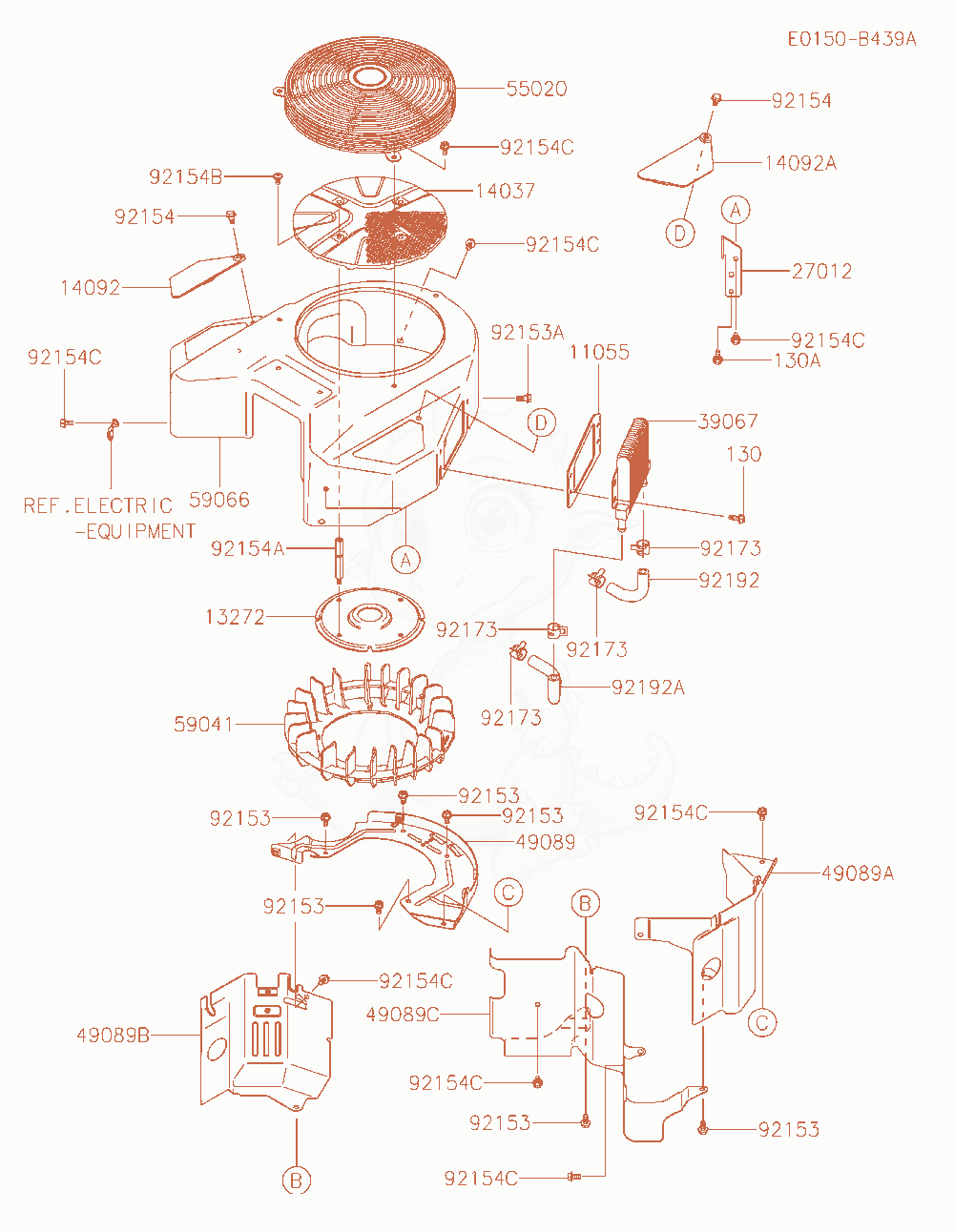

FX801V-AS10 Cooling-Equipment Diagram
- 1105511056-7280Not stockedBRACKET×1
- PLATE,FAN×1
- SCREEN×1
- COVER×1
- COVER×1
- HOOK,LIFT×1
- 3906739067-0018Not stockedCOOLER-OIL×1
- 4908949089-0866Not stockedSHROUD-ENGINE,BACK×1
- SHROUD-ENGINE,#2×1
- SHROUD-ENGINE,#1Replaced by 49089-6048×1
- SHROUD-ENGINE,V-BANKReplaced by 49089-1176×1
- GUARD×1
- FAN×1
- HOUSING-FAN×1
- BOLT,FLANGED,6X12×6
- BOLT,FLANGED,6X16×1
- BOLT×2
- BOLT,SCREENReplaced by 92154-4312×4
- BOLT,6X12×4
- BOLT,6X12×10
- CLAMP×4
- TUBE×1
- TUBE×1
- 130130BA0616Not stockedBOLT-FLANGED,6X16×4
- BOLT-FLANGED,6X20×1
