FX801V-AS00 4 Stroke Engine FX801V

FX801V-AS00 Cylinder / Crankcase Diagram

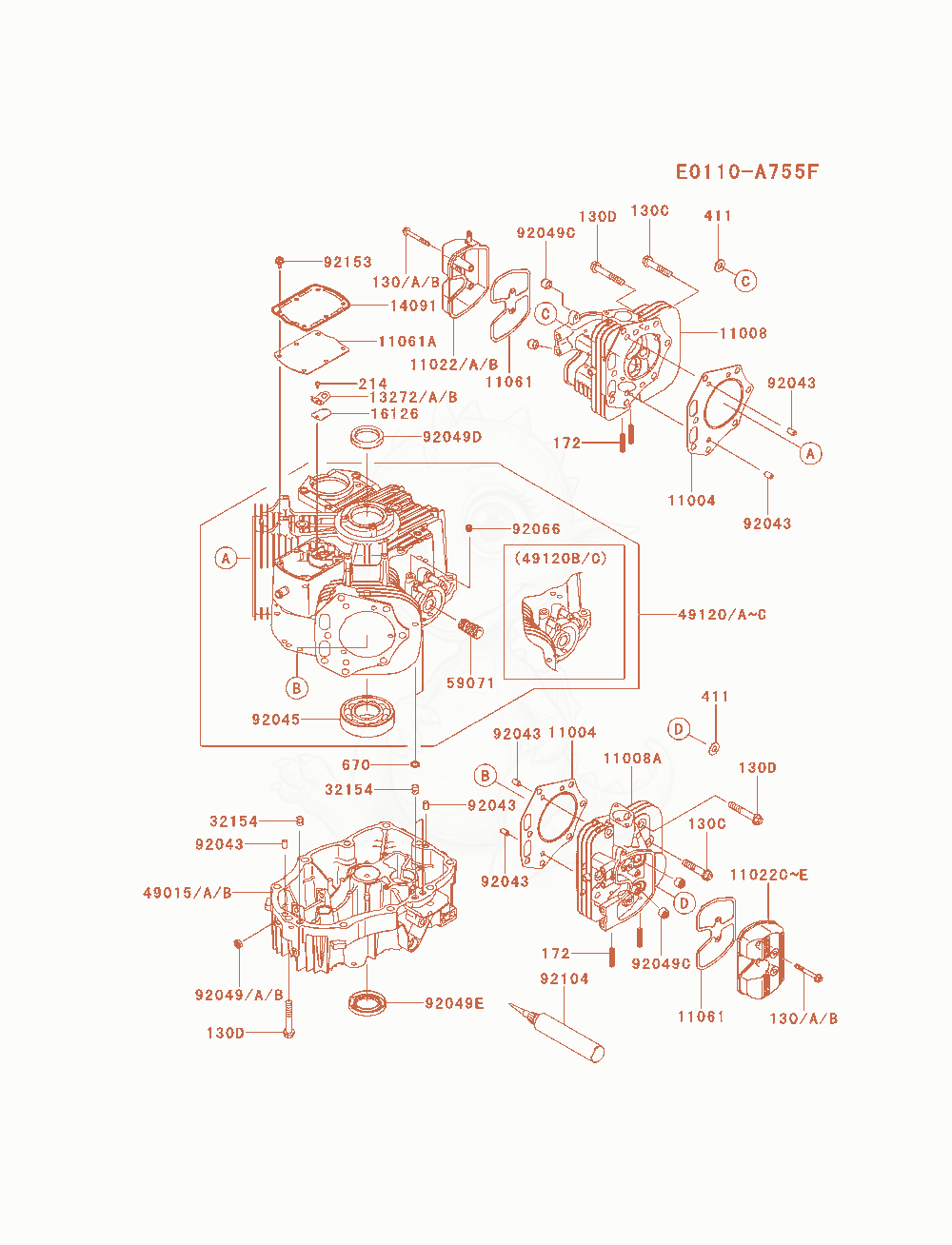

Exploded parts diagram of the Cylinder / Crankcase of a Kawasaki FX801V-AS00 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

130130BA0650
$1.01
BOLT-FLANGED,6X50×0
130B130BA0650
$1.01
BOLT-FLANGED,6X50×4
130C130CA1050
$3.85
BOLT-FLANGED,10X50×2
130D130CA1060
$3.80
BOLT-FLANGED,10X60×20
172172BA0818
$1.74
BOLT-STUD,8X18×4
214214AA0408
$4.13
SCREW-PAN+-,4X8×1
411411AA1000
$0.82
WASHER-PLAIN,10MM×2
670670B2011
$5.21
O RING,11MM×2
