FX751V-AS08 4 Stroke Engine FX751V

FX751V-AS08 Carburetor Diagram

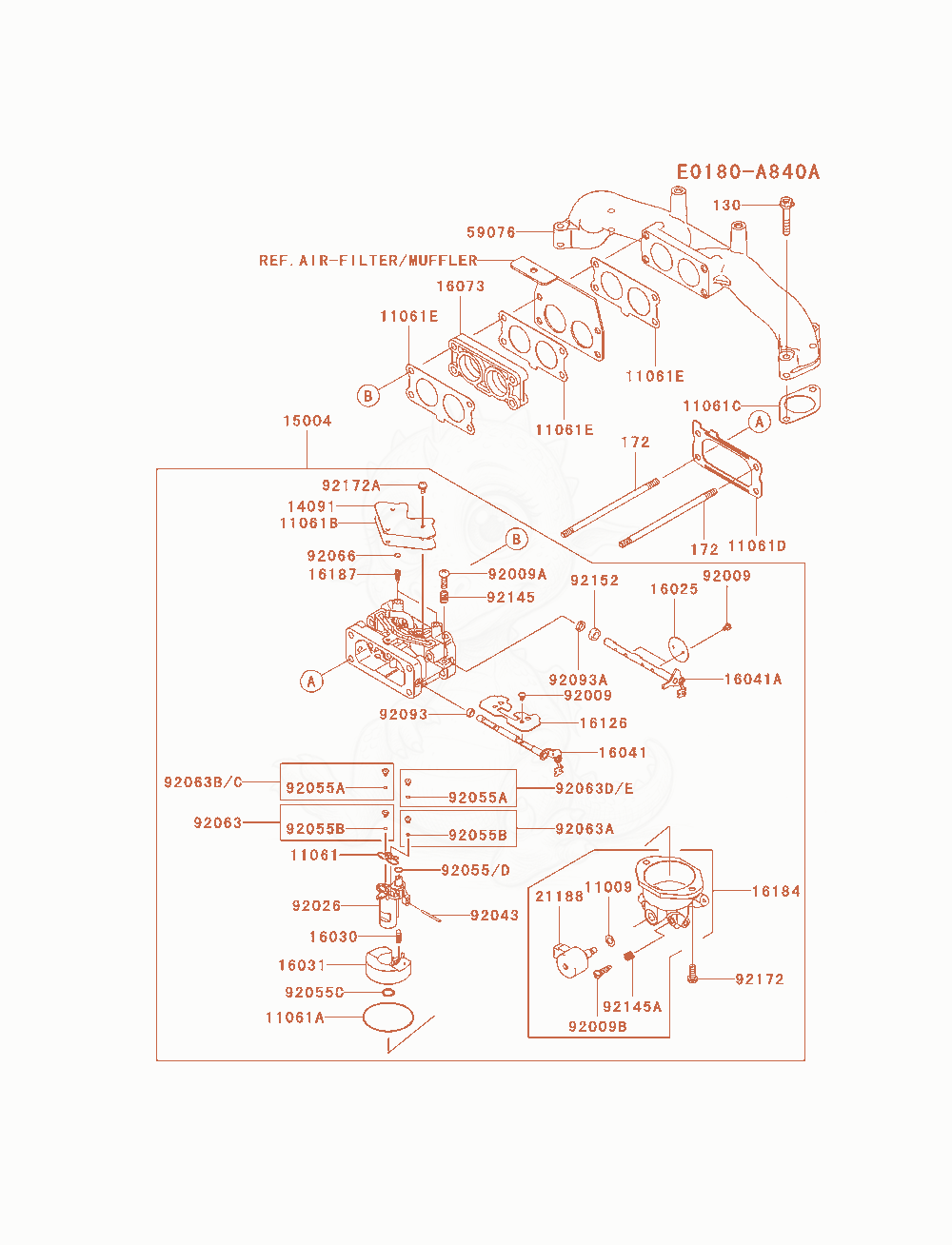

Exploded parts diagram of the Carburetor of a Kawasaki FX751V-AS08 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

92145A92145-7011
$2.52
SPRING×1
9215292152-7005
$10.62
COLLAR×1
9217292172-7005
$1.45
SCREW,M5×2
92172A92172-7006
$1.35
SCREW,M4×3
130130AA0635
$1.74
BOLT-FLANGED,6X35×4
172172BA06120
$3.92
BOLT-STUD,6X120×2
