FX730V-FS36 4 Stroke Engine FX730V

FX730V-FS36 Cooling-Equipment Diagram

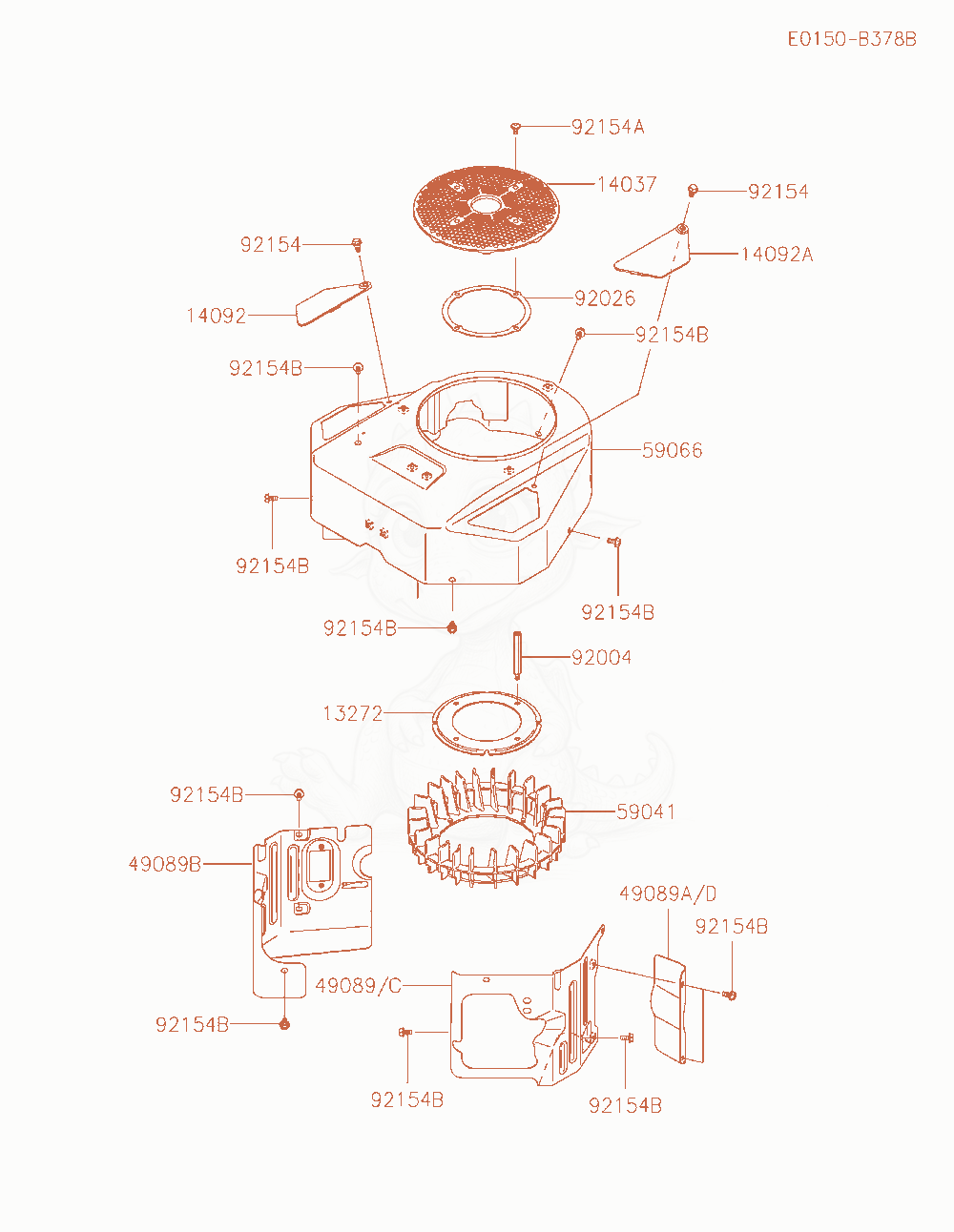

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FX730V-FS36 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1327213272-2577
$8.62
PLATE,FAN×1
1403714037-7014
$34.89
SCREEN×1
1409214092-1039
$1.75
COVER×1
14092A14092-1040
$1.76
COVER×1
49089B49089-1177
$28.59
SHROUD-ENGINE×1
49089C49089-1180
$30.11
SHROUD-ENGINE×1
49089D49089-1187
$7.17
SHROUD-ENGINE×1
5904159041-7014
$15.11
FANReplaced by 59041-0034×1
5906659066-0852
$155.61
HOUSING-FAN×1
9200492004-0800
$8.61
STUD,6X69×4
9202692026-0857
$5.22
SPACER×1
9215492154-1119
$2.06
BOLT×2
92154A92154-2687
$1.05
BOLT,6X12×4
92154B92154-2938
$2.74
BOLT,6X12×11
