FX730V-AS19 4 Stroke Engine FX730V

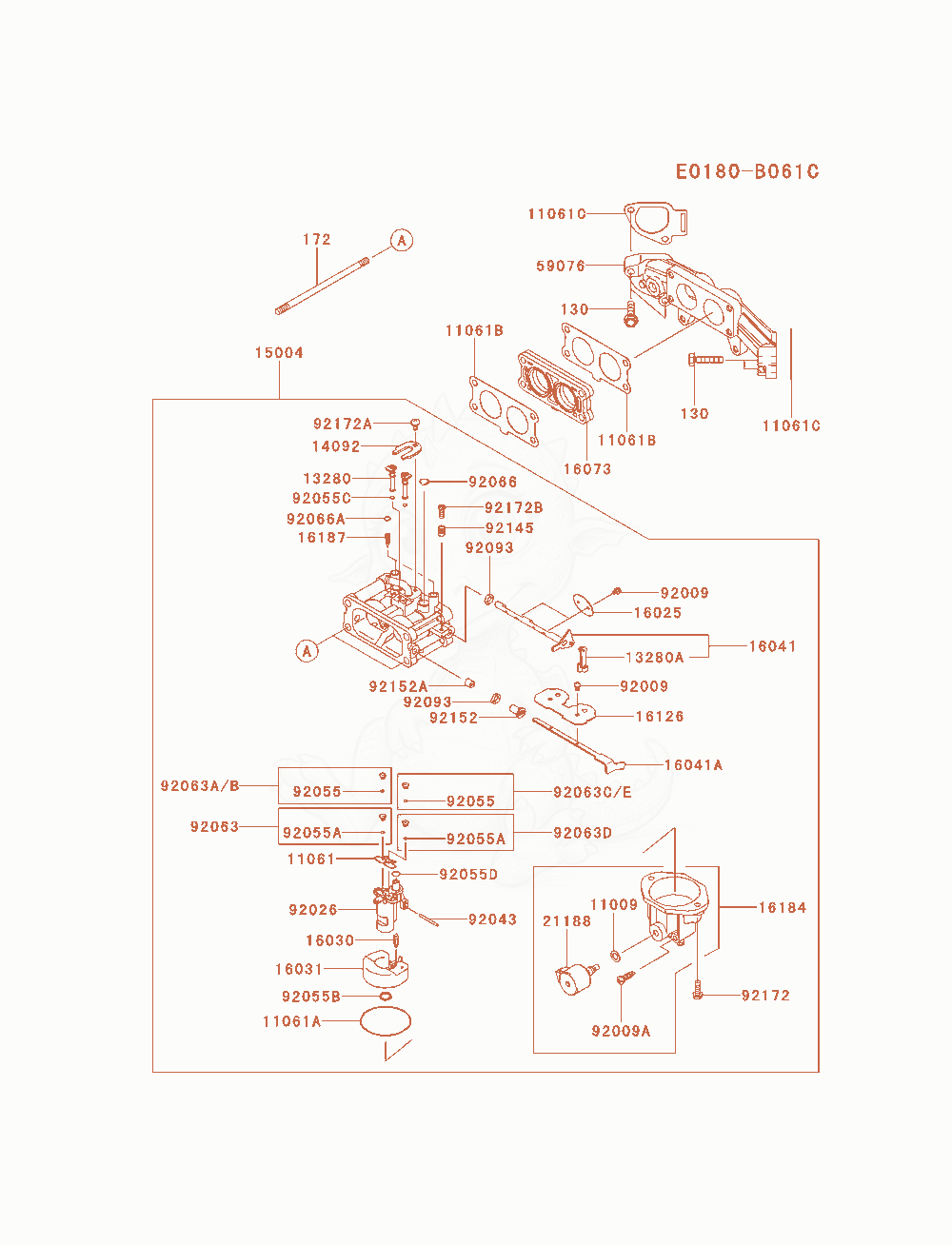

FX730V-AS19 Carburetor(1 / 2) Diagram
- GASKET,SCREW-CARBURETOR×1
- GASKET,CARB SPACER×1
- GASKET,CARBURETOR×1
- GASKET,CARBURETOR/MANIFOLD×2
- GASKET,MANIFOLD×2
- HOLDER×2
- HOLDER×1
- COVER×1
- CARBURETOR-ASSYReplaced by 15004-1011×1
- VALVE-THROTTLE×2
- VALVE-FLOAT×1
- FLOAT×1
- SHAFT-CARBURETOR,THROTTLE×1
- SHAFT-CARBURETOR,CHOKE×1
- INSULATORReplaced by 16073-0875×1
- VALVE×1
- CHAMBER-ASSY-FLOAT×1
- NEEDLE-JET×2
- SOLENOID×1
- MANIFOLD-INTAKE×1
- SCREW×6
- SCREW,DRAIN×1
- SPACER×1
- PIN,FLOAT×1
- RING-O×AR
- RING-O×2
- RING-O×1
- RING-O×2
- RING-O×1
- JET-MAIN,#108, SEA-LEVEL TO 3,280FT ELEVATION×1
- JET-MAIN,#105, 3,281 to 6,560FT ELEVATION×AR
- JET-MAIN,#102, ABOVE 6,560FT ELEVATION×AR
- JET-MAIN,#104×AR
- JET-MAIN,#110, SEA-LEVEL TO 3,280FT ELEVATION×1
- JET-MAIN,#107, 3,281 to 6,560FT ELEVATION×AR
- PLUG,WELCH×2
- PLUG,EXPANSION×2
- SEAL,D=6.9×2
