FX651V-AS11 4 Stroke Engine FX651V

FX651V-AS11 Carburetor(2 / 2) Diagram

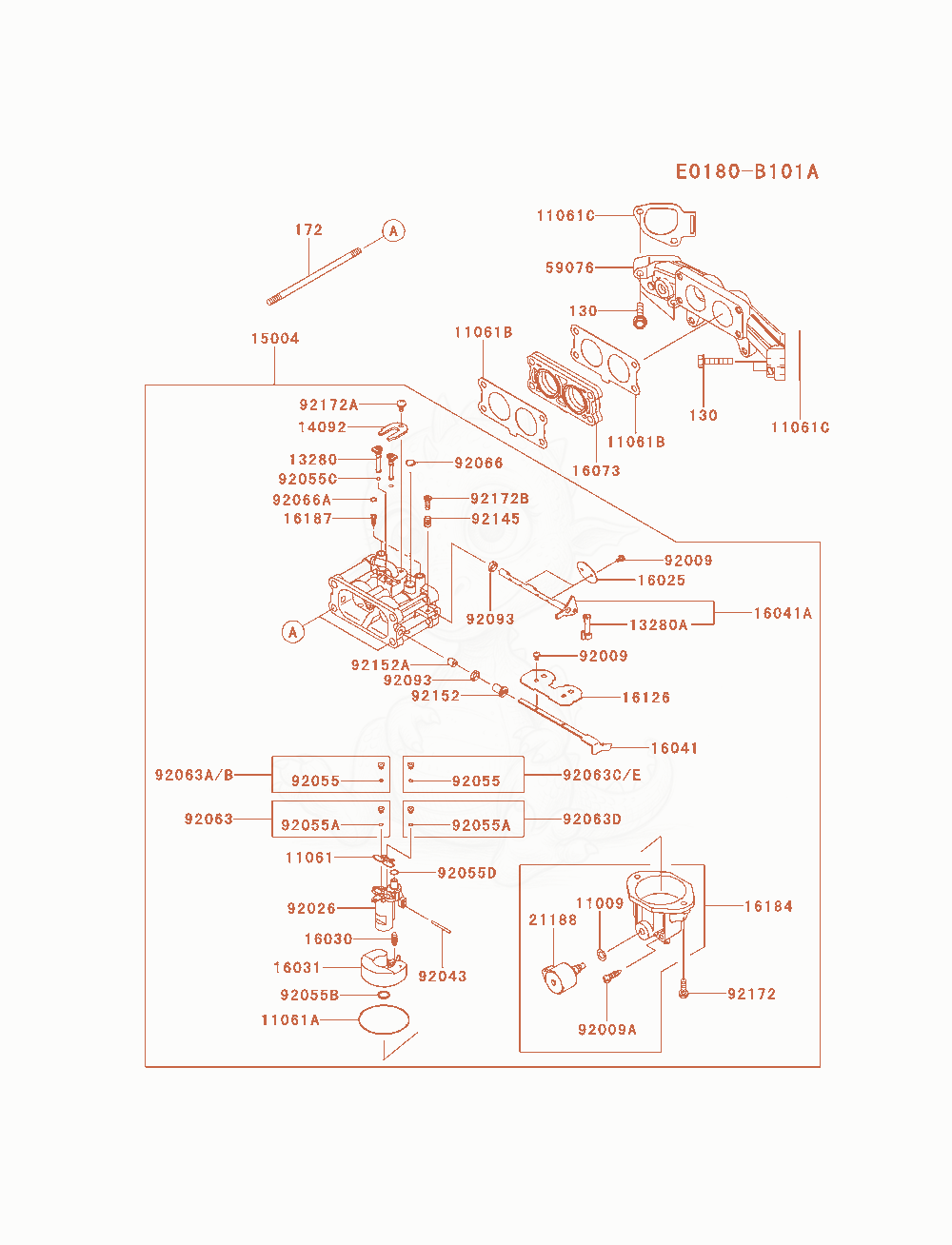

Exploded parts diagram of the Carburetor(2 / 2) of a Kawasaki FX651V-AS11 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

92152A92152-7019
$1.97
COLLAR×1
9217292172-7005
$1.45
SCREW,M5×2
92172A92172-7006
$1.35
SCREW,M4×1
92172B92172-7039
$1.70
SCREW,THROTTLE ADJUST×1
130130AA0630
$1.45
BOLT-FLANGED,6X30×4
172172BA06115
$2.88
BOLT-STUD,6X115×2
