FX651V-AS09 4 Stroke Engine FX651V

FX651V-AS09 Cylinder / Crankcase Diagram

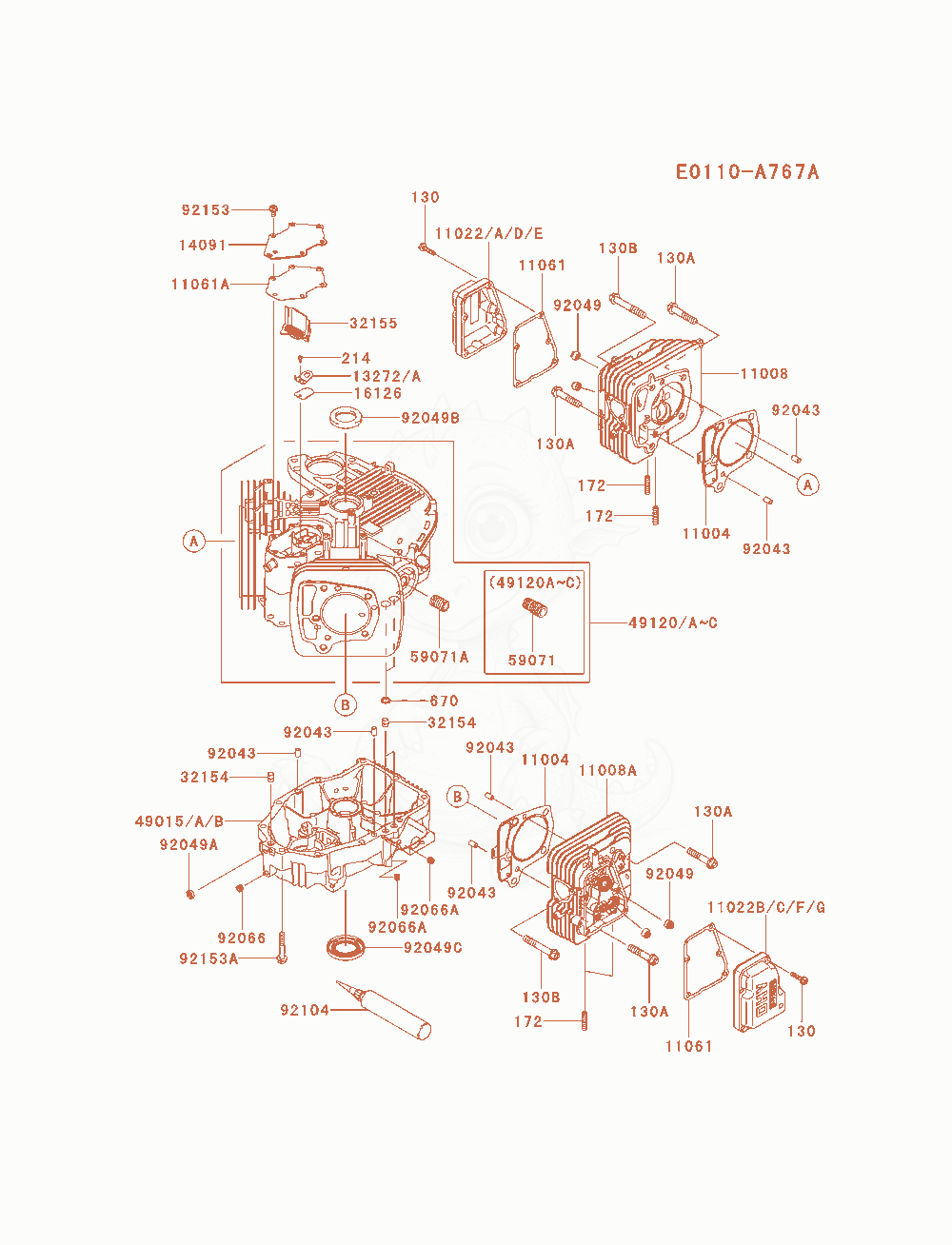

Exploded parts diagram of the Cylinder / Crankcase of a Kawasaki FX651V-AS09 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

130B130CA1065
$2.65
BOLT-FLANGED,10X65×6
172172BA0818
$1.74
BOLT-STUD,8X18×4
214214AA0408
$4.13
SCREW-PAN+-,4X8×1
670670B2011
$5.21
O RING,11MM×2
