FX541V-ES00 4 Stroke Engine FX541V

FX541V-ES00 Cooling-Equipment Diagram

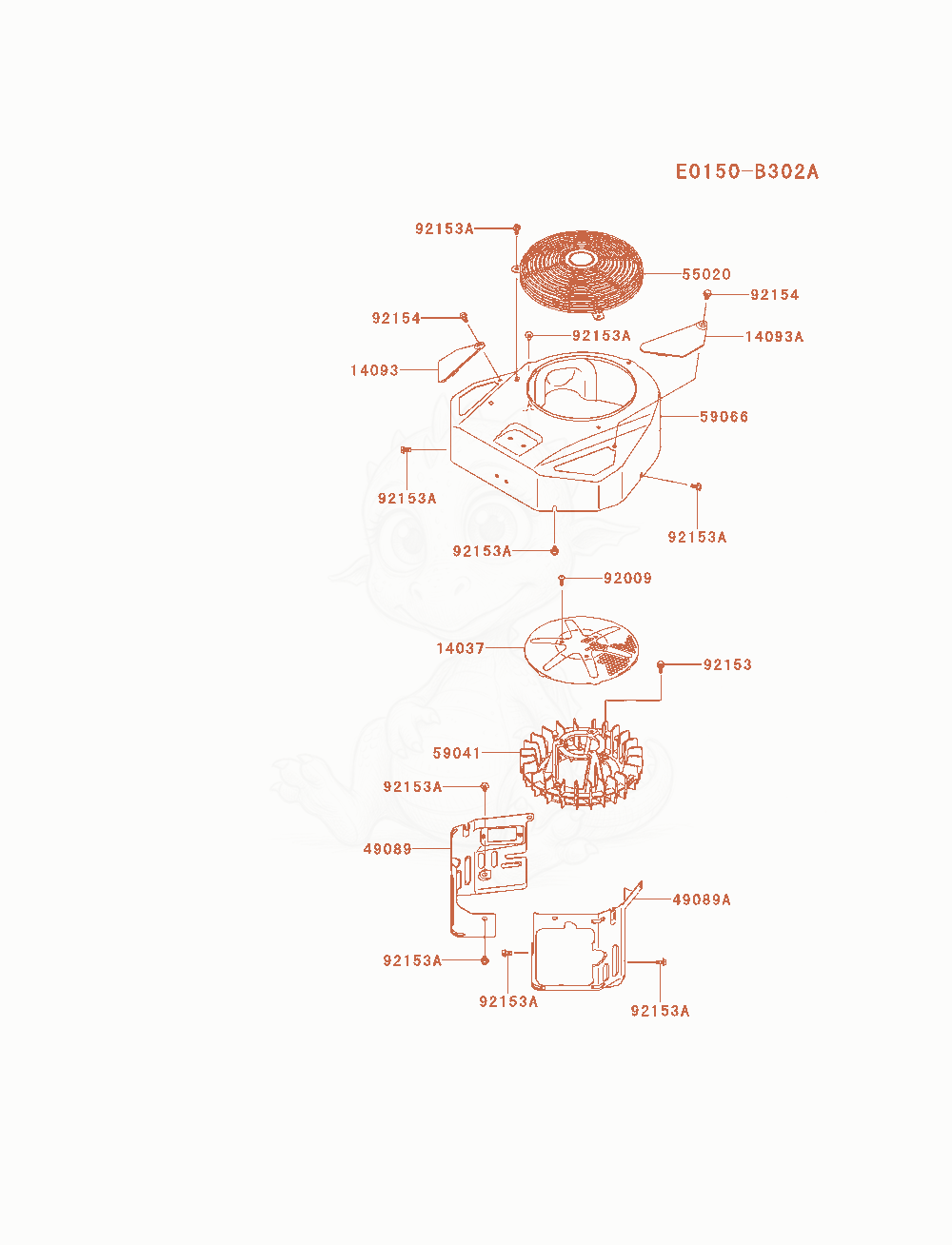

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FX541V-ES00 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1403714037-7008-9HPrice
    SCREEN×1
  • 1409314093-0358Price
    COVER,CYL #1Replaced by 14094-0475×1
  • 14093A14093-0359Price
    COVER,CYL #2Replaced by 14094-0476×1
  • 4908949089-7085-753Not stocked
    SHROUD-ENGINE×1
  • 49089A49089-7086-753Not stocked
    SHROUD-ENGINE×1
  • 5502055020-7017-9HPrice
    GUARD×1
  • 5904159041-7016Price
    FAN×1
  • 5906659066-0765-753Not stocked
    HOUSING-FAN,GRAY×1
  • 9200992009-2303Price
    SCREWReplaced by 92172-1608×3
  • 9215392153-7007Price
    BOLT,FLANGED,6X16×4
  • 92153A92153-7043Not stocked
    BOLT,6X12×11
  • 9215492154-1119Price
    BOLT×2
