FX541V-BS01 4 Stroke Engine FX541V

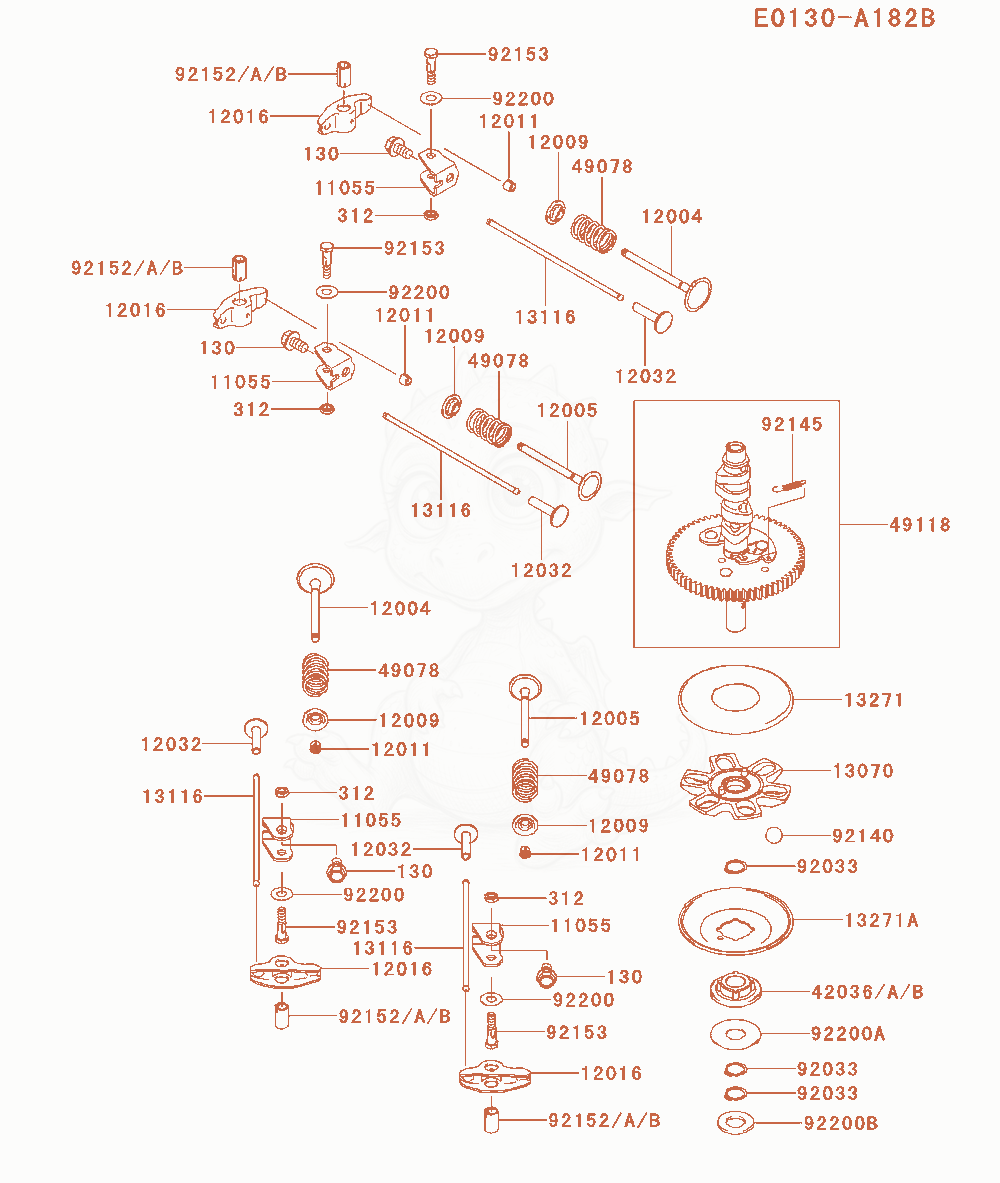

FX541V-BS01 Valve / Camshaft Diagram
- BRACKETReplaced by 11057-7822×4
- VALVE-INTAKEReplaced by 12004-0740×2
- 1200512005-7010Not stockedVALVE-EXHAUST×2
- RETAINER-VALVE SPRING×4
- COLLET×8
- ARM-ROCKERReplaced by 12016-0040×4
- TAPPET×4
- 1307013070-7017Not stockedGUIDE,GOVERNOR×1
- ROD-PUSH×4
- PLATEReplaced by 13272-3994×1
- PLATE,GOVERNORReplaced by 13272-3993×1
- SLEEVE×1
- SPRING-ENGINE VALVE,IN×4
- 4911849118-7023Not stockedCAMSHAFT-COMP×1
- 9203392033-7001Not stockedRING-SNAP×3
- 9214092140-7005Not stockedBALL×6
- 9214592145-7001Not stockedSPRING×1
- 92152A92152-7022Not stockedCOLLAR×4
- BOLT,6X29.5×4
- WASHER,8.1X18X0.5Replaced by 92200-2707×4
- 92200A92200-7009Not stockedWASHER,16X42X0.91×1
- WASHER,16.3X30X2.28×1
- 130130AA0814Not stockedBOLT-FLANGED,8X14×4
- NUT-HEX,6MM×4
