FT730V-AS16 4 Stroke Engine FT730V

FT730V-AS16 Starter Diagram

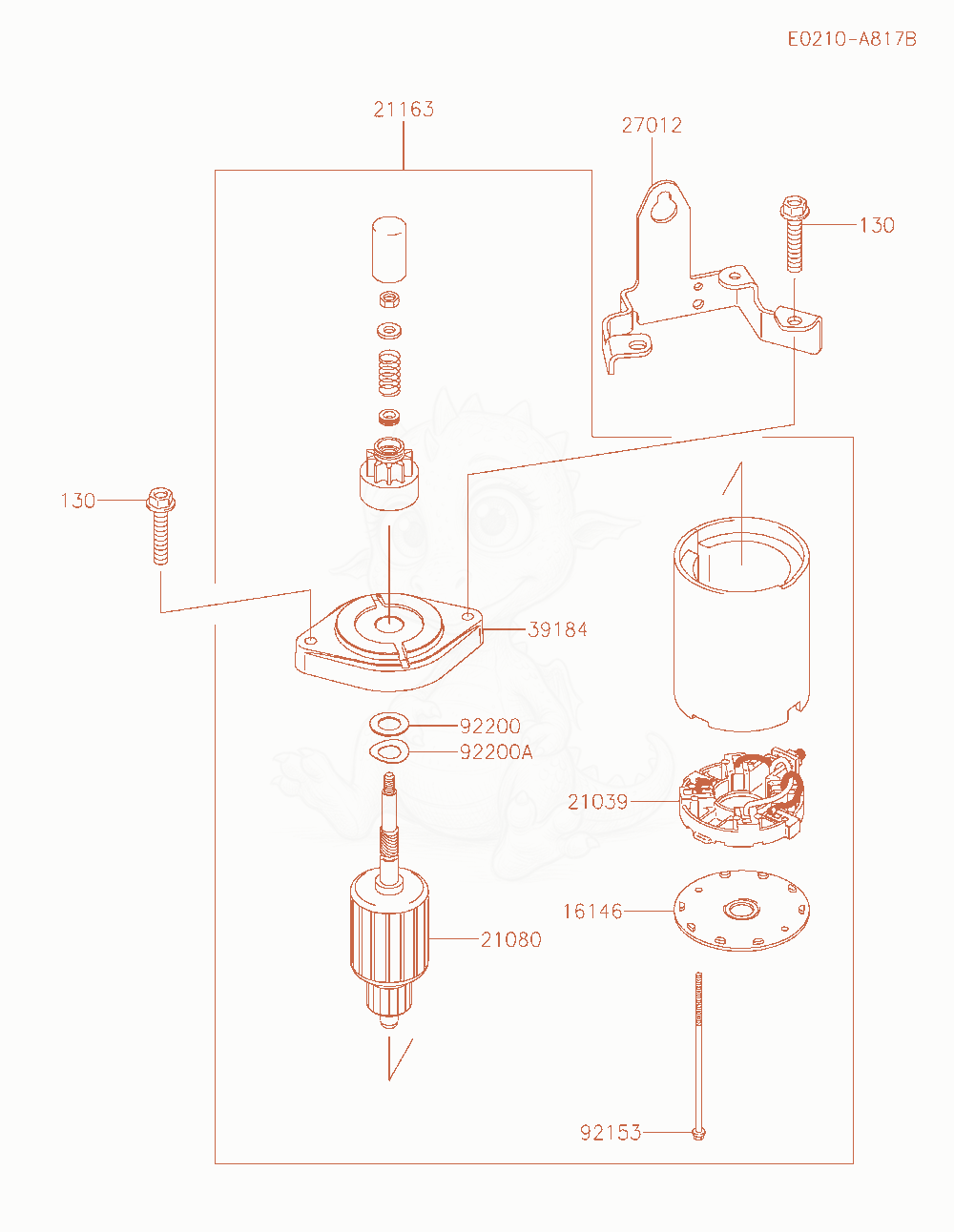

Exploded parts diagram of the Starter of a Kawasaki FT730V-AS16 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1614616146-7013
$9.51
COVER-ASSY×1
2103921039-7002
$65.64
BRUSH×1
2108021080-0009
$224.07
ARMATURE×1
2116321163-0791
$232.00
STARTER-ELECTRIC×1
2701227012-0857
$6.73
HOOK×1
3918439184-0019
$110.88
BRACKET-ASSY×1
9215392153-7034
$3.88
BOLT×2
9220092200-7023
$2.80
WASHER×1
92200A92200-7024
$2.80
WASHER×1
130130BA0840
$1.79
BOLT-FLANGED,8X40×2
