FT730V-AS13 4 Stroke Engine FT730V

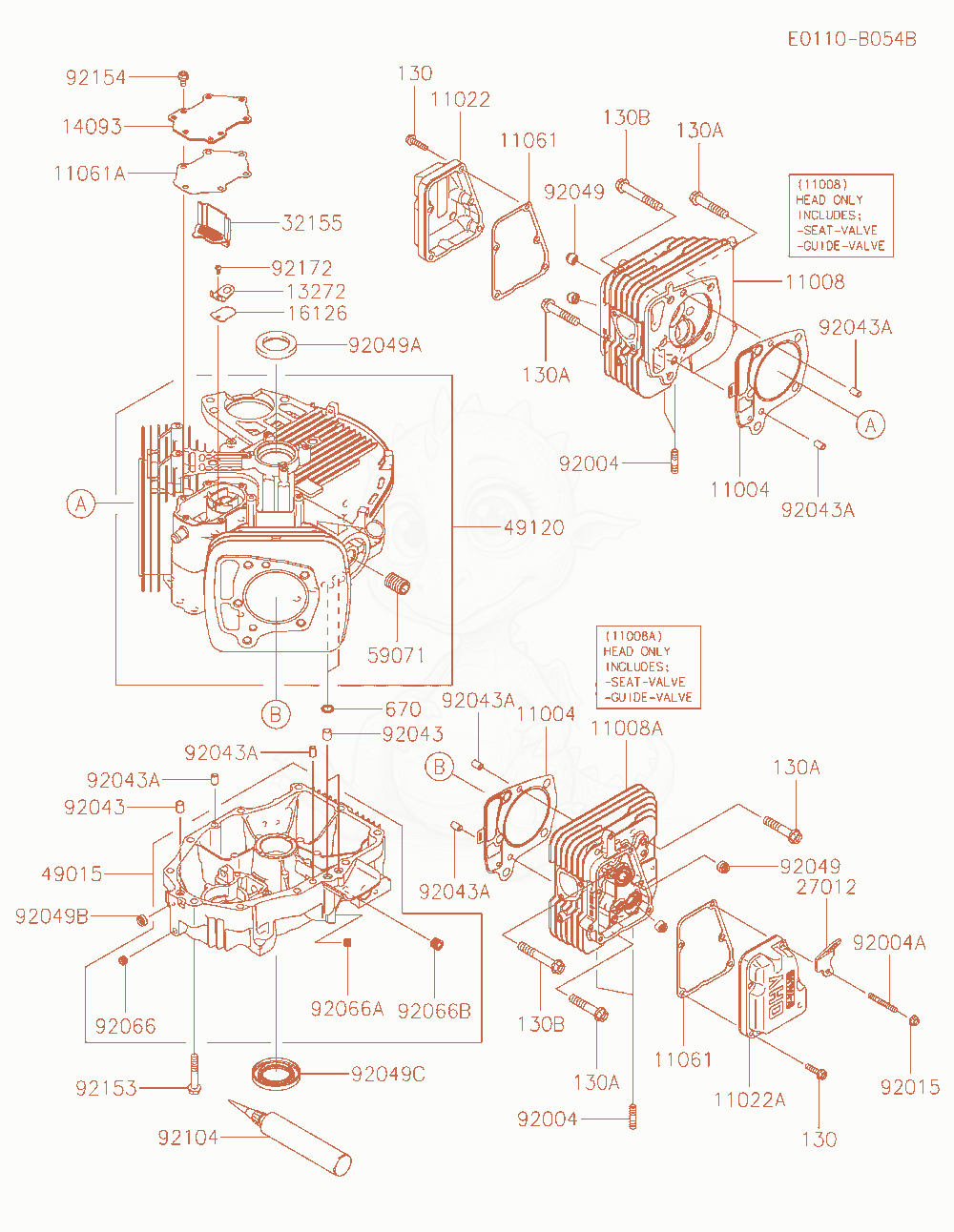

FT730V-AS13 Cylinder / Crankcase Diagram
- GASKET-HEAD×2
- HEAD-COMP-CYLINDER,#1Replaced by 11008-0989×1
- HEAD-COMP-CYLINDER,#2Replaced by 11008-0990×1
- CASE-ROCKER,#1CYL×1
- CASE-ROCKER,#2CYL×1
- GASKET,CASE-ROCKER×2
- GASKET,BREATHER×1
- 1327213272-1374Not stockedPLATE×1
- 1409314093-0455Not stockedCOVER,BREATHER×1
- VALVE,BREATHER×1
- HOOK×1
- PIPE,BREATHERReplaced by 32155-7455×1
- COVER-CRANKCASE×1
- CRANKCASE-COMP×1
- JOINT,OIL FILTER×1
- 9200492004-0823Not stockedSTUD,8X22×4
- STUD,6X30×1
- NUT,FLANGED,6MM×1
- PIN×3
- PIN,6.2X8X14×6
- SEAL-OIL,RVC2 6X11X10.2×4
- SEAL-OIL,SD 35X48X8 R HS×1
- SEAL-OIL,SO 8X14X5 HS×1
- SEAL-OIL,38X62X8MTCLV×1
- PLUG,OIL×1
- PLUG×1
- PLUG×1
- GASKET-LIQUID,TB1217H×AR
- BOLT,8X50×10
- BOLT,6X12×6
- SCREW,4X8Replaced by 92172-1731×1
- BOLT-FLANGED,6X25×9
- BOLT-FLANGED,10X50×4
- BOLT-FLANGED,10X65×6
- O RING,11MM×2
