FT730V-AR30 4 Stroke Engine FT730V

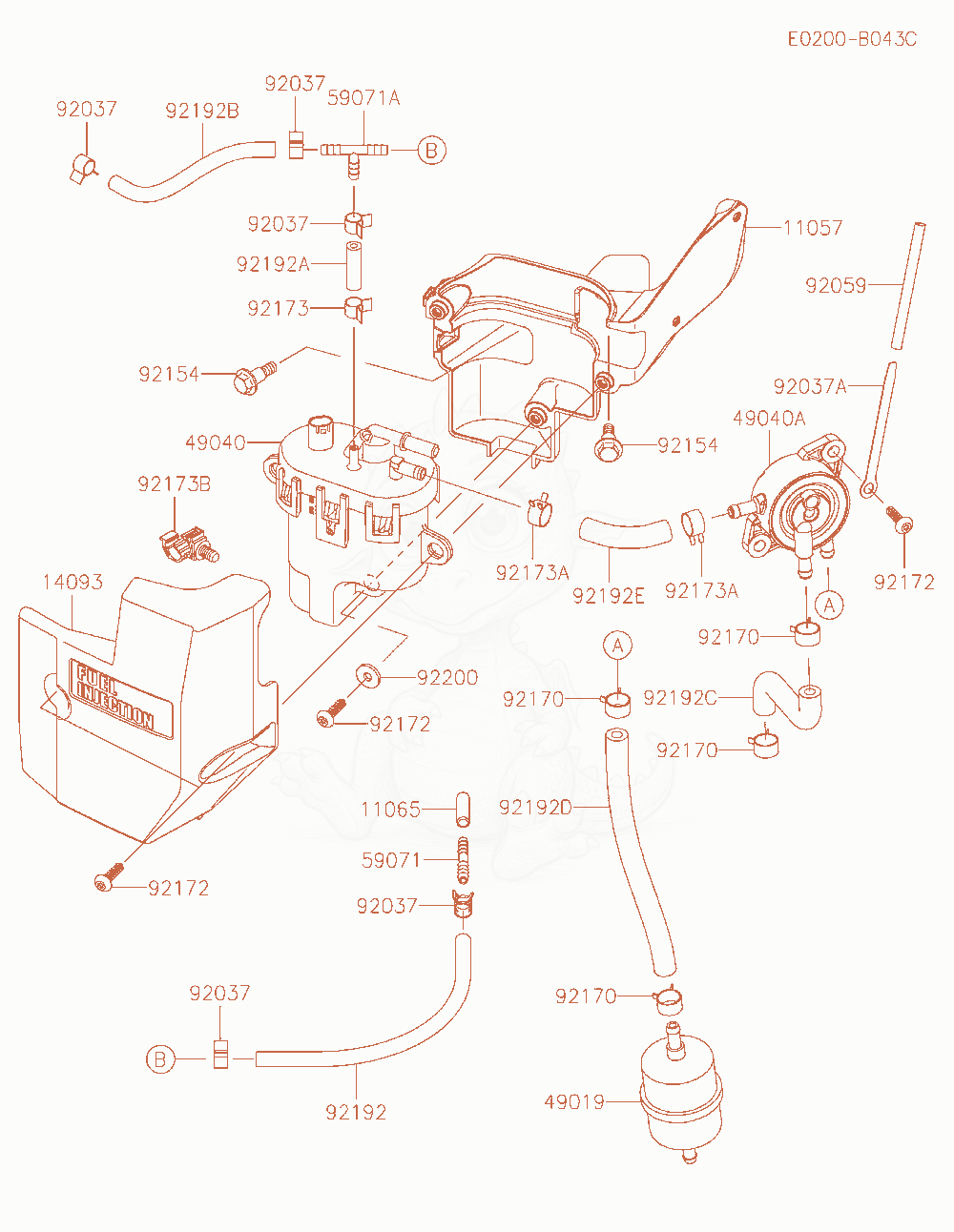

FT730V-AR30 Fuel-Tank / Fuel-Valve Diagram
- BRACKET,PUMP-FUEL×1
- CAPReplaced by 11065-1437×1
- COVER,PUMP-FUELReplaced by 14094-0481×1
- FILTER-FUEL×1
- 4904049040-0736 See ENG 25-02Not stockedPUMP-FUEL - See ENG 25-02×1
- PUMP-FUELReplaced by 49040-0801×1
- JOINT×1
- JOINT×1
- CLAMP,TUBE×5
- CLAMP×1
- TUBE,5X6X75×1
- BOLT×2
- CLAMPReplaced by 92173-1582×4
- SCREW,5X19.6×5
- CLAMP×1
- CLAMP,11.8MM×2
- CLAMP,TUBE-ASSY×1
- TUBE,4.76X8.74X200×1
- TUBE,4.76X8.74X35×1
- TUBE,EVAP×1
- TUBE,PULSE×1
- TUBE,6.35X12.7X140×1
- TUBE,6.35X12.7X80×1
- WASHER,5.3X15X1.2×1
