FS730V-LS00 4 Stroke Engine FS730V

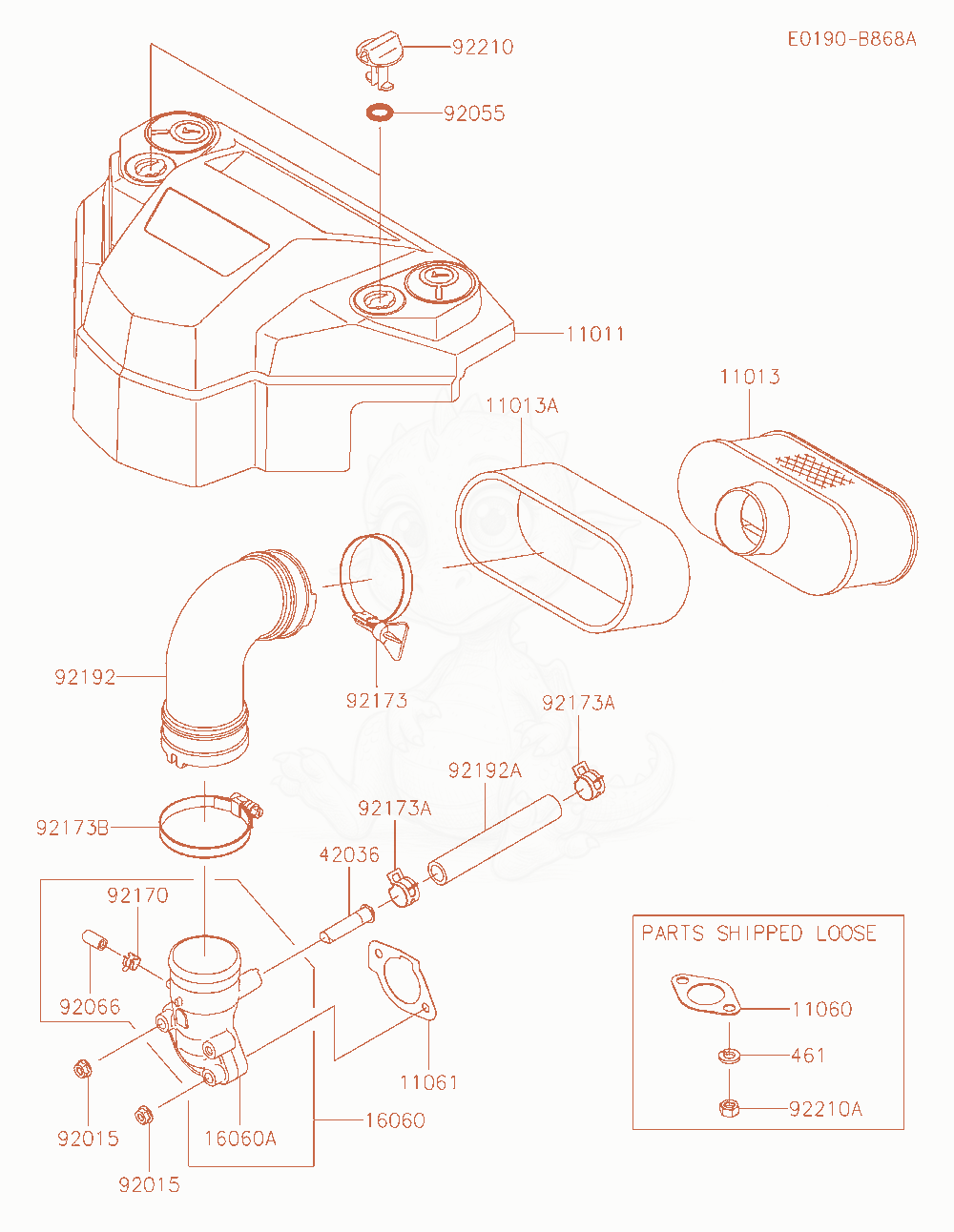

FS730V-LS00 Air-Filter / Muffler Diagram
- CASE-AIR FILTER×1
- 11013110130752Not stockedELEMENT-AIR FILTER×1
- 11013A110137046Not stockedELEMENT-AIR FILTER×1
- GASKET,MUFFLER×2
- GASKET,CARBURETOR/PIPE-INTAKE×1
- PIPE-INTAKE×1
- PIPE-INTAKE×1
- SLEEVE,BREATHER×1
- NUT,FLANGED,6MM×2
- RING-O×2
- PLUG×1
- CLAMP×1
- CLAMP×1
- CLAMP×2
- CLAMP×1
- 9219292192-1459Not stockedTUBE,AIR FILTER×1
- TUBE,12.6X18.6X118×1
- 9221092210-1730Not stockedNUT×2
- NUT,M8×4
- WASHER-SPRING,8MM×4
