FS730V-AS70 4 Stroke Engine FS730V

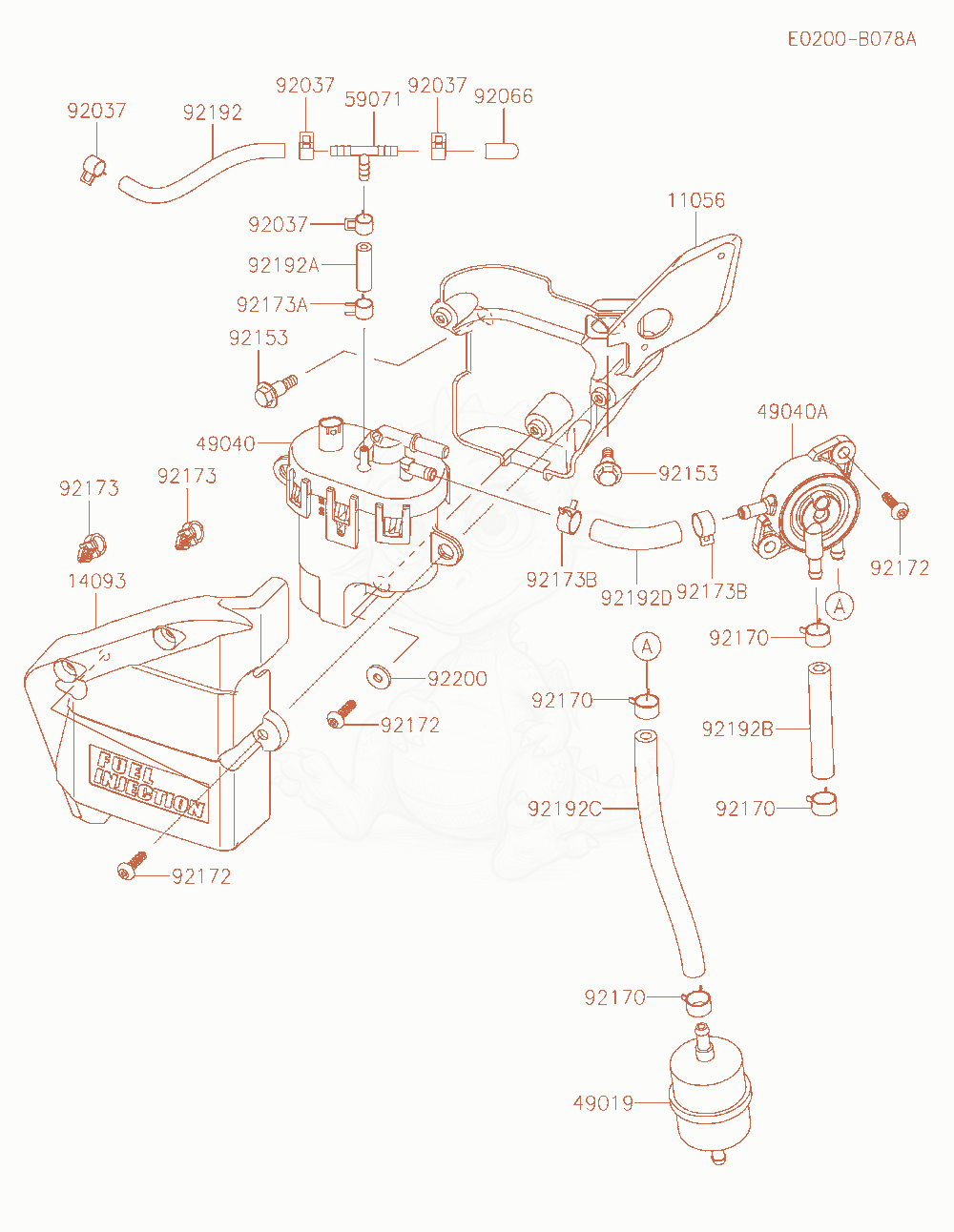

FS730V-AS70 Fuel-Tank / Fuel-Valve Diagram
- BRACKETReplaced by 11058-2406×1
- COVERReplaced by 14093-1457×1
- FILTER-FUEL×1
- 4904049040-0736 See ENG 25-02Not stockedPUMP-FUEL - See ENG 25-02×1
- PUMP-FUELReplaced by 49040-0801×1
- JOINT×1
- CLAMP,TUBE×4
- PLUG×1
- BOLTReplaced by 92154-2823×2
- CLAMPReplaced by 92173-1582×4
- SCREW,5X19.6×5
- CLAMP×2
- CLAMP×1
- CLAMP,11.8MM×2
- TUBE,4.76X8.74X133×1
- TUBE,4.76X8.74X35×1
- TUBE,6.4X12.7X75×1
- TUBE,6.35X12.7X160×1
- TUBE,6.35X12.7X50×1
- 9220092200-0984Not stockedWASHER,5.3X15X1.2×1
