FS691V-BE51 4 Stroke Engine FS691V

FS691V-BE51 Air-Filter / Muffler(Be51) Diagram

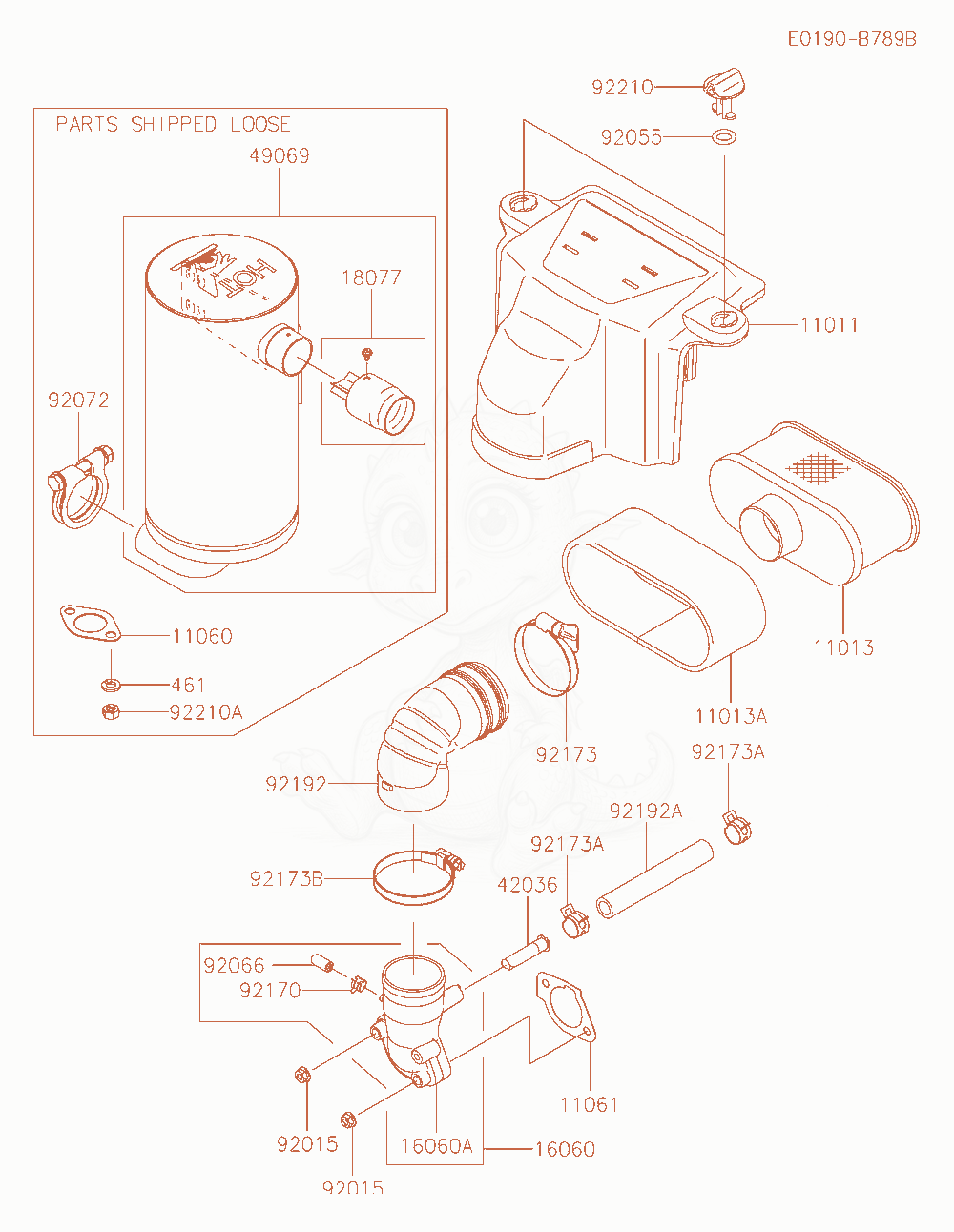

Exploded parts diagram of the Air-Filter / Muffler(Be51) of a Kawasaki FS691V-BE51 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1101111011-0786Not stocked
    CASE-AIR FILTER×1
  • 11013110130752Not stocked
    ELEMENT-AIR FILTER×1
  • 11013A110137046Not stocked
    ELEMENT-AIR FILTER×1
  • 1106011060-7016
    $4.23
    GASKET,MUFFLER×2
  • 1106111061-7086
    $3.77
    GASKET,CARBURETOR/PIPE-INTAKE×1
  • 1606016060-0048Not stocked
    PIPE-INTAKE×1
  • 16060A16060-7038
    $31.36
    PIPE-INTAKEReplaced by 16060-0777×1
  • 1807718077-0713
    $11.35
    ARRESTER-SPARK×1
  • 4203642036-0781
    $1.25
    SLEEVE,BREATHER×1
  • 4906949069-7001
    $287.93
    MUFFLER-ASSY×1
  • 9201592015-1367
    $3.67
    NUT,FLANGED,6MM×2
  • 9205592055-7025
    $1.24
    RING-O×2
  • 9206692066-0095
    $4.79
    PLUG×1
  • 9207292072-7013
    $8.38
    BAND×1
  • 9217092170-2042
    $1.18
    CLAMP×1
  • 9217392173-1001
    $4.31
    CLAMP×1
  • 92173A92173-7003
    $1.93
    CLAMP×2
  • 92173B92173-7010
    $7.54
    CLAMP×1
  • 9219292192-2687Not stocked
    TUBE×1
  • 92192A92192-7146
    $1.75
    TUBE,12.6X18.6X118×1
  • 9221092210-1730Not stocked
    NUT×2
  • 92210A92210-7027
    $1.76
    NUT,M8×4
  • 461461DA0800
    $0.29
    WASHER-SPRING,8MM×4
