FS691V-AS20 4 Stroke Engine FS691V

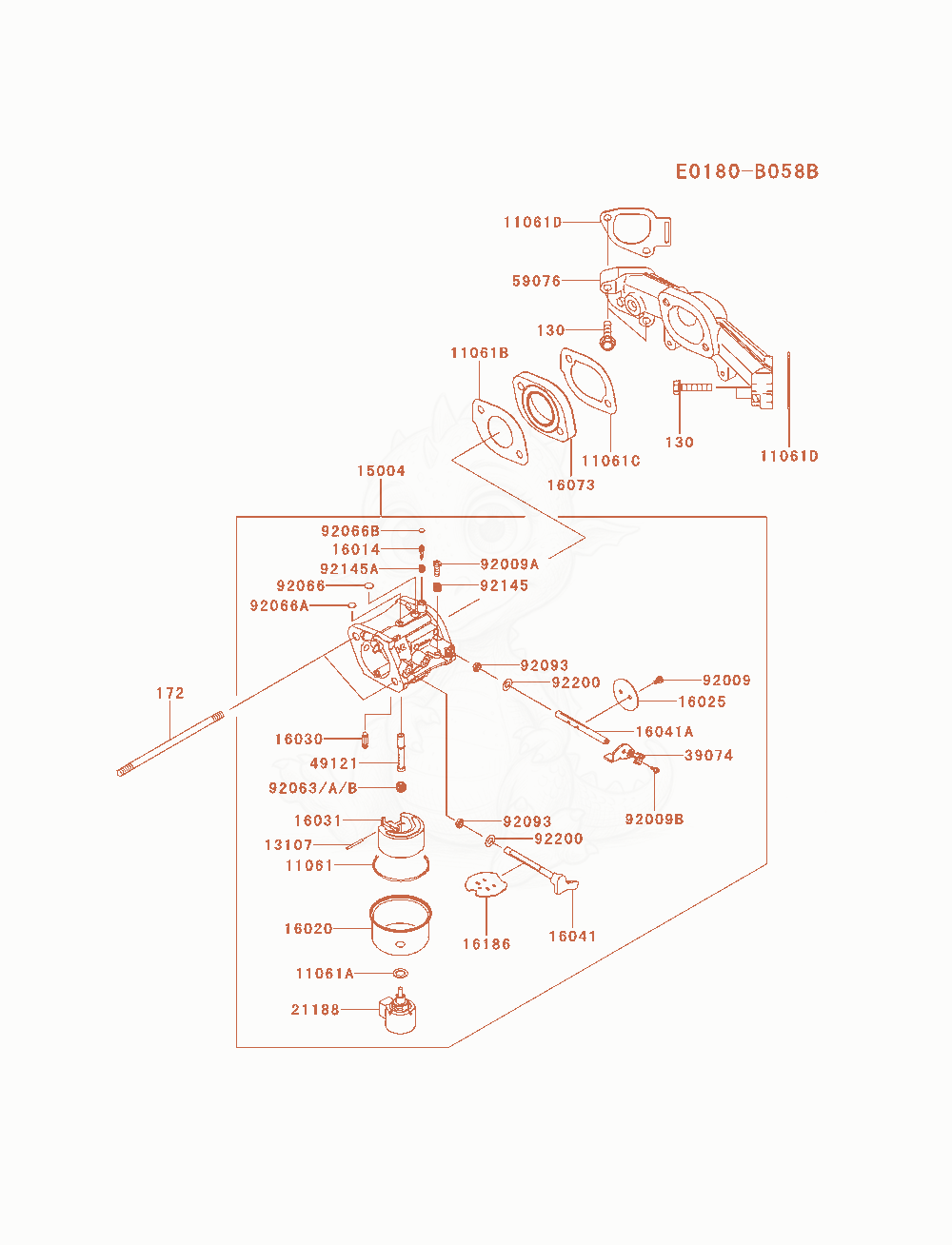

FS691V-AS20 Carburetor Diagram
- 1106111061-7009Not stockedGASKET,CHAMBER×1
- 11061A11061-7010Not stockedGASKET,SCREW×1
- 11061B11061-7087Not stockedGASKET,INSULATOR×1
- 11061C11061-7088Not stockedGASKET,INSULATOR/MANIFOLD×1
- 11061D11061-7093Not stockedGASKET,MANIFOLD×2
- 1310713107-7018Not stockedSHAFT×1
- 1500415004-0985Not stockedCARBURETOR-ASSY×1
- 1601416014-7010Not stockedSCREW-PILOT AIR×1
- 1602016020-7003Not stockedCHAMBER-FLOAT×1
- 1602516025-7017Not stockedVALVE-THROTTLE×1
- 1603016030-7003Not stockedVALVE-FLOAT×1
- 1603116031-7002Not stockedFLOAT×1
- 1604116041-0007Not stockedSHAFT-CARBURETOR,CHOKE×1
- 16041A16041-7051Not stockedSHAFT-CARBURETOR,THROTTLE×1
- 1607316073-7013Not stockedINSULATOR×1
- 1618616186-7006Not stockedVALVE-ASSY-CHOKE×1
- 2118821188-7002Not stockedSOLENOID×1
- 3907439074-7001Not stockedLEVER-ASSY-THROTTLE×1
- 4912149121-7018Not stockedNOZZLE-MAIN×1
- 5907659076-0009Not stockedMANIFOLD-INTAKE×1
- 9200992009-2083Not stockedSCREW×2
- 92009A92009-2349Not stockedSCREW×1
- 92009B92009-2402Not stockedSCREW×1
- 9206392063-7141Not stockedJET-MAIN,#122, 3,281 to 6,560FT ELEVATION×AR
- 92063A92063-7142Not stockedJET-MAIN,#124, SEA-LEVEL TO 3,280FT ELEVATION×1
- 92063B92063-7149Not stockedJET-MAIN,#120, ABOVE 6,560FT ELEVATION×AR
- 9206692066-2204Not stockedPLUG×1
- 92066A92066-2244Not stockedPLUG×1
- 92066B92066-7032Not stockedPLUG×1
- 9209392093-0593Not stockedSEAL×2
- 9214592145-1579Not stockedSPRING×1
- 92145A92145-2122Not stockedSPRING×1
- 9220092200-0848Not stockedWASHER×2
- 130130AA0630Not stockedBOLT-FLANGED,6X30×4
- 172172BA06115Not stockedBOLT-STUD,6X115×2
