FS691V-AS06 4 Stroke Engine FS691V

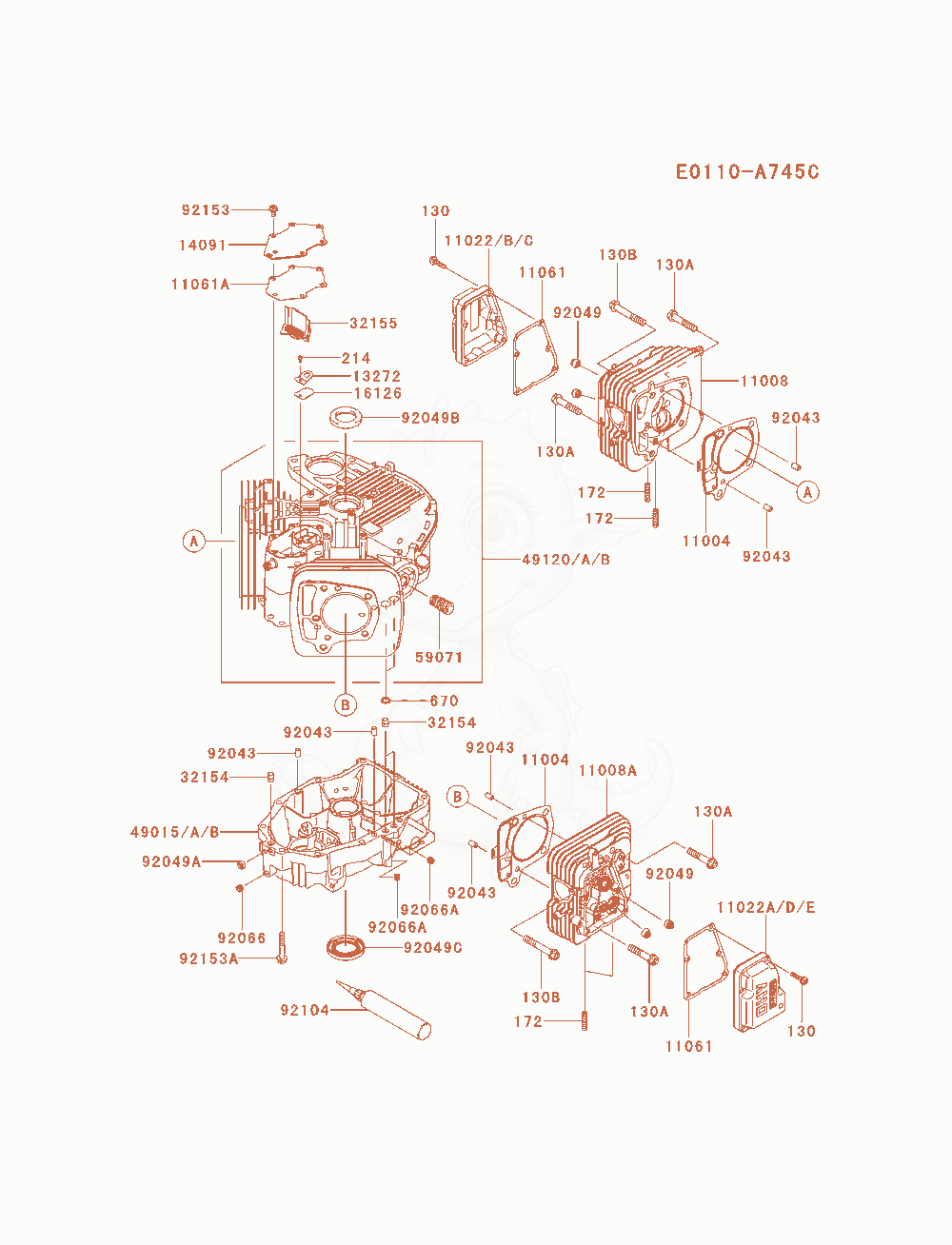

FS691V-AS06 Cylinder / Crankcase Diagram
- GASKET-HEADReplaced by 11004-0762×2
- 1100811008-0861Not stockedHEAD-COMP-CYLINDER,#1×1
- 11008A11008-0845Not stockedHEAD-COMP-CYLINDER,#2×1
- CASE-ROCKER,#1×1
- CASE-ROCKER,#2×1
- GASKET,CASE-ROCKERReplaced by 11061-1285×2
- GASKET,BREATHER×1
- PLATE,BREATHERReplaced by 13272-3997×1
- COVER,BREATHER×1
- VALVE,BREATHER×1
- PIPEReplaced by 92043-0858×3
- 3215532155-7003Not stockedPIPE,BREATHER×1
- COVER-CRANKCASE×0
- COVER-CRANKCASE×1
- CRANKCASE-COMP×0
- CRANKCASE-COMP×1
- JOINT×1
- PIN,6.2X8X14×6
- SEAL-OIL,RVC2 6X11X10.2Replaced by 92049-0862×4
- 92049A92049-7005Not stockedSEAL-OIL,SO 8X14X5 HS×1
- SEAL-OIL,SD 35X48X8 R HS×1
- SEAL-OIL,38X62X8MTCLV×1
- 9206692066-7023Not stockedPLUG×1
- 92066A92066-7026Not stockedPLUG×2
- GASKET-LIQUID,TB1217HReplaced by 92104-0007×AR
- 9215392153-7043Not stockedBOLT,6X12×6
- BOLT,8X50×10
- BOLT-FLANGED,6X25×10
- BOLT-FLANGED,10X50×4
- BOLT-FLANGED,10X65×6
- BOLT-STUD,8X18×4
- SCREW-PAN+-,4X8×1
- O RING,11MM×2
