FS691V-AS04 4 Stroke Engine FS691V

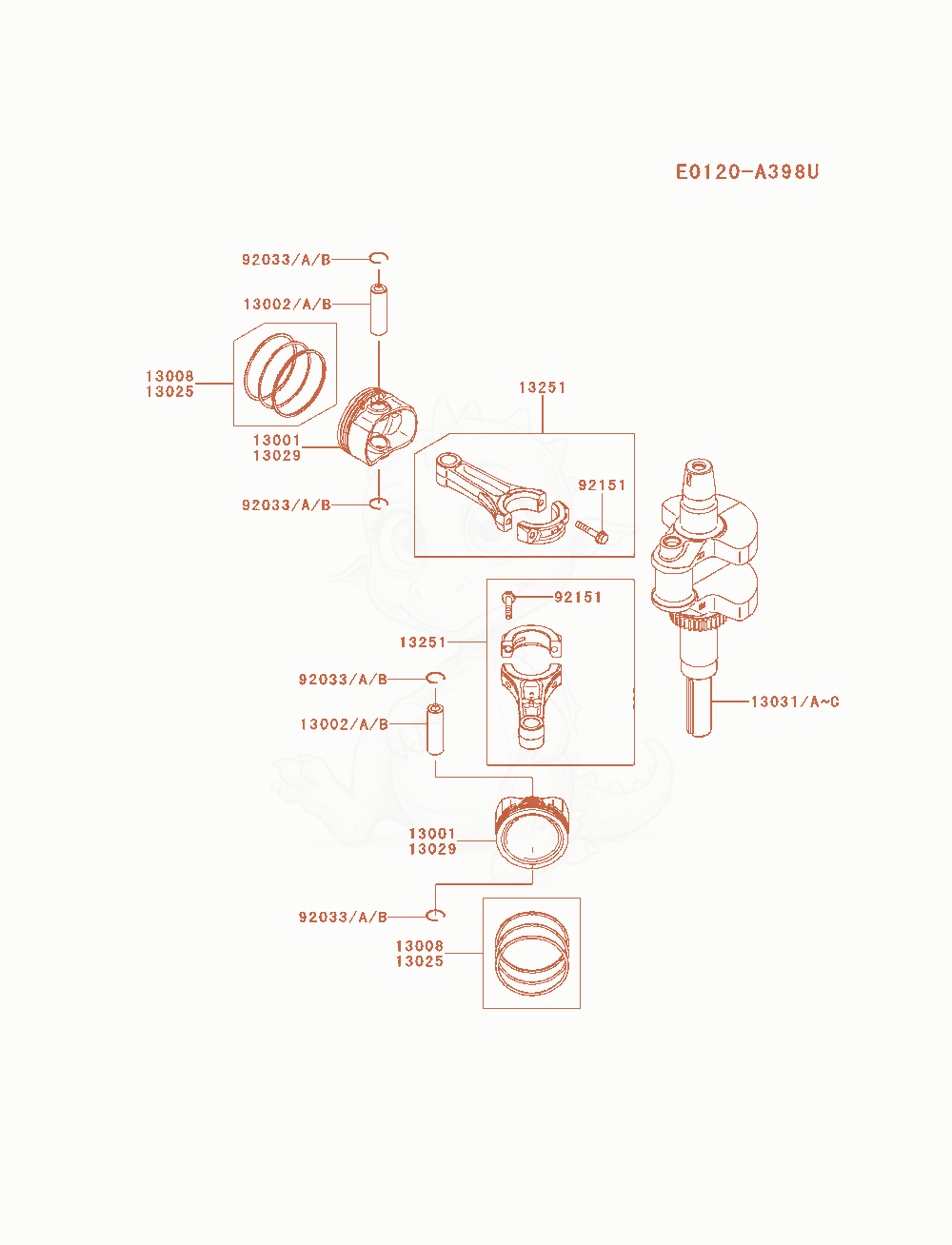

FS691V-AS04 Piston / Crankshaft Diagram
- PISTON-ENGINEReplaced by 13001-6004×2
- PIN-PISTON×2
- PIN-PISTON×0
- 1300813008-7005Not stockedRING-SET-PISTON×2
- RING-SET-PISTON L,0.5×AR
- PISTON-ENGINE L,0.5×AR
- CRANKSHAFT-COMP×1
- ROD-ASSY-CONNECTING×2
- 9203392033-0755Not stockedRING-SNAP×0
- 92033B92033-0755Not stockedRING-SNAP×4
- 9215192151-7017Not stockedBOLT,6X35×4
