FS651V-AS21 4 Stroke Engine FS651V

FS651V-AS21 Piston / Crankshaft Diagram

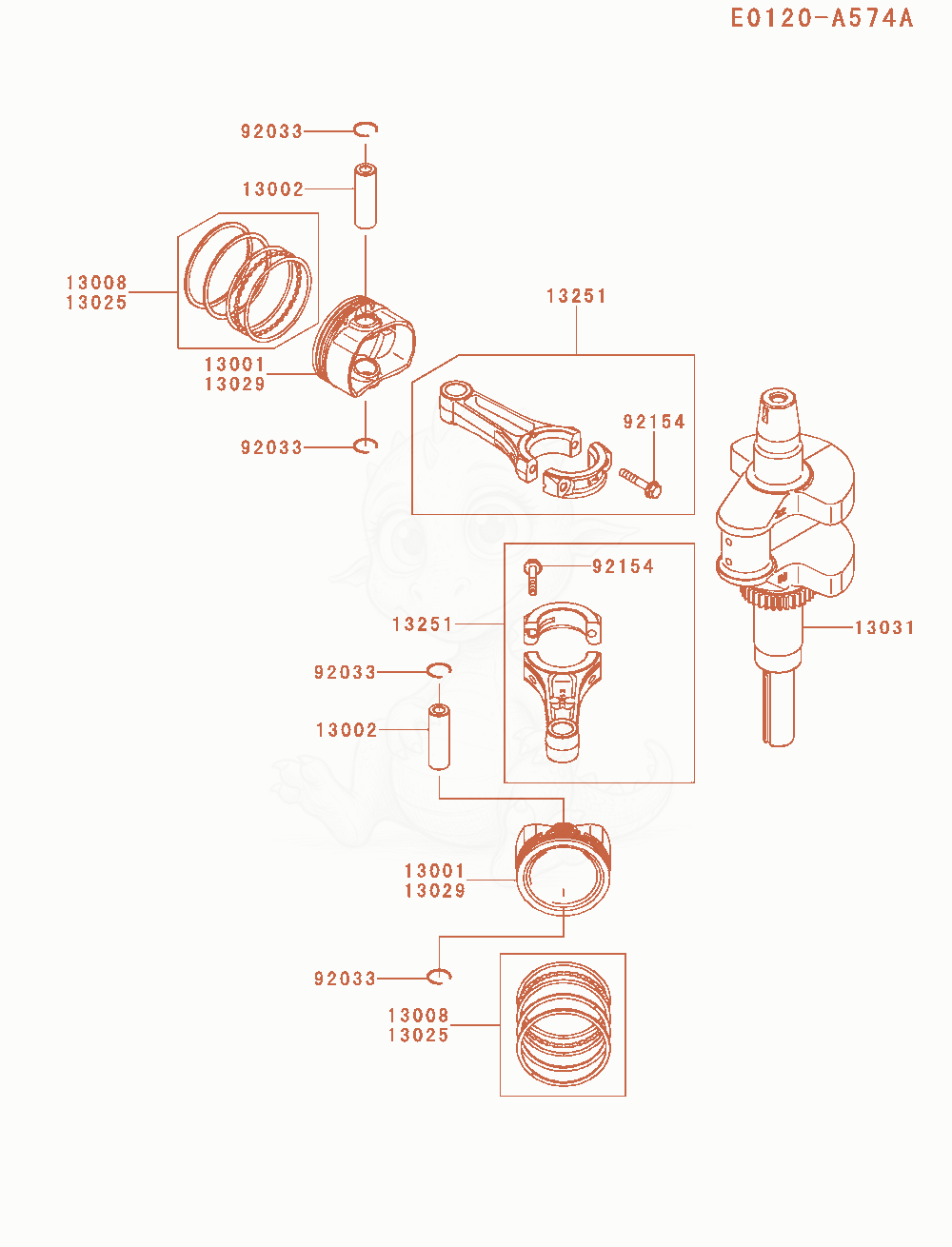

Exploded parts diagram of the Piston / Crankshaft of a Kawasaki FS651V-AS21 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1300113001-7027Not stocked
    PISTON-ENGINE× 2
  • 1300213002-0704
    $13.41
    PIN-PISTON× 2
  • 1300813008-0569Not stocked
    RING-SET-PISTON× 2
  • 1302513025-7009
    $28.12
    RING-SET-PISTON L,0.5×AR
  • 1302913029-7010
    $64.69
    PISTON-ENGINE L,0.5×AR
  • 1303113031-0822
    $252.51
    CRANKSHAFT-COMP× 1
  • 1325113251-0719
    $48.97
    ROD-ASSY-CONNECTING× 2
  • 9203392033-0790
    $0.68
    RING-SNAP× 4
  • 9215492154-2842
    $1.27
    BOLT,6X35× 4
