FS651V-AS14 4 Stroke Engine FS651V

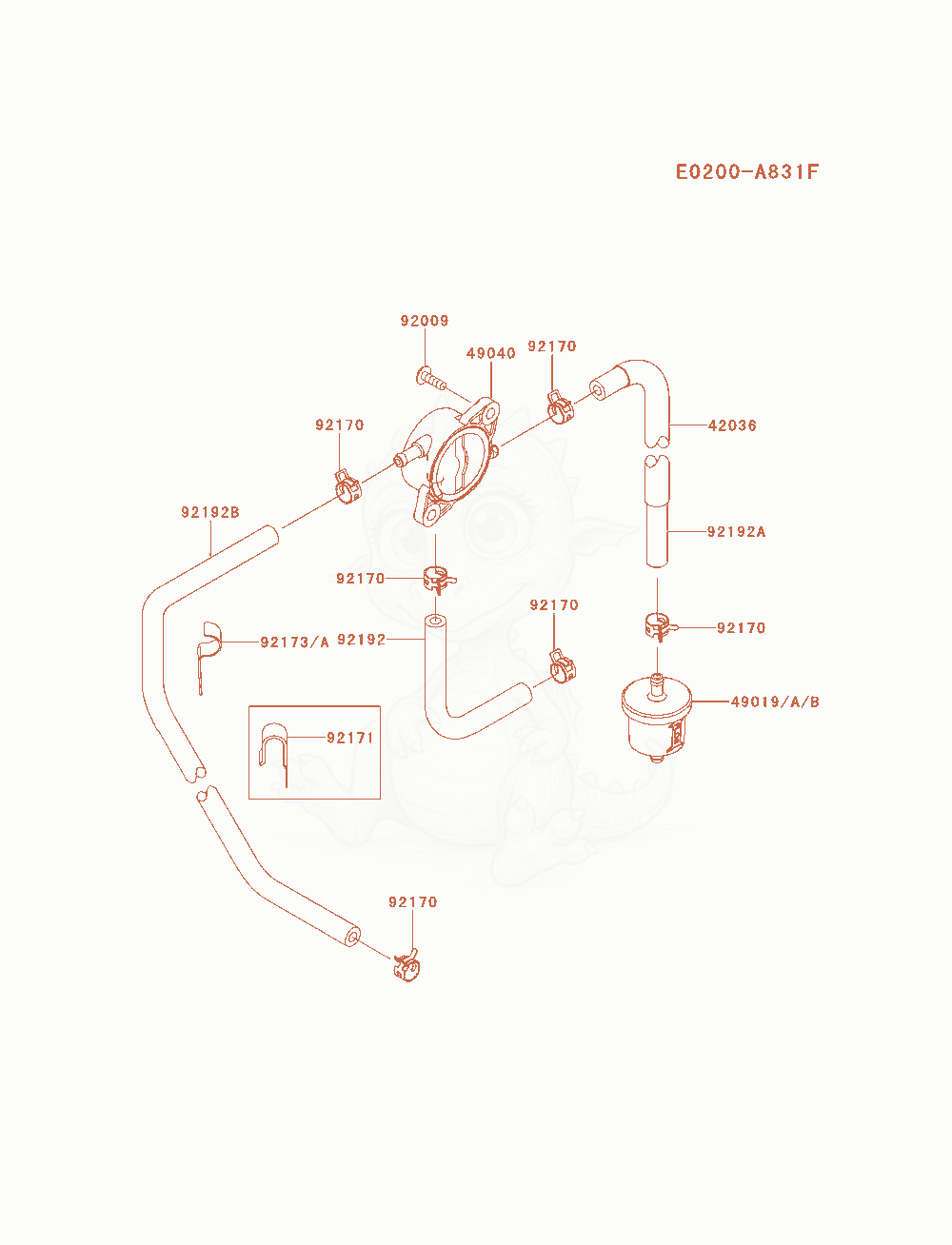

FS651V-AS14 Fuel-Tank / Fuel-Valve Diagram

Exploded parts diagram of the Fuel-Tank / Fuel-Valve of a Kawasaki FS651V-AS14 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 4203642036-7015Price
    SLEEVE×1
  • 49019A49019-0027Price
    FILTER-FUELReplaced by 49019-0031×1
  • 49019B49019-0707Not stocked
    FILTER-FUEL×0
  • 4904049040-7008Not stocked
    PUMP-FUEL×1
  • 9200992009-2303Price
    SCREWReplaced by 92172-1608×2
  • 9217092170-2009Price
    CLAMPReplaced by 92173-1582×6
  • 9217192171-7008Not stocked
    CLAMP×0
  • 92173A92173-1000Not stocked
    CLAMP×1
  • 9219292192-7148Price
    TUBE,6.4X12.7X150×1
  • 92192A92192-7172Not stocked
    TUBE,6.35X12.7X185×1
  • 92192B92192-1555Price
    TUBE,6.35X12.7X390Replaced by 92192-2392×1
