FS651V-AS02 4 Stroke Engine FS651V

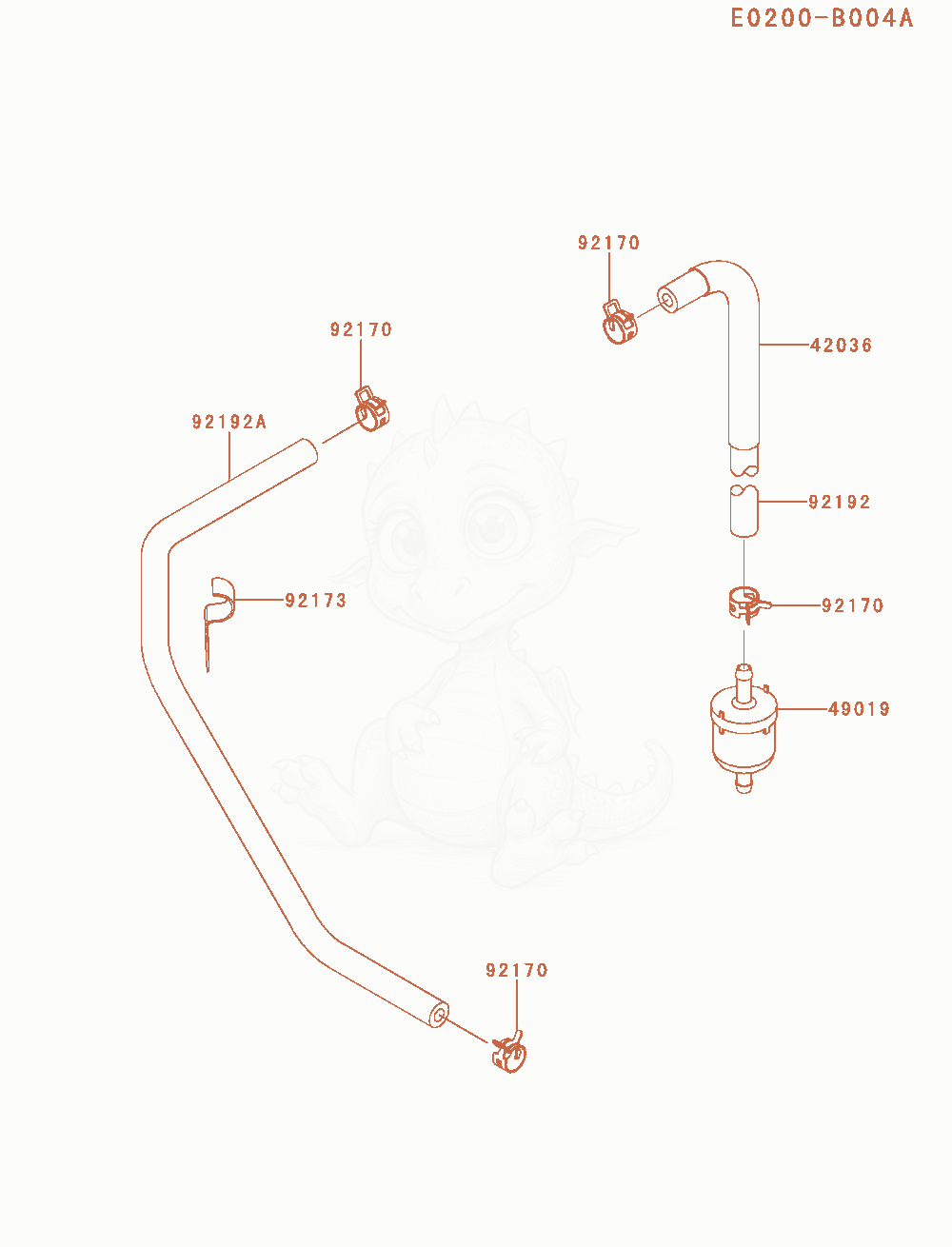

FS651V-AS02 Fuel-Tank / Fuel-Valve Diagram

Exploded parts diagram of the Fuel-Tank / Fuel-Valve of a Kawasaki FS651V-AS02 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 4203642036-7015
    $3.45
    SLEEVE×1
  • 4901949019-0027
    $8.39
    FILTER-FUELReplaced by 49019-0031×1
  • 9217092170-2009
    $2.03
    CLAMPReplaced by 92173-1582×4
  • 9217392173-1000Not stocked
    CLAMP×1
  • 9219292192-1551
    $2.39
    TUBE,6.35X12.7X185Replaced by 92192-2388×1
  • 92192A92192-1555
    $5.59
    TUBE,6.35X12.7X390Replaced by 92192-2392×1
