FS651V-AS00 4 Stroke Engine FS651V

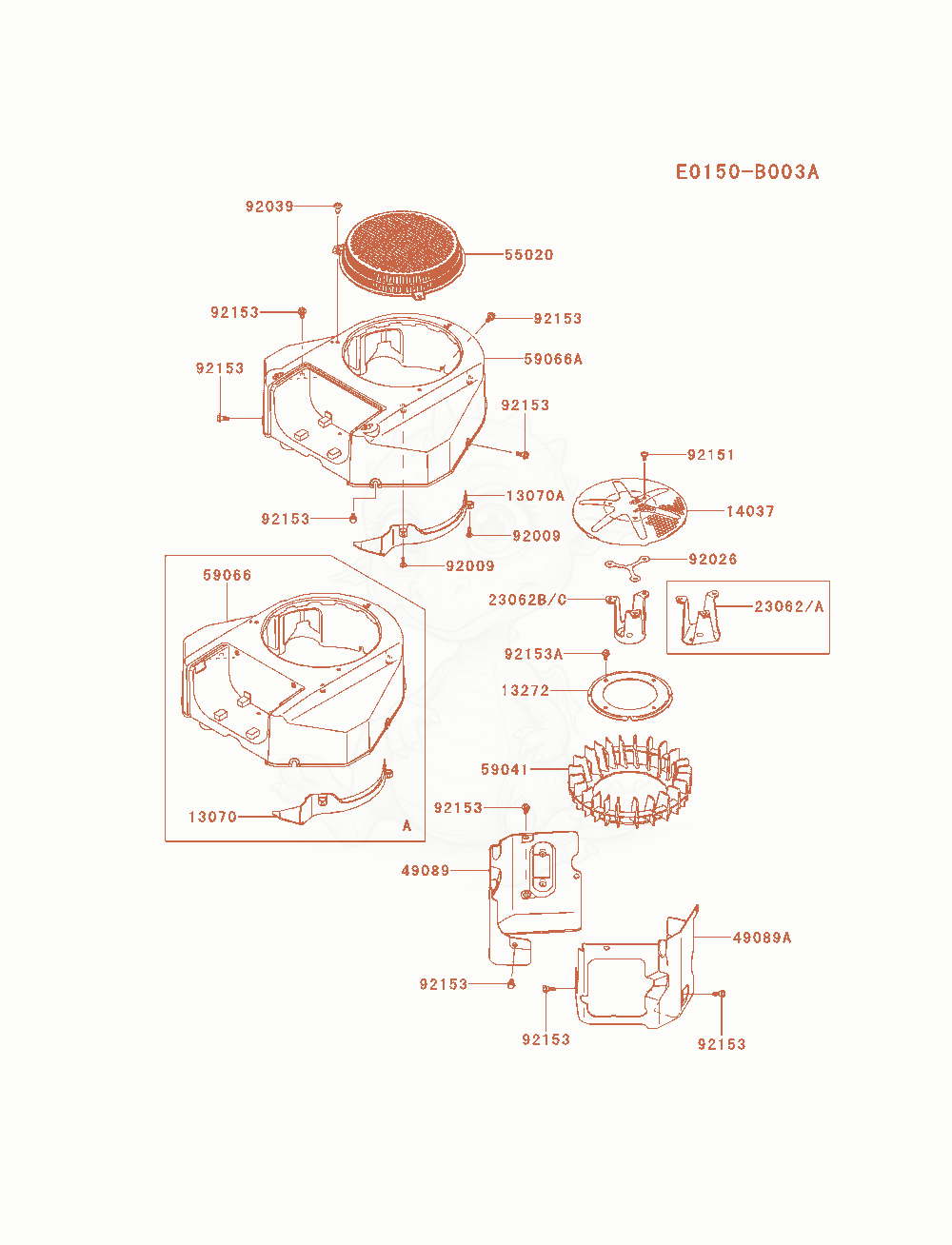

FS651V-AS00 Cooling-Equipment Diagram

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FS651V-AS00 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1307013070-7018Price
    GUIDE×1
  • 1327213272-7006Price
    PLATE,FANReplaced by 13272-1488×1
  • 1403714037-7008-9HPrice
    SCREEN×1
  • 2306223062-7005Price
    BRACKET-COMP×1
  • 4908949089-7077Price
    SHROUD-ENGINEReplaced by 49089-0991×1
  • 49089A49089-7078Price
    SHROUD-ENGINEReplaced by 49089-0992×1
  • 5502055020-7015Price
    GUARD,SCREENReplaced by 99999-0397×1
  • 5904159041-7014Price
    FANReplaced by 59041-0034×1
  • 5906659066-7045Not stocked
    HOUSING-FAN×1
  • 9200992009-2303Price
    SCREWReplaced by 92172-1608×2
  • 9202692026-7007Price
    SPACER×1
  • 9203992039-0751Price
    RIVET,GUARD×3
  • 9215192151-7012Not stocked
    BOLT,6X12×3
  • 9215392153-7007Price
    BOLT,FLANGED,6X16×9
  • 92153A92153-7043Not stocked
    BOLT,6X12×4
