FS600V-AS23 4 Stroke Engine FS600V

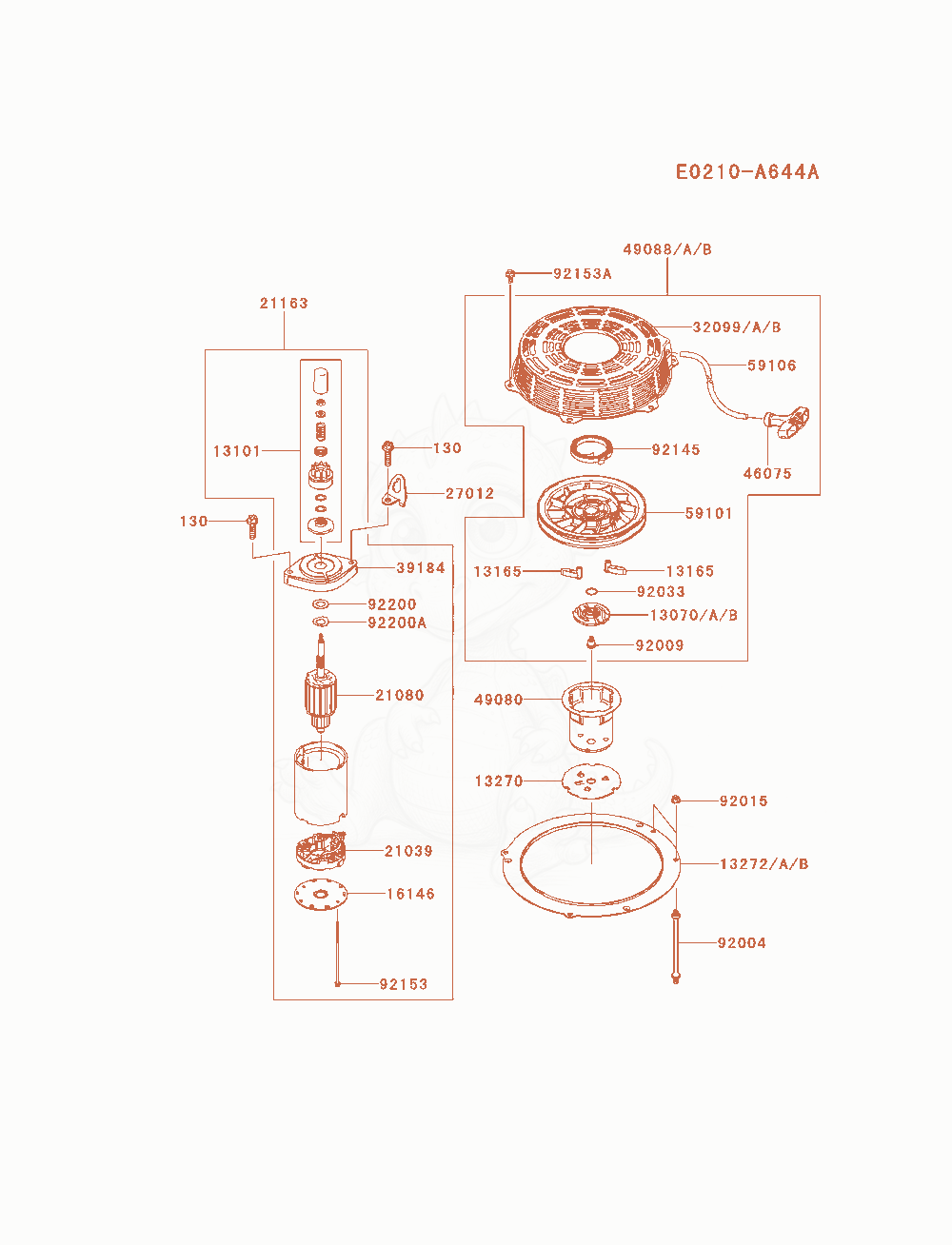

FS600V-AS23 Starter Diagram
- GUIDE×1
- 13070B13070-2102Not stockedGUIDE×0
- GEAR-ASSY×1
- PAWL,RECOIL STARTER×2
- PLATE×1
- PLATE×1
- PLATE×0
- COVER-ASSY×1
- BRUSH×1
- ARMATURE×1
- STARTER-ELECTRICReplaced by 21163-0791×1
- HOOK×1
- 32099A32099-0732Not stockedCASE×1
- 32099B32099-7005Not stockedCASE,STARTER-RECOIL×0
- BRACKET-ASSY×1
- GRIP,RECOIL STARTER×1
- PULLEY-STARTING×1
- STARTER-RECOILReplaced by 49088-0781×1
- STARTER-RECOILReplaced by 49088-0781×0
- REEL,RECOIL STARTERReplaced by 59101-0018×1
- ROPE,5X1500×1
- STUD,6X121.3×2
- SCREW×1
- NUT,FLANGED,6MM×4
- RING-SNAP×1
- SPRING×1
- BOLT×2
- 92153A92153-7043Not stockedBOLT,6X12×3
- WASHER×1
- WASHER×1
- BOLT-FLANGED,8X30×2
