FS600V-AS05 4 Stroke Engine FS600V

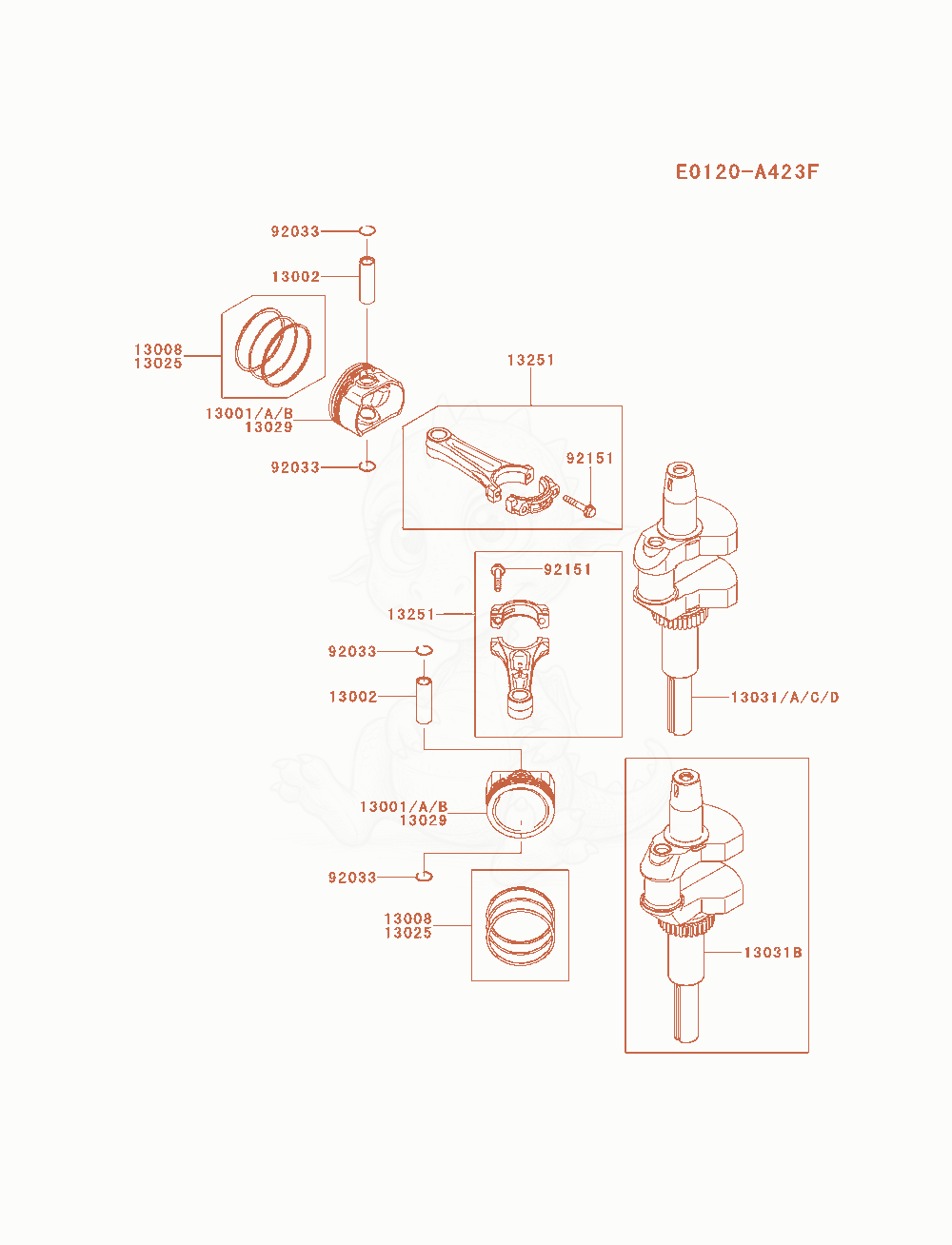

FS600V-AS05 Piston / Crankshaft Diagram
- PISTON-ENGINEReplaced by 13001-7031×0
- PISTON-ENGINE×2
- PIN-PISTON×2
- 1300813008-7006Not stockedRING-SET-PISTON×2
- 1302513025-7010Not stockedRING-SET-PISTON L,0.50×AR
- PISTON-ENGINE L,0.50×AR
- CRANKSHAFT-COMP×1
- 13031B13031-7090Not stockedCRANKSHAFT-COMP×0
- 13031D13031-7090Not stockedCRANKSHAFT-COMP×0
- 1325113251-7021Not stockedROD-ASSY-CONNECTING×2
- 9203392033-7002Not stockedRING-SNAP×4
- 9215192151-7017Not stockedBOLT,6X35×4
