FS600V-AS04 4 Stroke Engine FS600V

FS600V-AS04 Starter Diagram

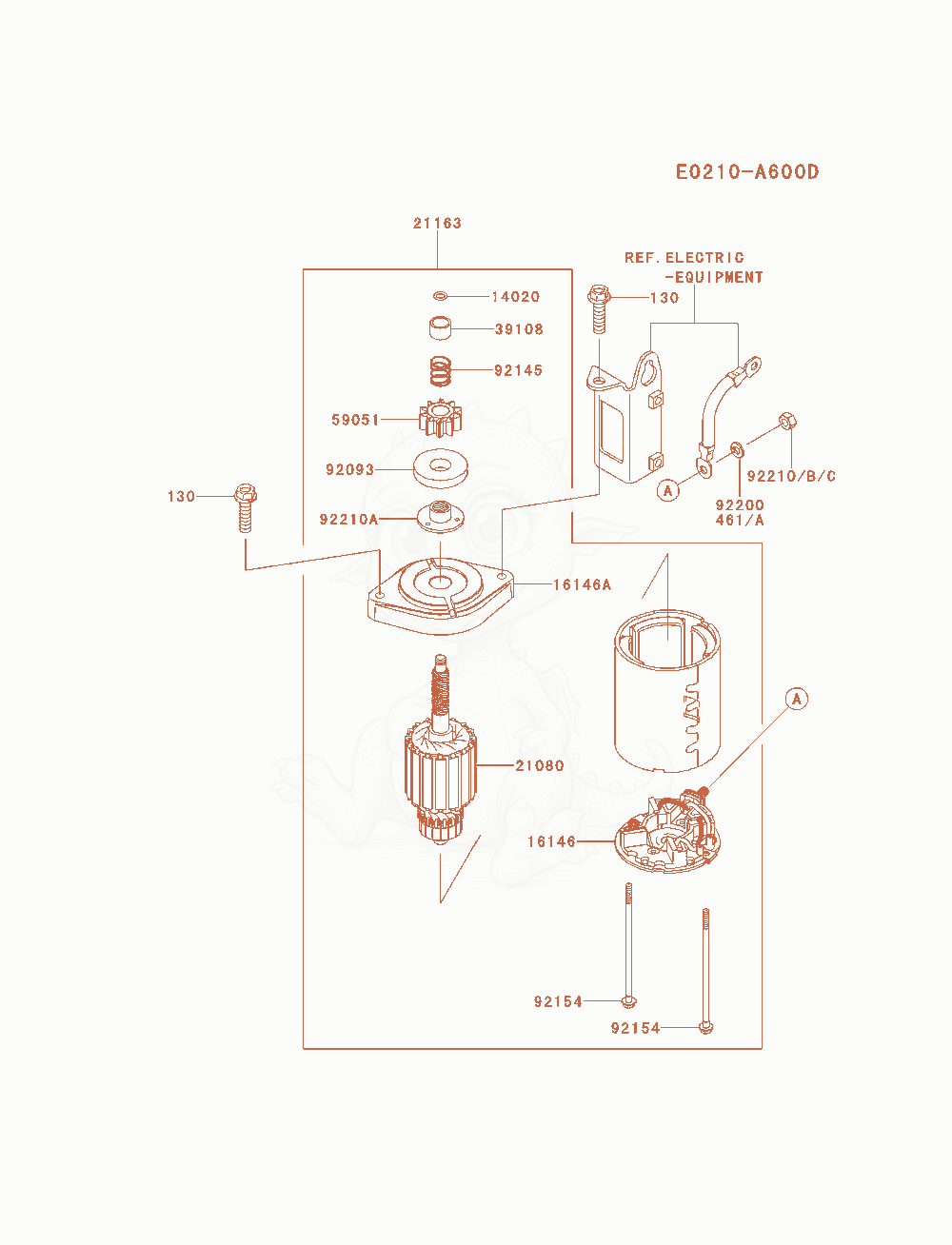

Exploded parts diagram of the Starter of a Kawasaki FS600V-AS04 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

92210C92210-7034
$0.42
NUT×1
92210E99999-0309
$1.51
KIT,STOPPER & NUT×1
92210G99999-0309
$1.51
KIT,STOPPER & NUT×0
92210H92210-7040
$4.16
NUT,5/16-24×1
130130BA0830
$3.32
BOLT-FLANGED,8X30×2
461461DA0600
$0.58
WASHER-SPRING,6MM×1
