FS541V-AS27 4 Stroke Engine FS541V

FS541V-AS27 Cooling-Equipment Diagram

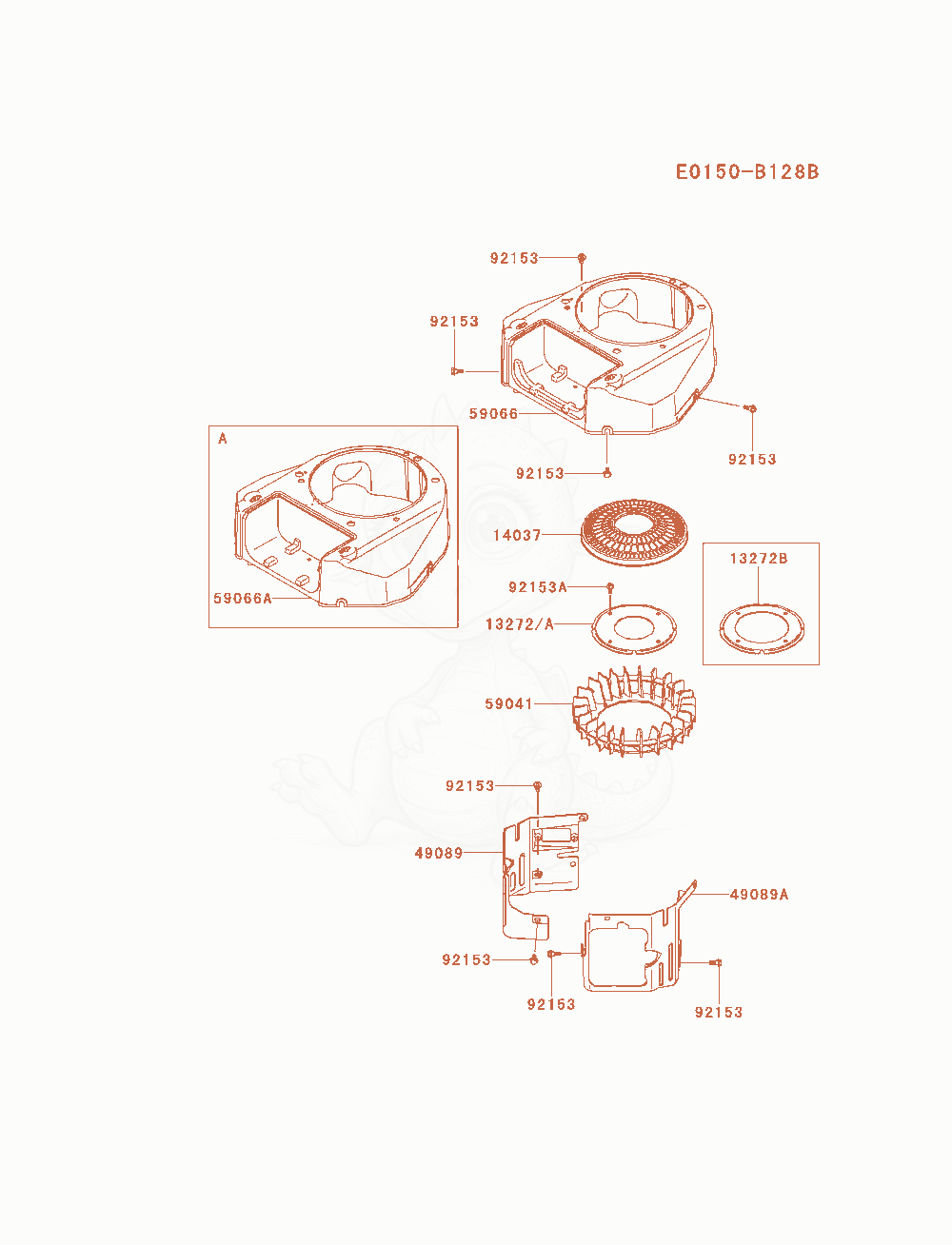

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FS541V-AS27 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 13272A13272-1488
    $9.62
    PLATE×1
  • 13272B13272-7006
    $9.56
    PLATE,FANReplaced by 13272-1488×0
  • 1403714037-7032-9H
    $31.57
    SCREEN×1
  • 4908949089-7083
    $19.26
    SHROUD-ENGINEReplaced by 49089-0987×1
  • 49089A49089-7084
    $19.70
    SHROUD-ENGINEReplaced by 49089-0988×1
  • 5904159041-0008Not stocked
    FAN×1
  • 59066A59066-0045
    $123.75
    HOUSING-FAN×1
  • 9215392153-7007
    $3.78
    BOLT,FLANGED,6X16×8
  • 92153A92153-7043Not stocked
    BOLT,6X12×4
