FS481V-AS19 4 Stroke Engine FS481V

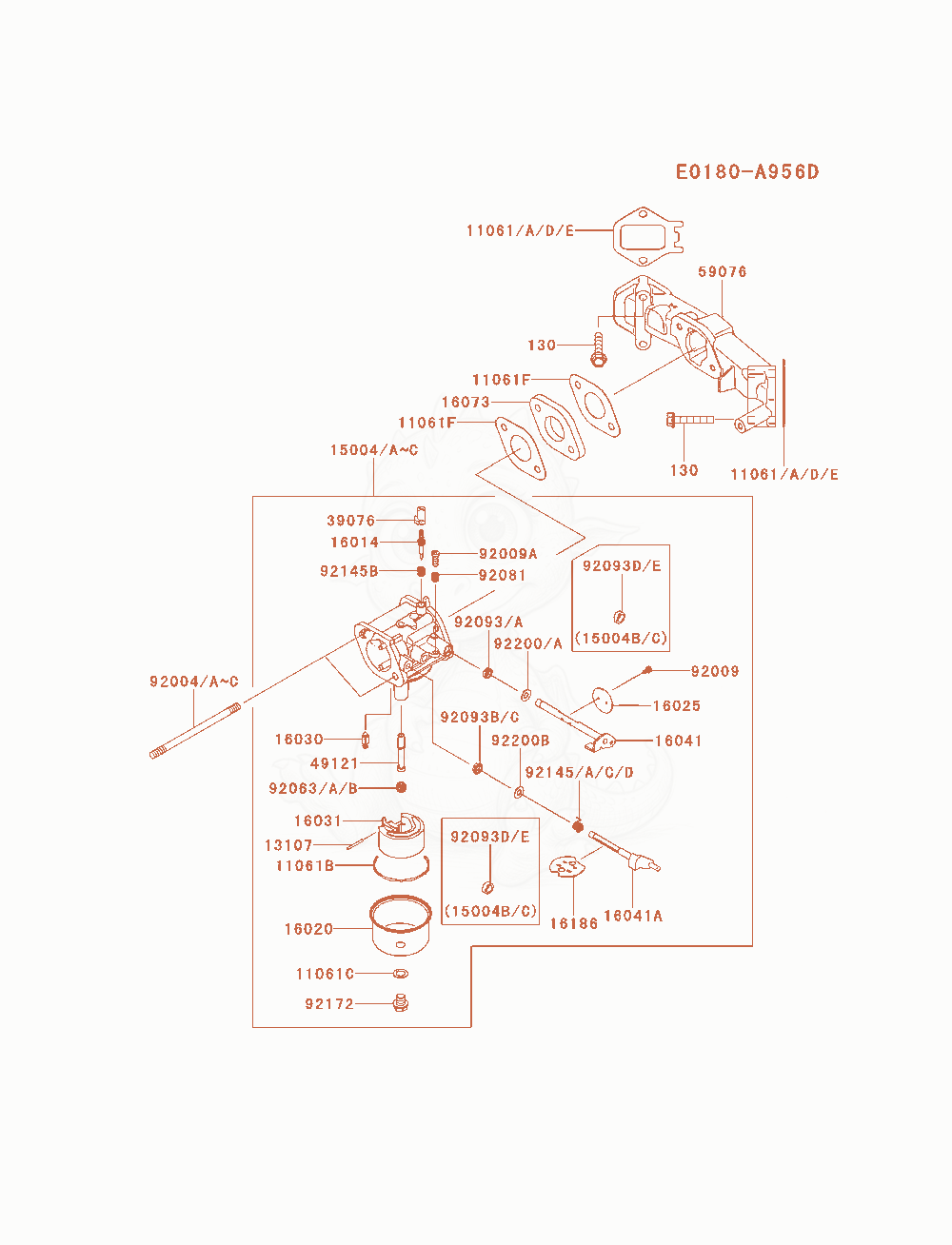

FS481V-AS19 Carburetor Diagram
- GASKET,CHAMBER×1
- GASKET,SCREWReplaced by 11061-1573×1
- GASKET,MANIFOLDReplaced by 11061-0877×2
- GASKET,INSULATOR×2
- SHAFT×1
- CARBURETOR-ASSYReplaced by 15004-1078×1
- SCREW-PILOT AIR×1
- CHAMBER-FLOAT×1
- VALVE-THROTTLE×1
- VALVE-FLOAT×1
- FLOAT×1
- SHAFT-CARBURETOR,THROTTLE×1
- SHAFT-CARBURETOR,CHOKE×1
- INSULATORReplaced by 16073-0876×1
- VALVE-ASSY-CHOKE×1
- LIMITER×1
- NOZZLE-MAIN×1
- MANIFOLD-INTAKE×1
- 92004B92004-7027Not stockedSTUD,6X95×2
- SCREW×2
- SCREW×1
- JET-MAIN,#100,3280FT×AR
- JET-MAIN,#098,6560FT×AR
- JET-MAIN,#102×1
- SPRING×1
- SEAL×2
