FS481V-AS10 4 Stroke Engine FS481V

FS481V-AS10 Cooling-Equipment Diagram

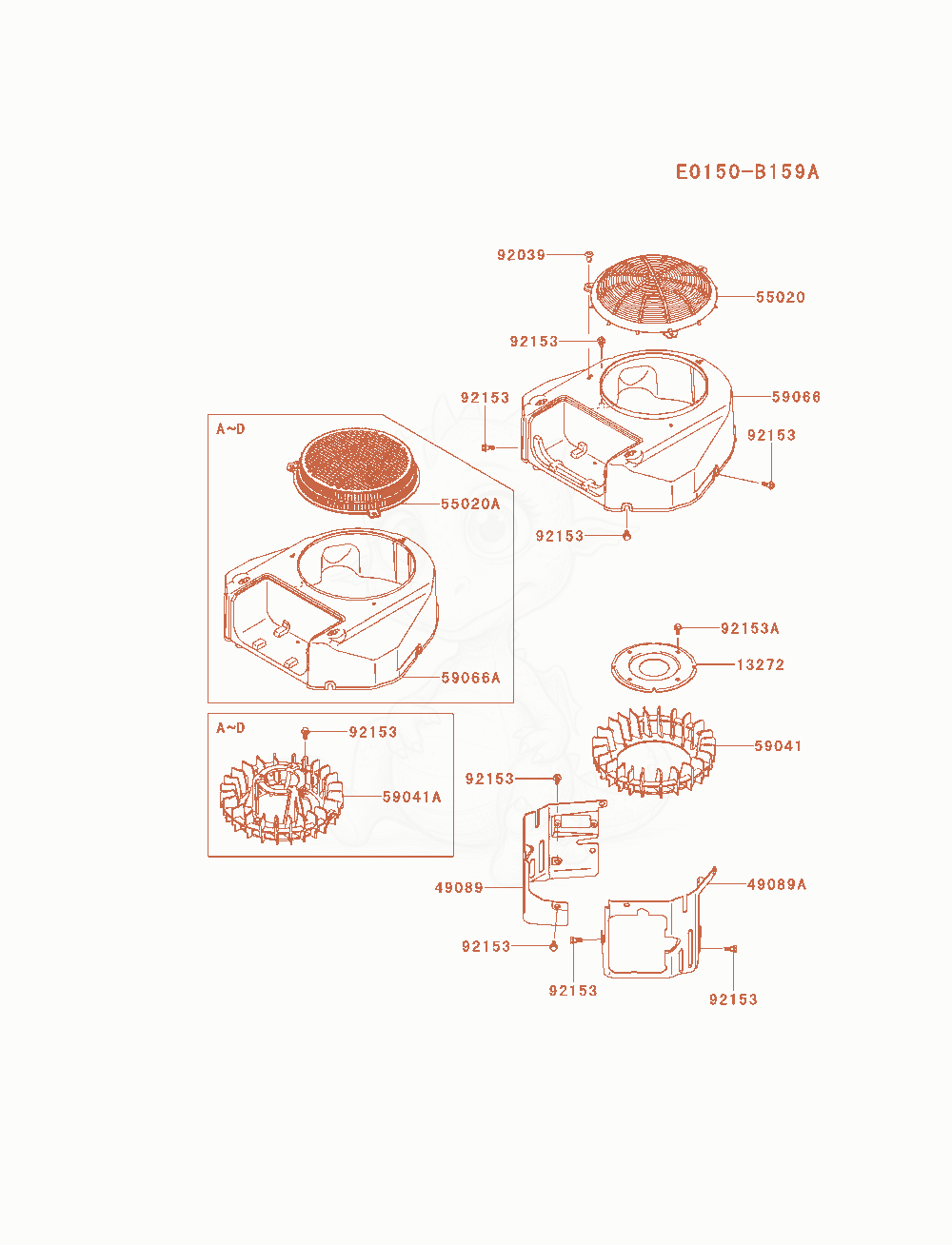

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FS481V-AS10 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

4908949089-7083
$19.26
SHROUD-ENGINEReplaced by 49089-0987×1
49089A49089-7084
$19.70
SHROUD-ENGINEReplaced by 49089-0988×1
55020A55020-7015
$34.85
GUARD,SCREENReplaced by 99999-0397×1
59041A59041-7016
$17.49
FAN×1
59066A99999-0399
$234.55
KIT,HOUSING-FAN×1
9203992039-0751
$0.77
RIVET,GUARD×3
9215392153-7007
$3.78
BOLT,FLANGED,6X16×12
