FS481V-AS07 4 Stroke Engine FS481V

FS481V-AS07 Carburetor Diagram

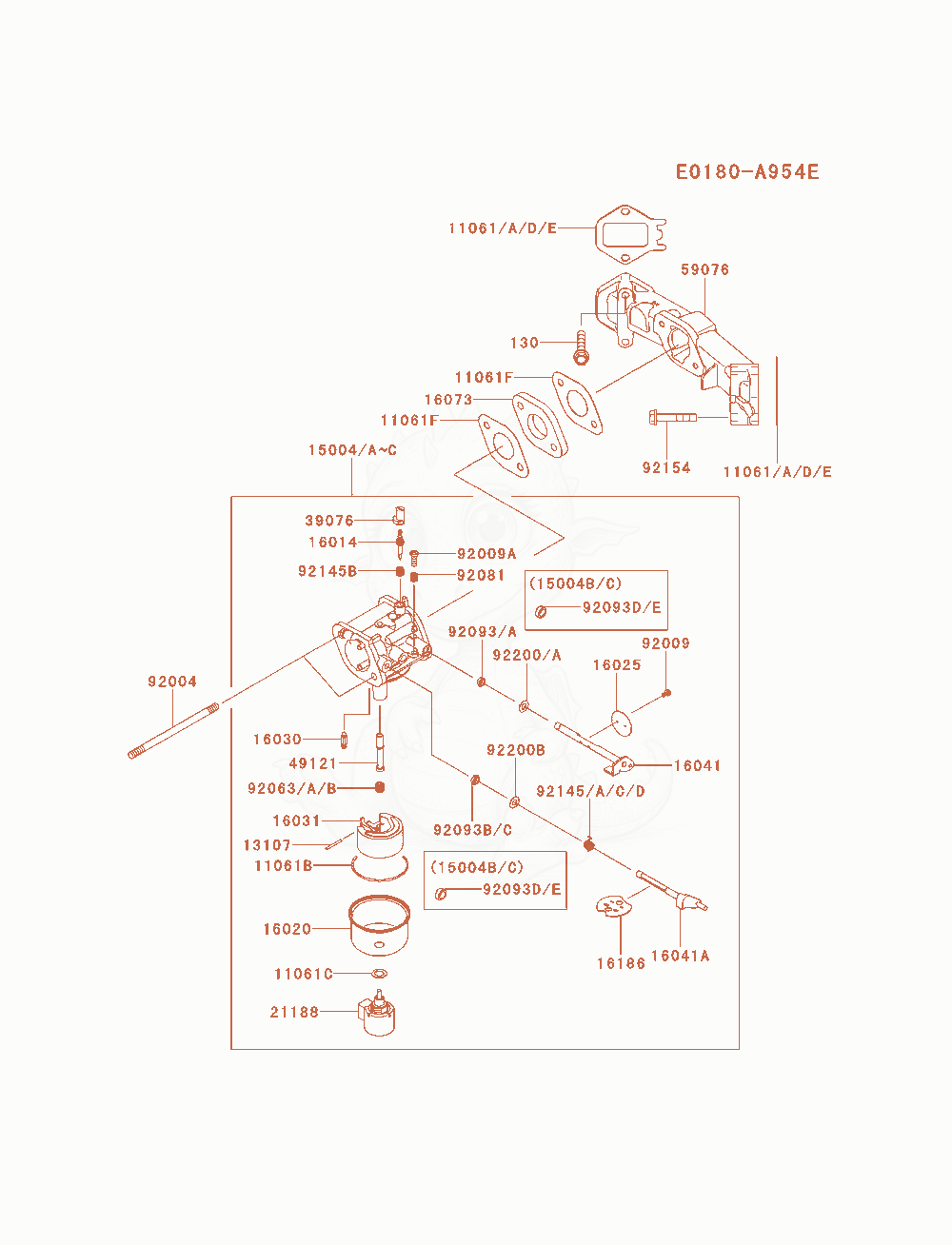

Exploded parts diagram of the Carburetor of a Kawasaki FS481V-AS07 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

92145B92145-7015
$2.72
SPRING×1
92145C92145-7061Not stocked
SPRING×1
9215492154-7004
$0.84
BOLT,6X37×2
92200B92200-2061
$2.09
WASHER,9.8X5.5X1.0×1
130130AA0635
$1.74
BOLT-FLANGED,6X35×2
