FR730V-LS00 4 Stroke Engine FR730V

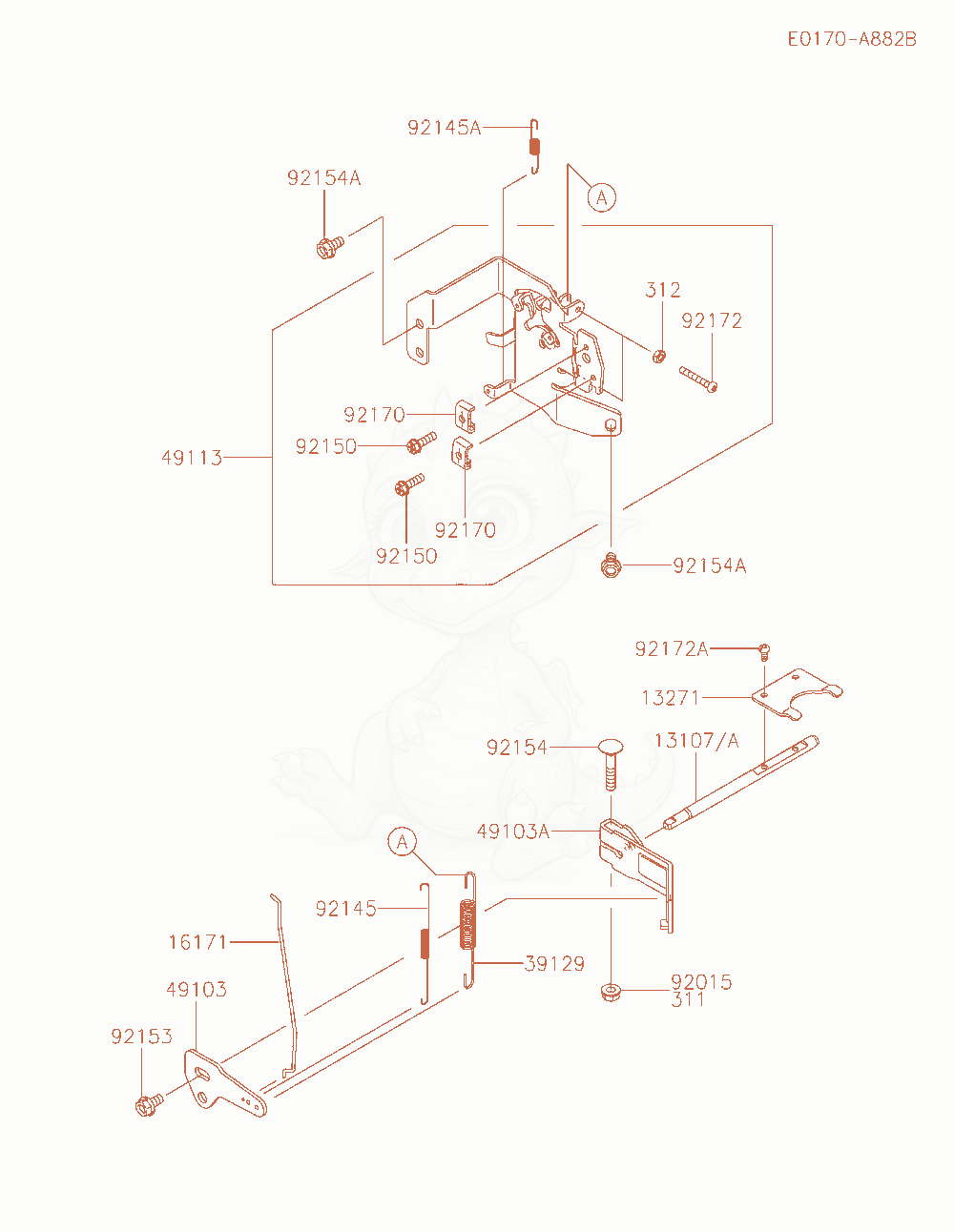

FR730V-LS00 Control-Equipment Diagram
- SHAFT,GOVERNOR×1
- PLATE×1
- LINK×1
- SPRING-GOVERNORReplaced by 39129-0042×1
- ARM-GOVERNOR×1
- ARM-GOVERNOR×1
- PANEL-COMP-CONTROL×1
- NUT,FLANGED,6MM×1
- SPRING,LINK×1
- SPRING×1
- BOLT,5X18×2
- BOLT,6X12×1
- BOLT,6X35×1
- BOLT,6X12×2
- CLAMP×2
- SCREW,5X35×2
- SCREW,4X8Replaced by 92172-1731×2
- NUT-HEX,5MM×2
