FR691V-AS16 4 Stroke Engine FR691V

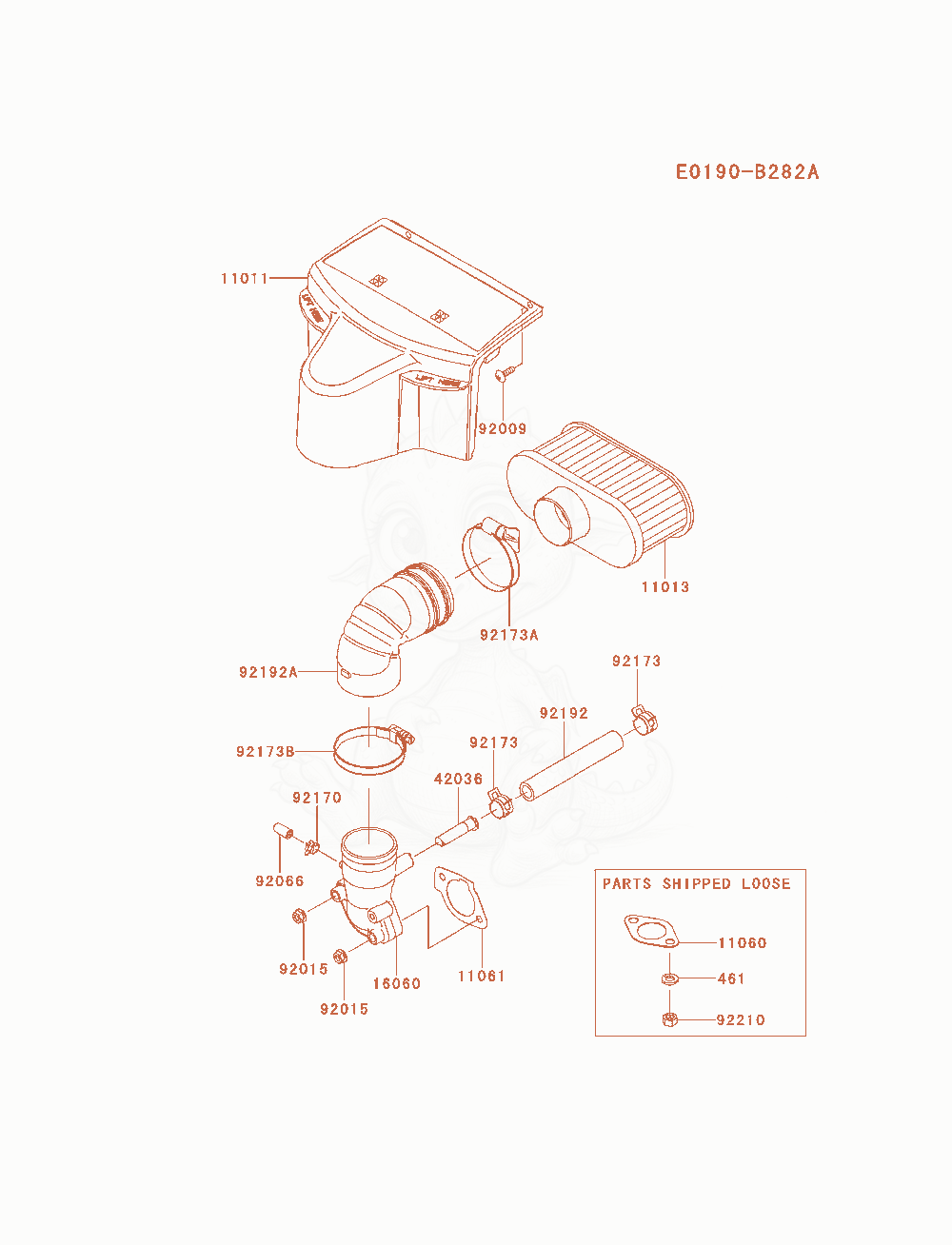

FR691V-AS16 Air-Filter / Muffler Diagram
- CASE-AIR FILTERReplaced by 11011-0967×1
- 11013110130752Not stockedELEMENT-AIR FILTER×1
- GASKET,MUFFLER×2
- GASKET,CARBURETOR/PIPE-INTAKE×1
- PIPE-INTAKEReplaced by 16060-0777×1
- SLEEVE,BREATHERReplaced by 42036-0781×1
- SCREWReplaced by 92172-1608×2
- NUT,FLANGED,6MM×2
- PLUG×1
- CLAMP×1
- CLAMP×2
- CLAMP×1
- CLAMP×1
- TUBE,12.6X18.6X118×1
- TUBEReplaced by 92192-2817×1
- NUT,M8×4
- WASHER-SPRING,8MM×4
