FR691V-AS07 4 Stroke Engine FR691V

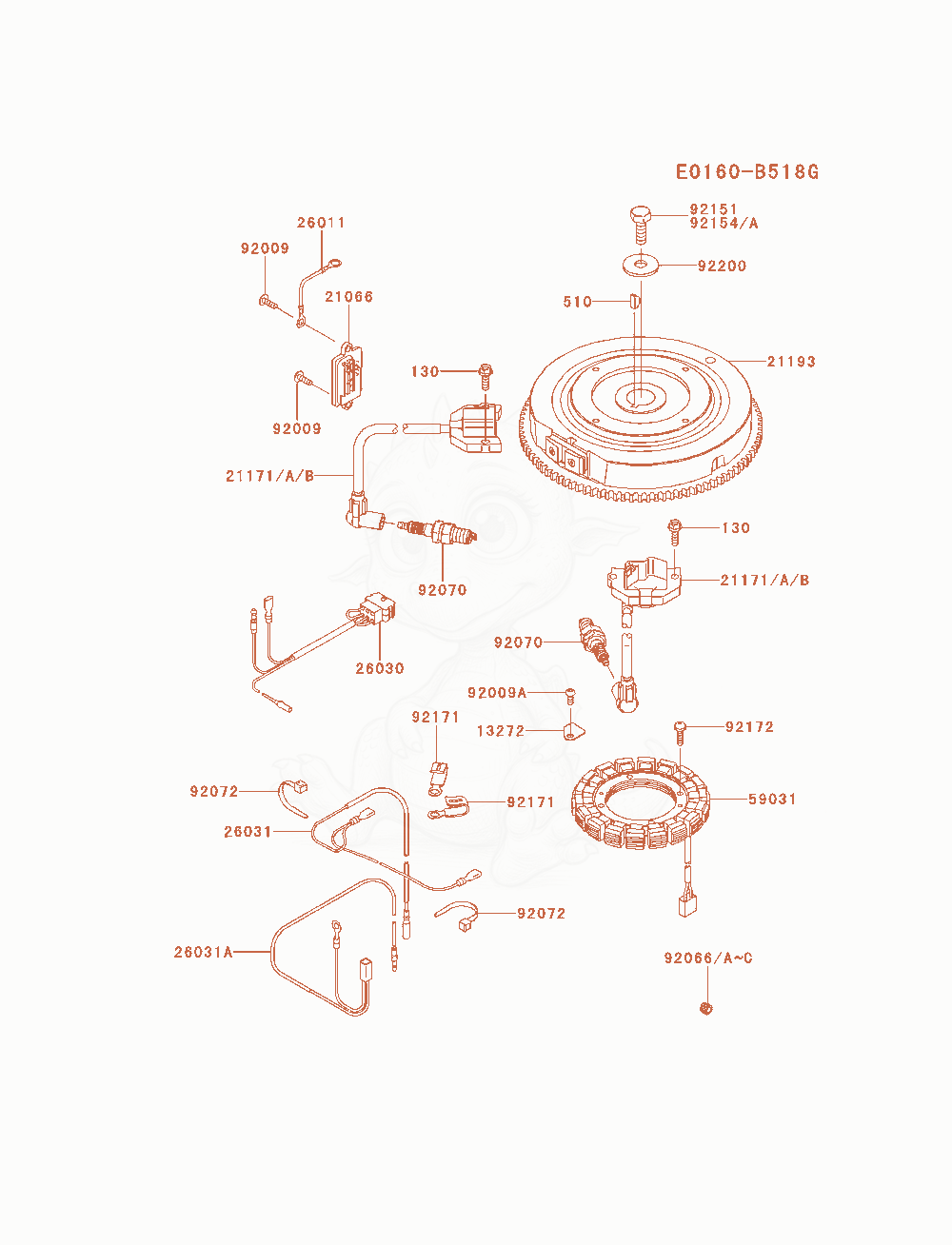

FR691V-AS07 Electric-Equipment Diagram
- PLATE×1
- REGULATOR-VOLTAGE×1
- COIL-ASSY-IGNITIONReplaced by 21171-0743×2
- COIL-ASSY-IGNITIONReplaced by 21171-0743×0
- 2119321193-0035Not stockedFLYWHEEL-ASSY×1
- WIRE-LEAD,L=95×1
- HARNESS×1
- HARNESS×1
- HARNESS×1
- COIL-CHARGING×1
- SCREWReplaced by 92172-1608×2
- SCREW×1
- 92066B92066-7026Not stockedPLUG×1
- PLUG-SPARK,BPR4ES(NGK×2
- BAND×2
- 9215192151-2097Not stockedBOLT,12X30×0
- BOLT,12X30×1
- 9217192171-7008Not stockedCLAMP×2
- SCREW,5X20×4
- WASHERReplaced by 92200-2535×1
- BOLT-FLANGED,6X20×4
- KEY-WOODRUFF×1
