FR691V-AS06 4 Stroke Engine FR691V

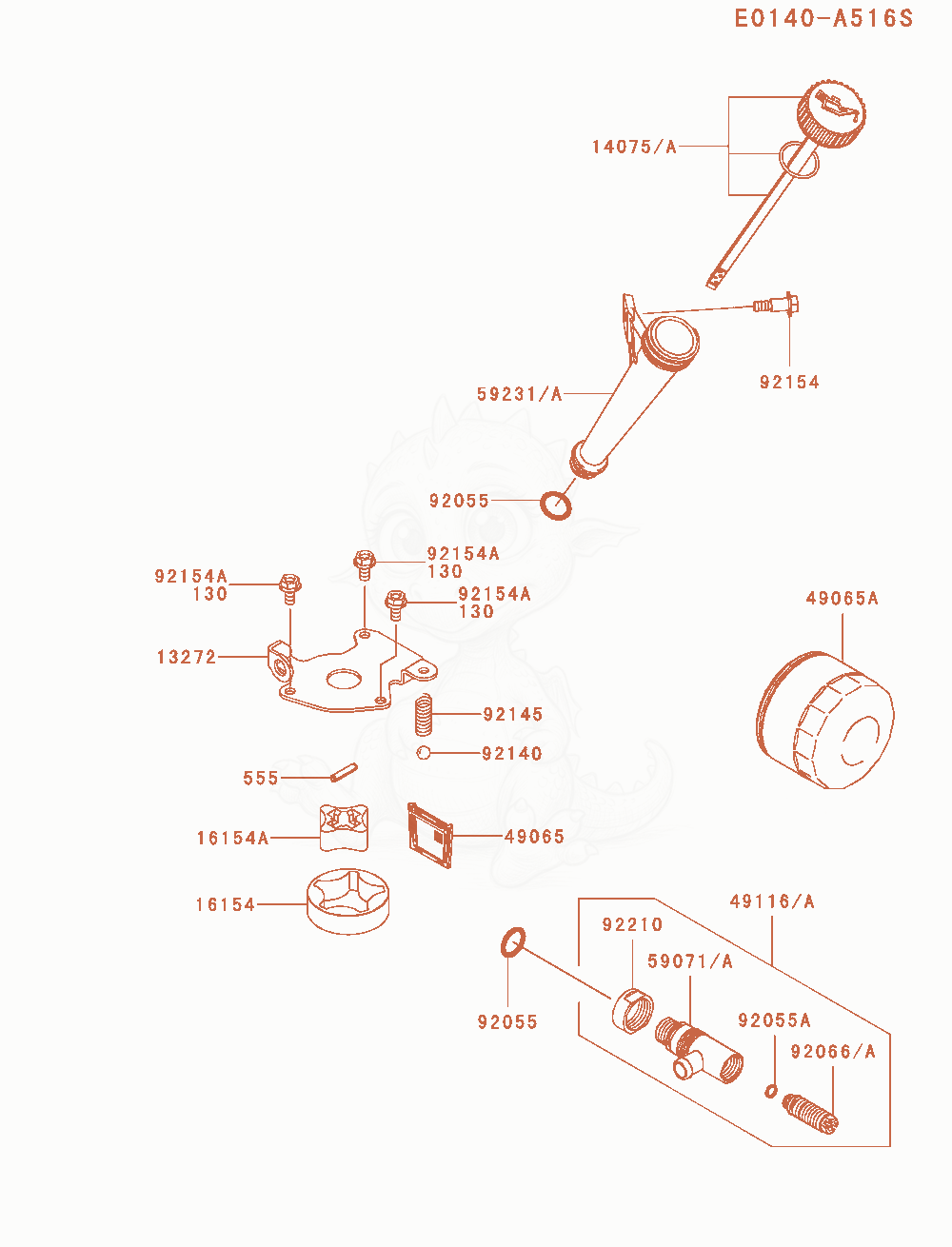

FR691V-AS06 Lubrication-Equipment Diagram

Exploded parts diagram of the Lubrication-Equipment of a Kawasaki FR691V-AS06 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1327213272-7011Not stocked
    PLATE,ROTOR×1
  • 1407514075-0037
    $6.55
    CAP-ASSYReplaced by 14075-0725×1
  • 1615416154-7010
    $17.21
    ROTOR-PUMP,OUTER×1
  • 16154A16154-7011
    $8.07
    ROTOR-PUMP,INNER×1
  • 4906549065-7006
    $3.10
    FILTER-OILReplaced by 49065-0720×1
  • 49065A490650721BKNot stocked
    FILTER-OIL×1
  • 49116A49116-7001Not stocked
    VALVE-ASSY×1
  • 59071A59071-7008
    $9.56
    JOINTReplaced by 59071-0763×1
  • 5923159231-0712Not stocked
    FILLER×1
  • 9205592055-0892
    $0.79
    RING-O,15.8X2.4×2
  • 92055A92055-7002
    $3.98
    RING-O,6MM×1
  • 92066A92066-7007Not stocked
    PLUG×1
  • 9214092140-7003
    $1.10
    BALL,STEEL,13/32Replaced by 92140-0029×1
  • 9214592145-1809
    $0.77
    SPRING,OIL RELIEF×1
  • 9215492154-2823
    $0.67
    BOLT,6MM×1
  • 9221092210-1724
    $2.60
    NUT,M22×1
  • 130130BA0612
    $1.59
    BOLT-FLANGED,6X12×3
  • 555555A0420
    $0.82
    PIN-SPRING,4X20×1
