FR651V-AS05 4 Stroke Engine FR651V

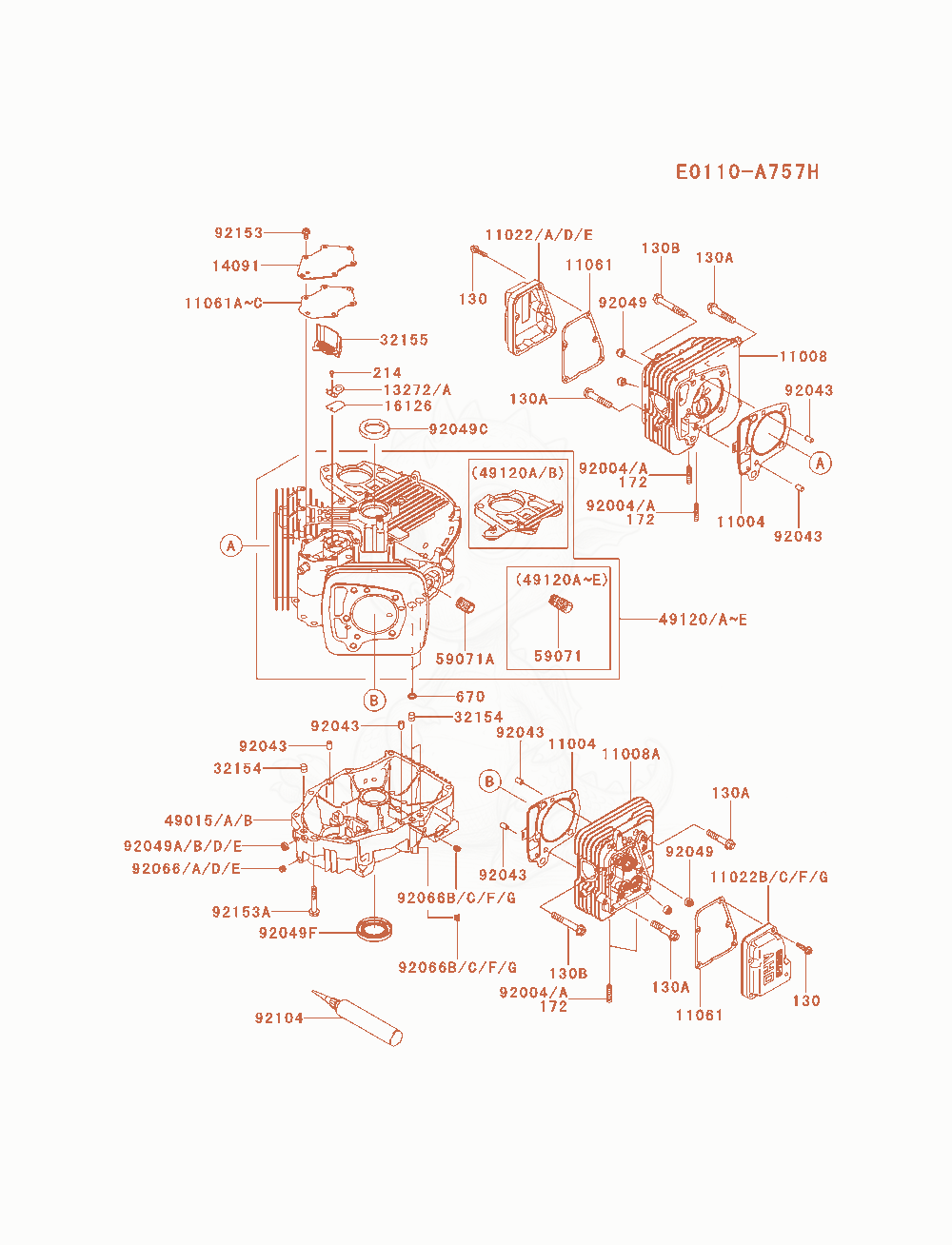

FR651V-AS05 Cylinder / Crankcase Diagram

Exploded parts diagram of the Cylinder / Crankcase of a Kawasaki FR651V-AS05 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 92049C92049-7010
    $5.54
    SEAL-OIL,SD 35X48X8 R HS×1
  • 92049F92049-7028
    $13.01
    SEAL-OIL,38X62X8MTCLV×1
  • 92066D92066-7023Not stocked
    PLUG×1
  • 92066F92066-7026Not stocked
    PLUG×2
  • 9210492104-7001
    $45.03
    GASKET-LIQUID,TB1217HReplaced by 92104-0007×AR
  • 9215392153-7043Not stocked
    BOLT,6X12×6
  • 92153A92153-7054
    $2.37
    BOLT,8X50×10
  • 130130AA0625
    $0.50
    BOLT-FLANGED,6X25×10
  • 130A130CA1050
    $3.85
    BOLT-FLANGED,10X50×4
  • 130B130CA1065
    $2.65
    BOLT-FLANGED,10X65×6
  • 172172BA0818
    $1.74
    BOLT-STUD,8X18×0
  • 214214AA0408
    $4.13
    SCREW-PAN+-,4X8×1
  • 670670B2011
    $5.21
    O RING,11MM×2
