FR600V-AS52 4 Stroke Engine FR600V

FR600V-AS52 Fuel-Tank / Fuel-Valve Diagram

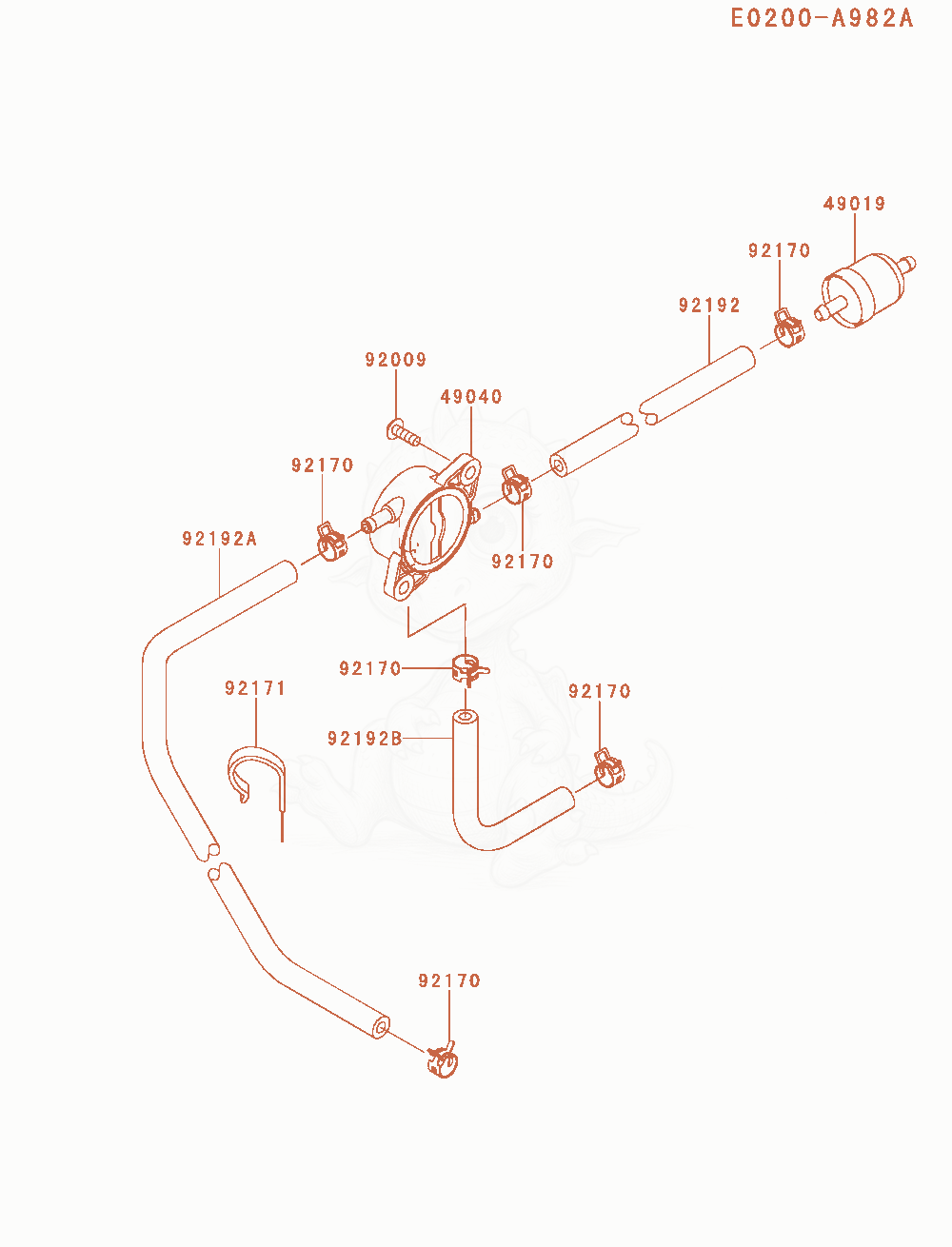

Exploded parts diagram of the Fuel-Tank / Fuel-Valve of a Kawasaki FR600V-AS52 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 4901949019-0027
    $8.39
    FILTER-FUELReplaced by 49019-0031×1
  • 4904049040-0770
    $34.12
    PUMP-FUELReplaced by 49040-0802×1
  • 9200992009-2303
    $2.61
    SCREWReplaced by 92172-1608×2
  • 9217092170-2009
    $2.03
    CLAMPReplaced by 92173-1582×6
  • 9217192171-7005
    $9.02
    CLAMP×1
  • 9219292192-1534Not stocked
    TUBE,6.35X12.7X100×1
  • 92192A92192-1560Not stocked
    TUBE,6.35X12.7X375×1
  • 92192B92192-7148
    $6.37
    TUBE,6.4X12.7X150×1
