FR600V-AS17 4 Stroke Engine FR600V

FR600V-AS17 Cooling-Equipment Diagram

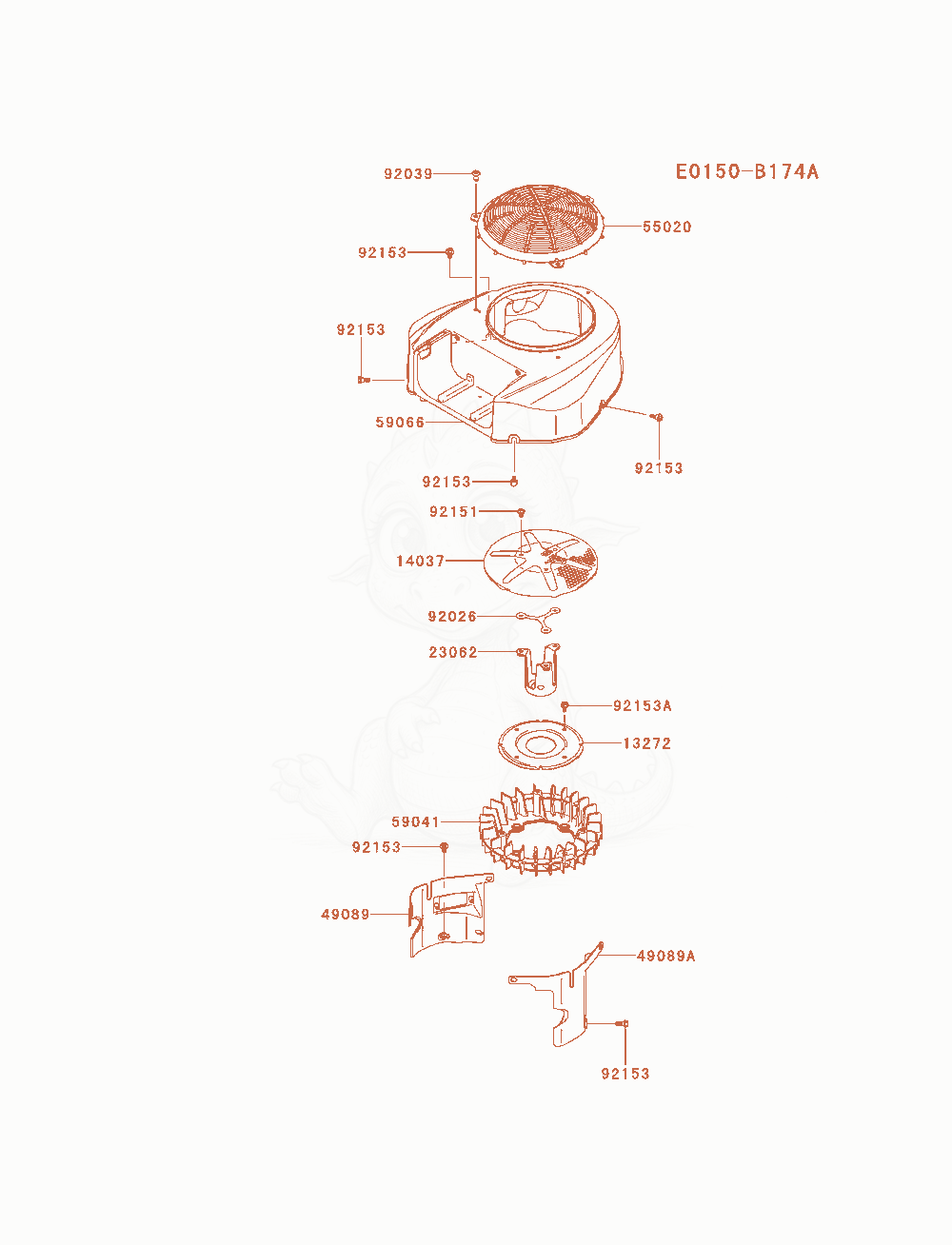

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FR600V-AS17 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1327213272-1487
    $8.41
    PLATE,FANReplaced by 13272-7483×1
  • 1403714037-7008-9H
    $31.46
    SCREEN×1
  • 2306223062-7022
    $11.42
    BRACKET-COMP×1
  • 4908949089-7091
    $16.17
    SHROUD-ENGINEReplaced by 49089-0989×1
  • 49089A49089-7092
    $16.23
    SHROUD-ENGINEReplaced by 49089-0990×1
  • 5502055020-0900
    $34.73
    GUARD×1
  • 5904159041-0008Not stocked
    FAN×1
  • 5906659066-0020
    $177.70
    HOUSING-FANReplaced by 59066-0867×1
  • 9202692026-7007
    $4.89
    SPACER×1
  • 9203992039-0751
    $0.77
    RIVET,GUARD×3
  • 9215192151-7012Not stocked
    BOLT,6X12×3
  • 9215392153-7007
    $3.78
    BOLT,FLANGED,6X16×6
  • 92153A92153-7043Not stocked
    BOLT,6X12×4
