FR600V-AS04 4 Stroke Engine FR600V

FR600V-AS04 Cooling-Equipment Diagram

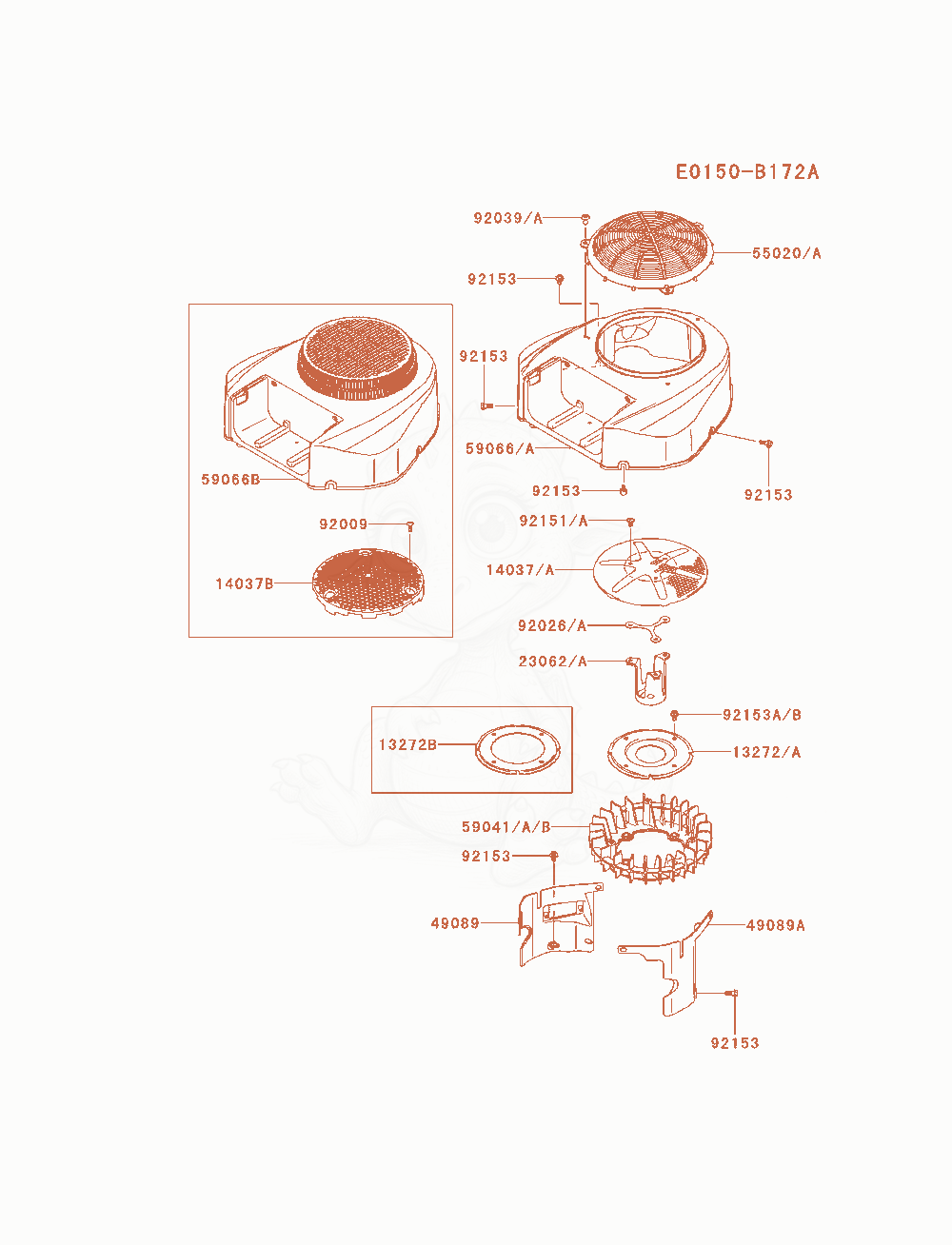

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FR600V-AS04 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 13272A13272-1487
    $8.41
    PLATE,FANReplaced by 13272-7483×1
  • 14037A14037-7008-9H
    $31.46
    SCREEN×1
  • 14037B99999-0400
    $526.53
    KIT,HOUSING-FAN×0
  • 23062A23062-7022
    $11.42
    BRACKET-COMP×1
  • 4908949089-7091
    $16.17
    SHROUD-ENGINEReplaced by 49089-0989×1
  • 49089A49089-7092
    $16.23
    SHROUD-ENGINEReplaced by 49089-0990×1
  • 55020A55020-0900
    $34.73
    GUARD×1
  • 59041A59041-0008Not stocked
    FAN×1
  • 59041B99999-0400
    $526.53
    KIT,HOUSING-FAN×0
  • 59066A59066-0020
    $177.70
    HOUSING-FANReplaced by 59066-0867×1
  • 59066B99999-0400
    $526.53
    KIT,HOUSING-FAN×0
  • 9200992009-2303
    $2.61
    SCREWReplaced by 92172-1608×0
  • 92026A92026-7007
    $4.89
    SPACER×1
  • 92039A92039-0751
    $0.77
    RIVET,GUARD×3
  • 92151A92151-7012Not stocked
    BOLT,6X12×3
  • 9215392153-7007
    $3.78
    BOLT,FLANGED,6X16×6
  • 92153B92153-7043Not stocked
    BOLT,6X12×4
