FR600V-AS00 4 Stroke Engine FR600V

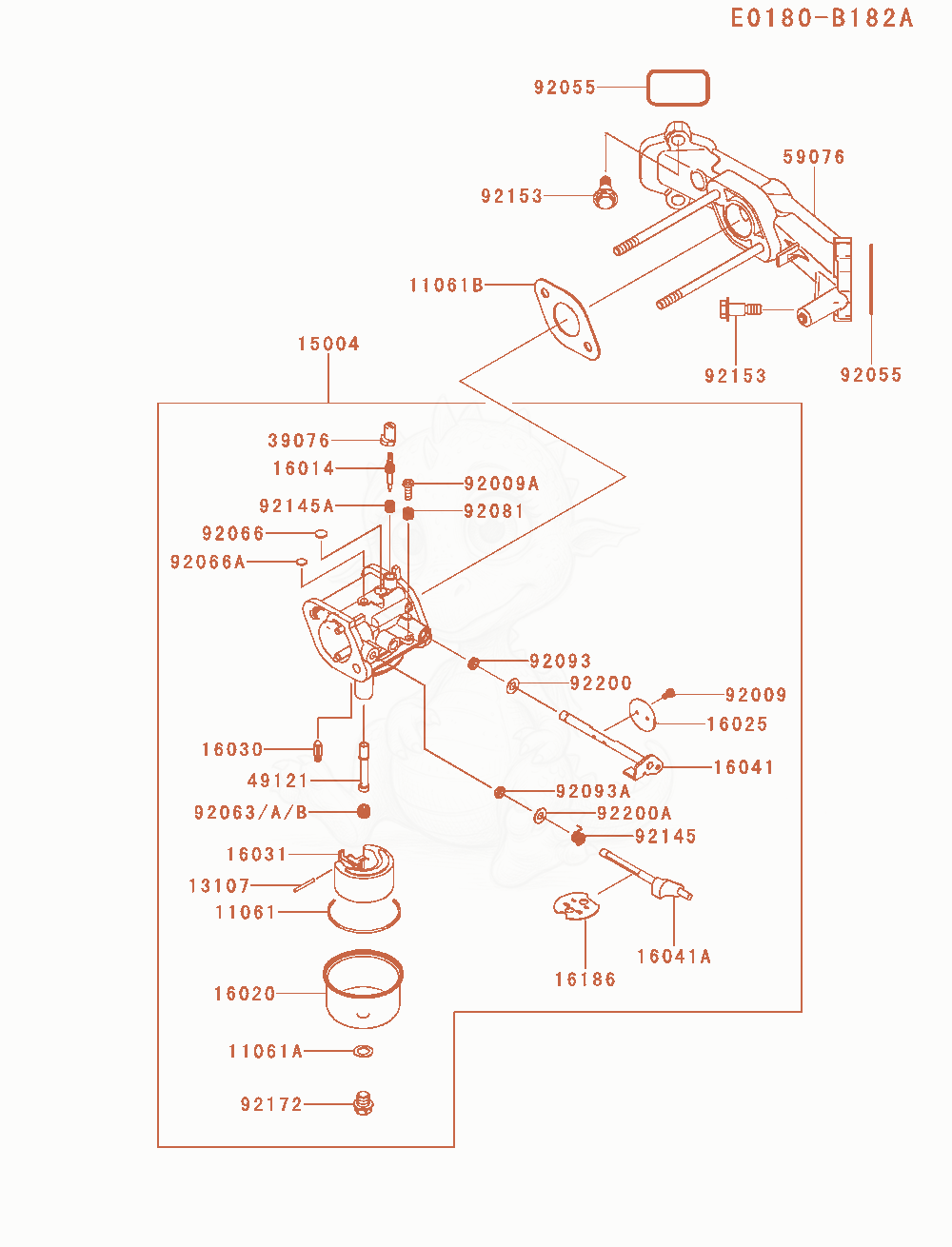

FR600V-AS00 Carburetor(As00) Diagram
- GASKET,CHAMBER×1
- GASKET,SCREWReplaced by 11061-1573×1
- GASKET,INSULATOR×1
- SHAFT×1
- CARBURETOR-ASSYReplaced by 15004-0816×1
- SCREW-PILOT AIR×1
- CHAMBER-FLOAT×1
- VALVE-THROTTLE×1
- VALVE-FLOAT×1
- FLOAT×1
- SHAFT-CARBURETOR,THROTTLE×1
- SHAFT-CARBURETOR,CHOKE×1
- VALVE-ASSY-CHOKE×1
- LIMITER×1
- NOZZLE-MAIN×1
- MANIFOLD-INTAKE×1
- SCREW×2
- SCREW×1
- RING-O,42MM×2
- JET-MAIN,#100,3280FT×AR
- JET-MAIN,#098,6560FT×AR
- JET-MAIN,#102×1
- PLUG×1
- PLUG×1
- SPRING×1
- SEAL×1
- SEAL×1
- SPRING×1
- SPRING×1
- BOLTReplaced by 92154-2823×4
- SCREW×1
- WASHER×1
- WASHER,9.8X5.5X1.0×1
