FR541V-AS05 4 Stroke Engine FR541V

FR541V-AS05 Control-Equipment Diagram

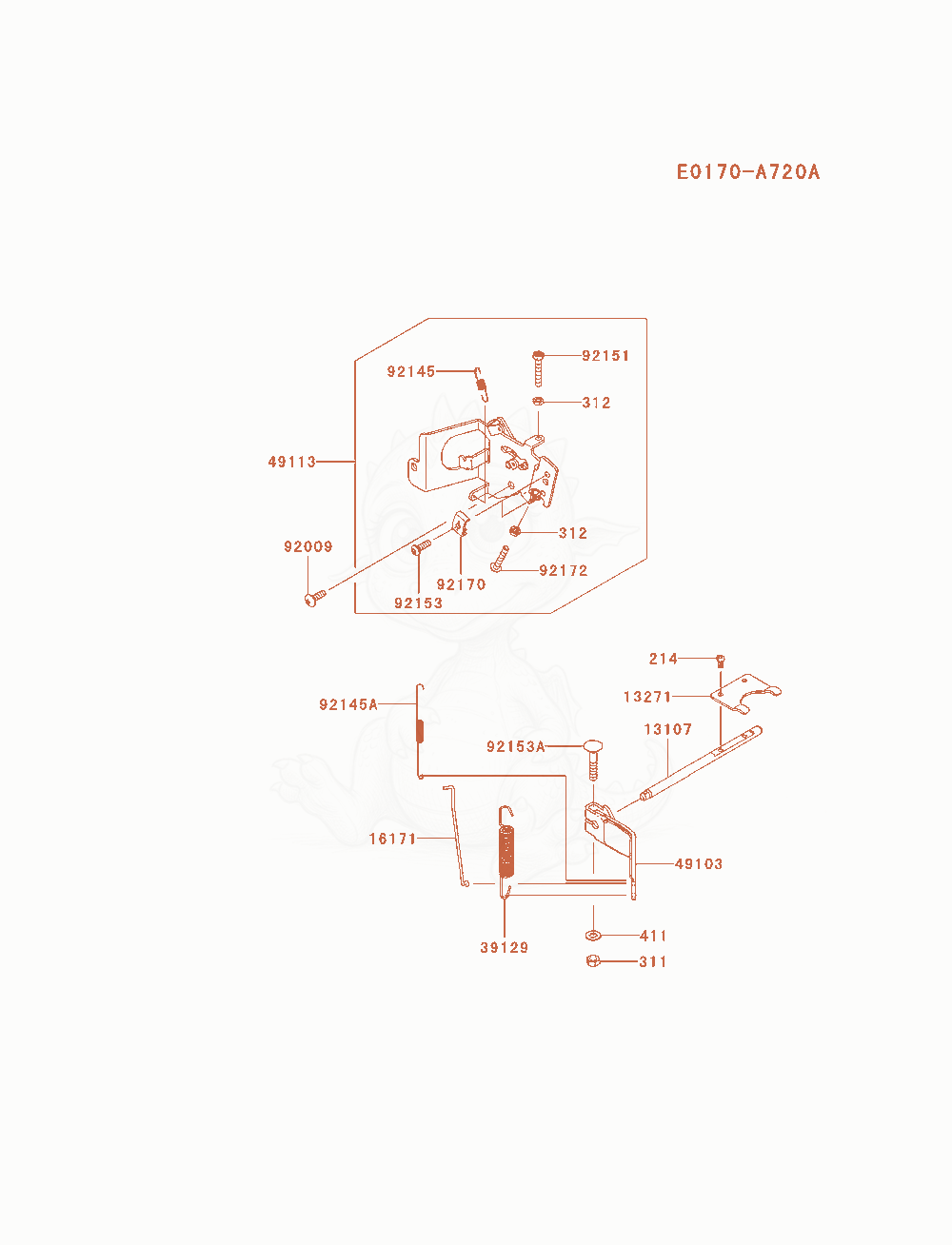

Exploded parts diagram of the Control-Equipment of a Kawasaki FR541V-AS05 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1310713107-7049Not stocked
    SHAFT×1
  • 1327113271-7038
    $3.04
    PLATE×1
  • 1617116171-7025
    $0.50
    LINKReplaced by 16171-0044×1
  • 3912939129-7033
    $4.16
    SPRING-GOVERNORReplaced by 39129-0725×1
  • 4910349103-7017Not stocked
    ARM-GOVERNOR×1
  • 4911349113-0715
    $24.14
    PANEL-COMP-CONTROL×1
  • 9200992009-2303
    $2.61
    SCREWReplaced by 92172-1608×1
  • 9214592145-7004Not stocked
    SPRING×1
  • 92145A92145-7057
    $3.21
    SPRINGReplaced by 92145-1811×1
  • 9215192151-7014
    $1.09
    BOLT,5X30×1
  • 9215392153-7001
    $0.84
    BOLT,SOCKET,5X16×2
  • 92153A92153-7033
    $0.57
    BOLT,6X35Replaced by 92154-2697×1
  • 9217092170-7001
    $2.31
    CLAMP×2
  • 9217292172-7037Not stocked
    SCREW,5X30×1
  • 214214AA0408
    $4.13
    SCREW-PAN+-,4X8×2
  • 311311BA0600Not stocked
    NUT-HEX,6MM×1
  • 312312AA0500
    $0.36
    NUT-HEX,5MM×2
  • 411411AA0600
    $3.69
    WASHER-PLAIN,6MM×1
