FR541V-AS00 4 Stroke Engine FR541V

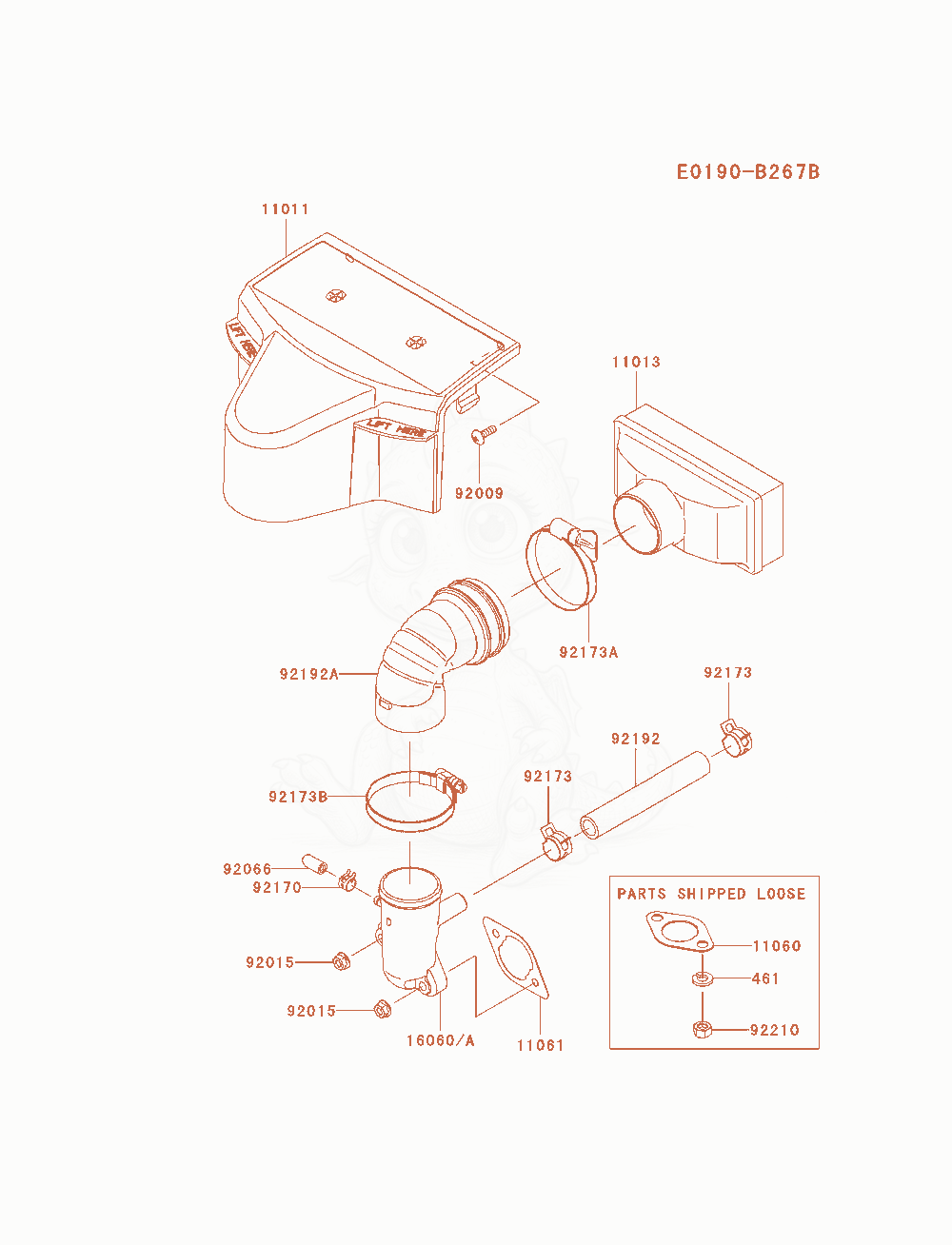

FR541V-AS00 Air-Filter / Muffler Diagram
- CASE-AIR FILTERReplaced by 11011-1697×1
- ELEMENT-AIR FILTER×1
- GASKET,MUFFLER×2
- GASKET-AIR FILTER×1
- 1606016060-0740Not stockedPIPE-INTAKE×1
- PIPE-INTAKEReplaced by 16060-0792×0
- SCREWReplaced by 92172-1608×2
- NUT,FLANGED,6MM×2
- PLUG×1
- CLAMP×1
- CLAMP×2
- CLAMP×1
- CLAMP×1
- TUBE,12.6X18.6X118×1
- TUBE,A/CReplaced by 92192-2816×1
- NUT,M8×4
- WASHER-SPRING,8MM×4
