FJ180V-DM00 4 Stroke Engine FJ180V

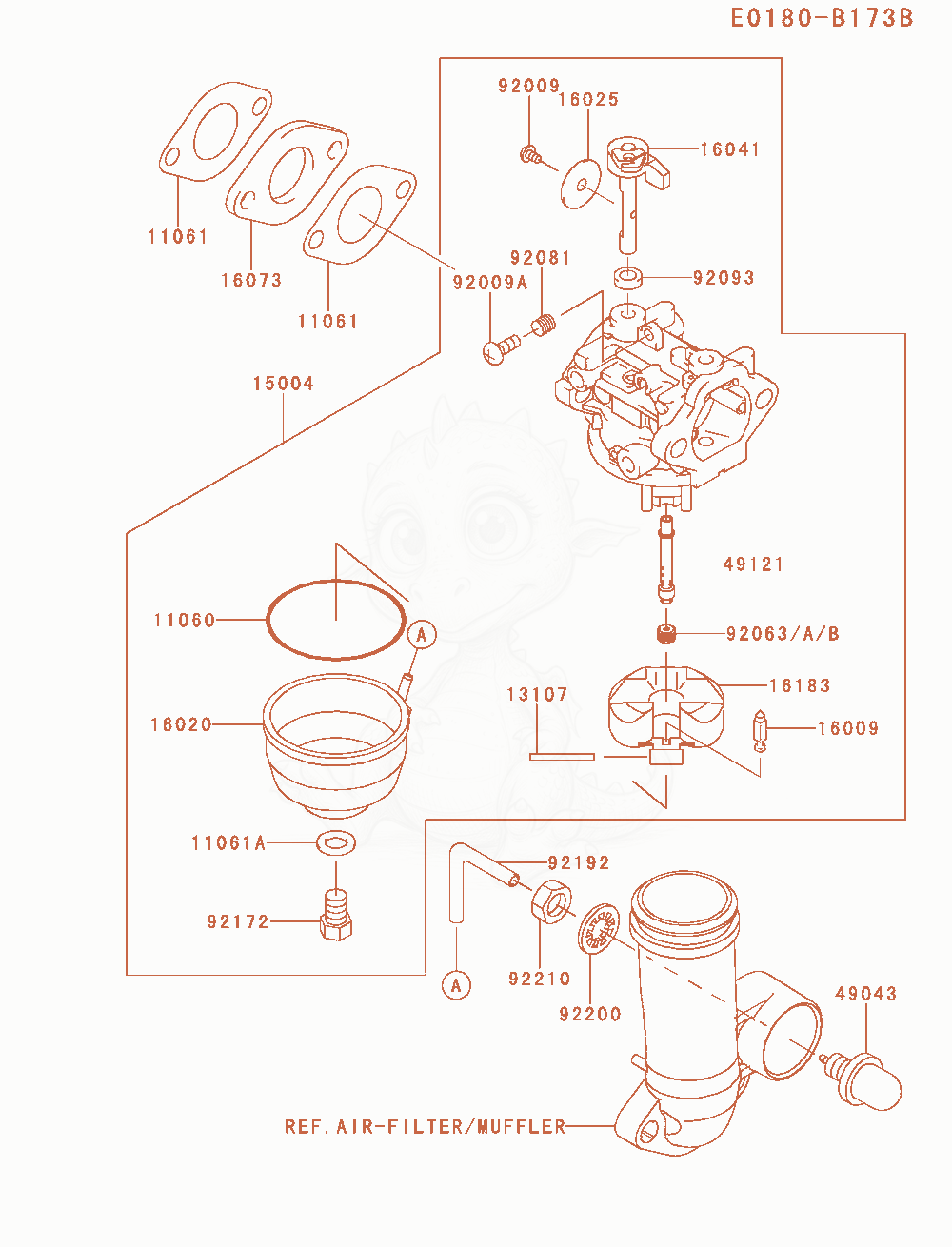

FJ180V-DM00 Carburetor(Bm00 / Dm00) Diagram
- GASKET×1
- GASKET,INSULATOR×2
- GASKET,SCREWReplaced by 11061-1573×1
- SHAFT×1
- CARBURETOR-ASSY×1
- NEEDLE-JET×1
- CHAMBER-FLOAT×1
- VALVE-THROTTLE×1
- SHAFT-CARBURETOR×1
- INSULATOR×1
- FLOAT-ASSY×1
- PUMP-PRIMING×1
- NOZZLE-MAIN×1
- SCREW×1
- SCREW×1
- JET-MAIN,#76×1
- JET-MAIN,#74×1
- 92063B92063-7050Not stockedJET-MAIN,#72×1
- SPRING×1
- SEAL×1
- SCREW×1
- 9219292192-7163Not stockedTUBE,2.36X4.85X75×1
- WASHER-TOOTHED×1
- NUT,M10×1
