FJ180V-CM11 4 Stroke Engine FJ180V

FJ180V-CM11 Valve / Camshaft Diagram

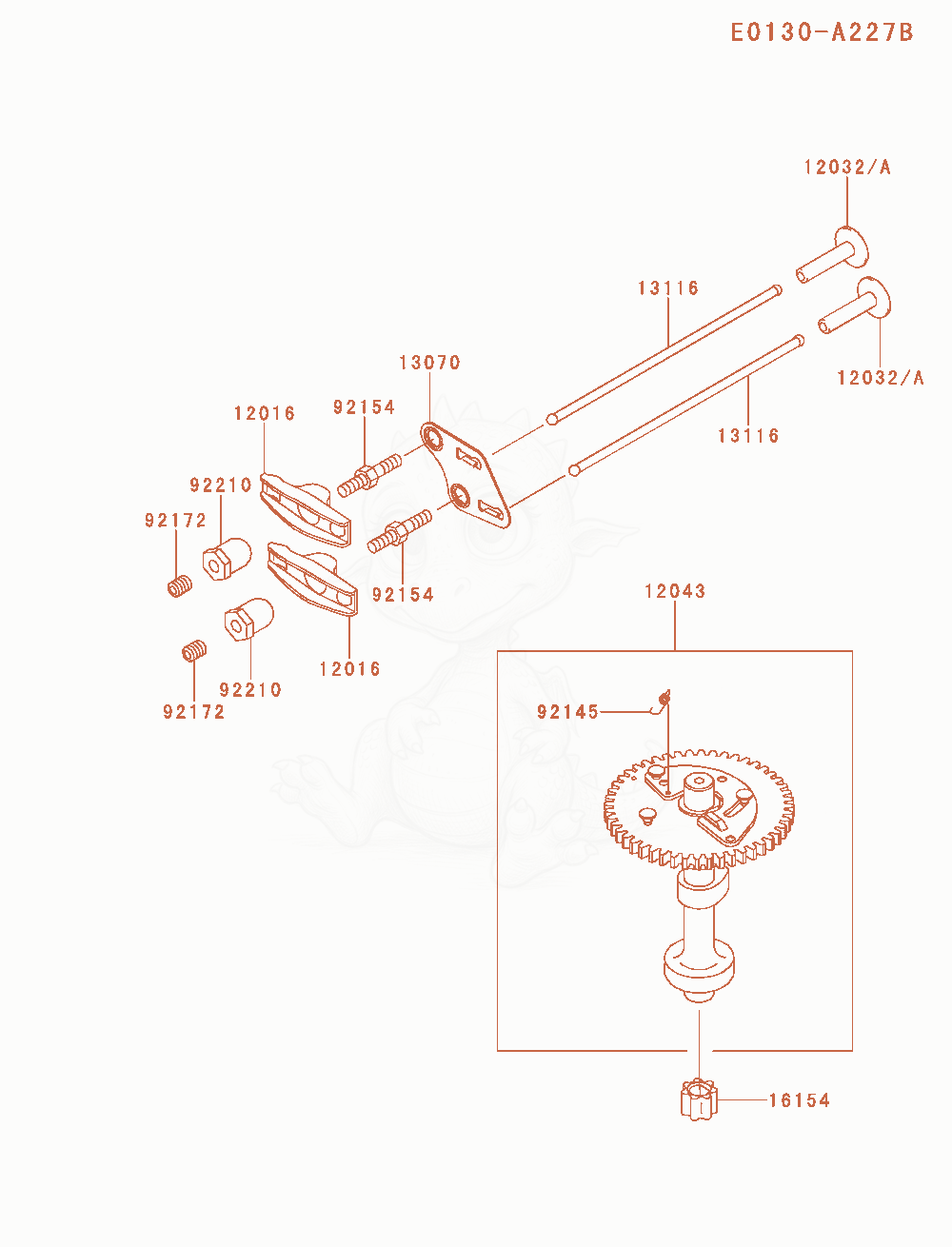

Exploded parts diagram of the Valve / Camshaft of a Kawasaki FJ180V-CM11 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1201612016-2067Not stocked
    ARM-ROCKER×2
  • 1203212032-0026
    $11.34
    TAPPET×2
  • 1204312043-2001
    $140.86
    CAMSHAFT-ASSY-VALVE×1
  • 1307013070-2118
    $1.28
    GUIDE×1
  • 1311613116-2076Not stocked
    ROD-PUSH×2
  • 1615416154-7004
    $6.49
    ROTOR-PUMP×1
  • 9214592145-2179
    $1.40
    SPRING×1
  • 9215492154-2009Not stocked
    BOLT×2
  • 9217292172-2107
    $1.51
    SCREWReplaced by 92172-1505×2
  • 9221092210-2123
    $2.86
    NUT,M6Replaced by 92210-1979×2
