FJ180V-AM01 4 Stroke Engine FJ180V

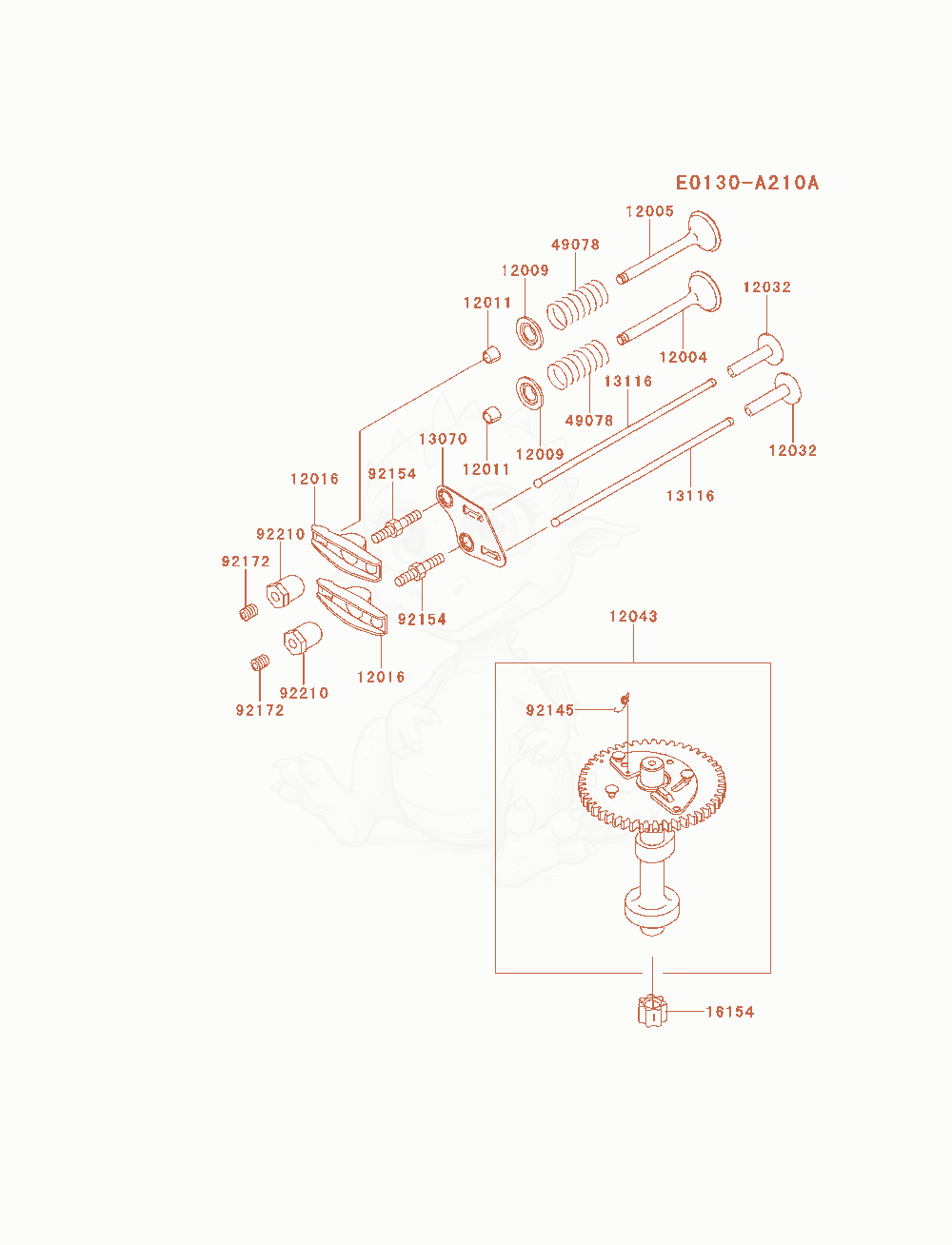

FJ180V-AM01 Valve / Camshaft Diagram
- VALVE-INTAKE×1
- VALVE-EXHAUST×1
- RETAINER-VALVE SPRING×2
- COLLET×4
- 1201612016-2067Not stockedARM-ROCKER×2
- TAPPETReplaced by 12032-0026×2
- CAMSHAFT-ASSY-VALVE×1
- GUIDE×1
- 1311613116-2076Not stockedROD-PUSH×2
- ROTOR-PUMP×1
- SPRING-ENGINE VALVE×2
- SPRING×1
- 9215492154-2009Not stockedBOLT×2
- SCREWReplaced by 92172-1505×2
- NUT,M6Replaced by 92210-1979×2
