FJ180V-AM00 4 Stroke Engine FJ180V

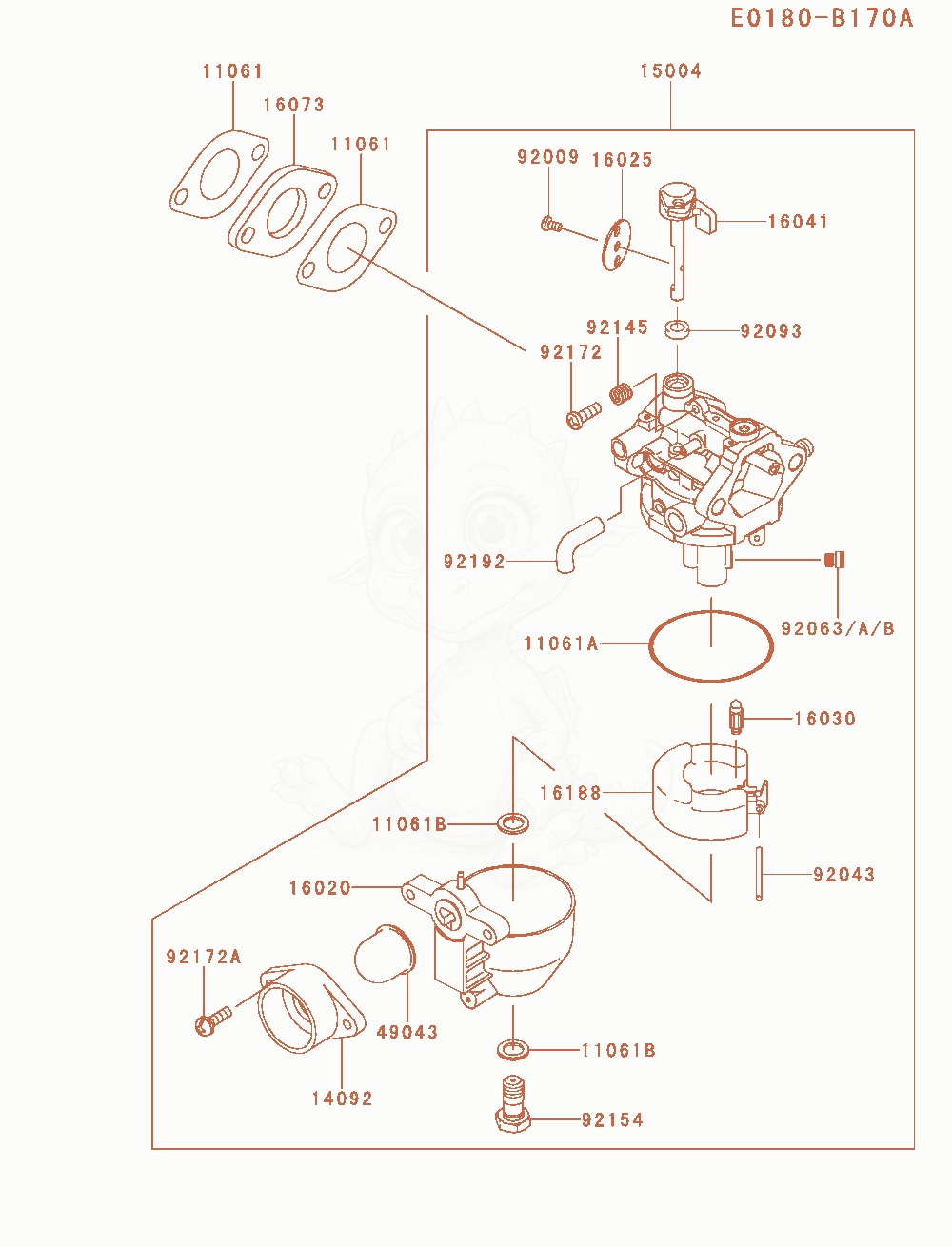

FJ180V-AM00 Carburetor(Am00) Diagram
- GASKET,INSULATOR×2
- GASKET×1
- GASKET,CENTER POST×2
- COVER,PUMP-PRIMING×1
- CARBURETOR-ASSY×1
- CHAMBER-FLOAT×1
- VALVE-THROTTLE×1
- VALVE-FLOAT×1
- SHAFT-CARBURETOR×1
- INSULATOR×1
- FLOAT×1
- PUMP-PRIMING×1
- SCREW×1
- PIN×1
- JET-MAIN,#81×1
- JET-MAIN,#79,3280FT×1
- JET-MAIN,#77,6560FT×1
- SEAL×1
- SPRING×1
- BOLT×1
- SCREW×1
- SCREW×2
- TUBE,PRIMING×1
