FH770D-ES01 4 Stroke Engine FH770D

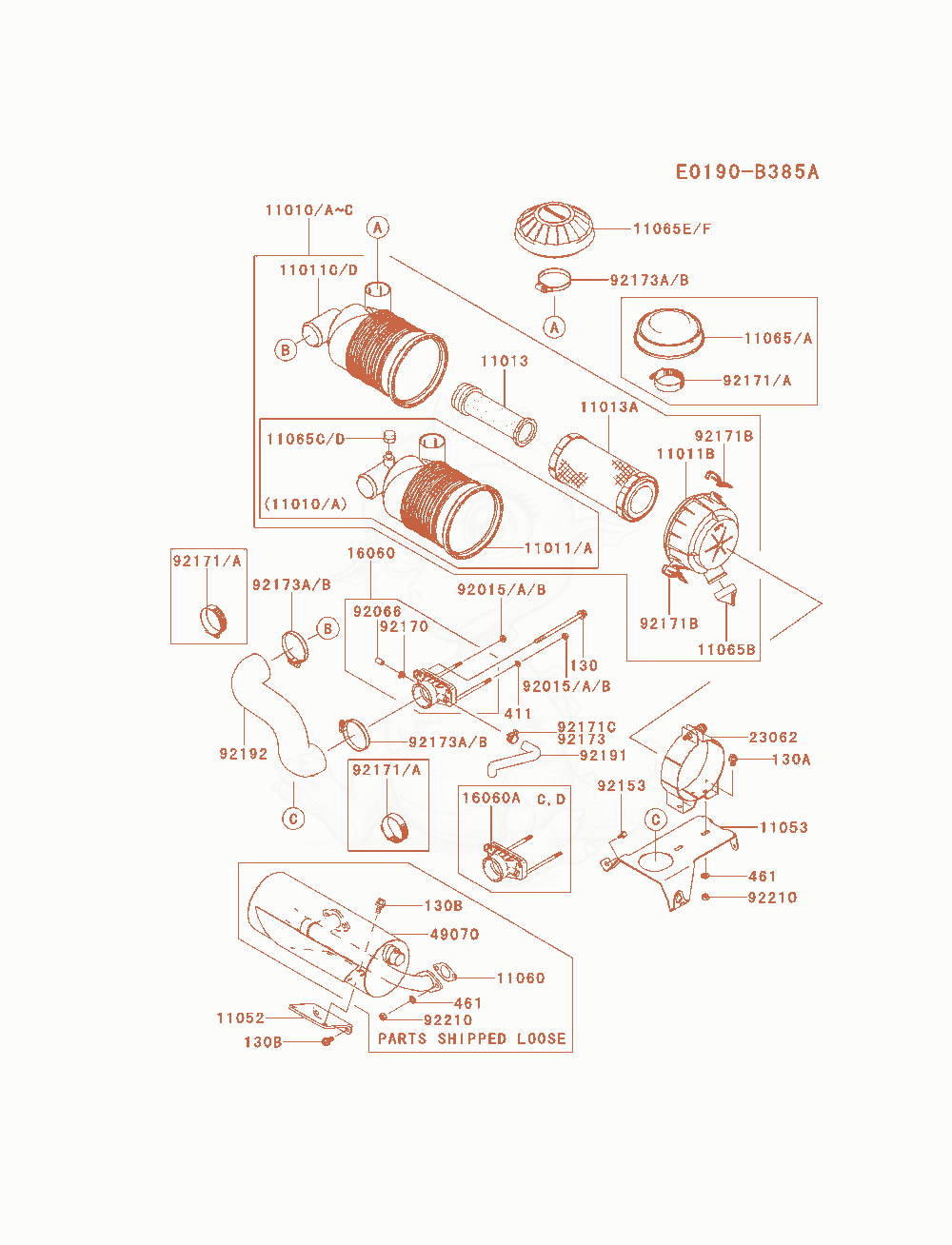

FH770D-ES01 Air-Filter / Muffler Diagram
- 11010B11010-7032Not stockedFILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- 1105211052-7001Not stockedBRACKET×1
- 1105311057-0415Not stockedBRACKET,A/C CASE×1
- GASKET,MUFFLER×2
- CAP×1
- CAPReplaced by 11065-1384×1
- PIPE-INTAKEReplaced by 16060-0766×1
- BRACKET-COMP×1
- 4907049070-7023Not stockedMUFFLER-COMP×1
- NUT,FLANGED,6MM×2
- PLUG×1
- 9215392153-7043Not stockedBOLT,6X12×2
- CLAMP×1
- CLAMP×2
- CLAMP×1
- CLAMP×3
- TUBE,BREATHER×1
