FH770D-AS04 4 Stroke Engine FH770D

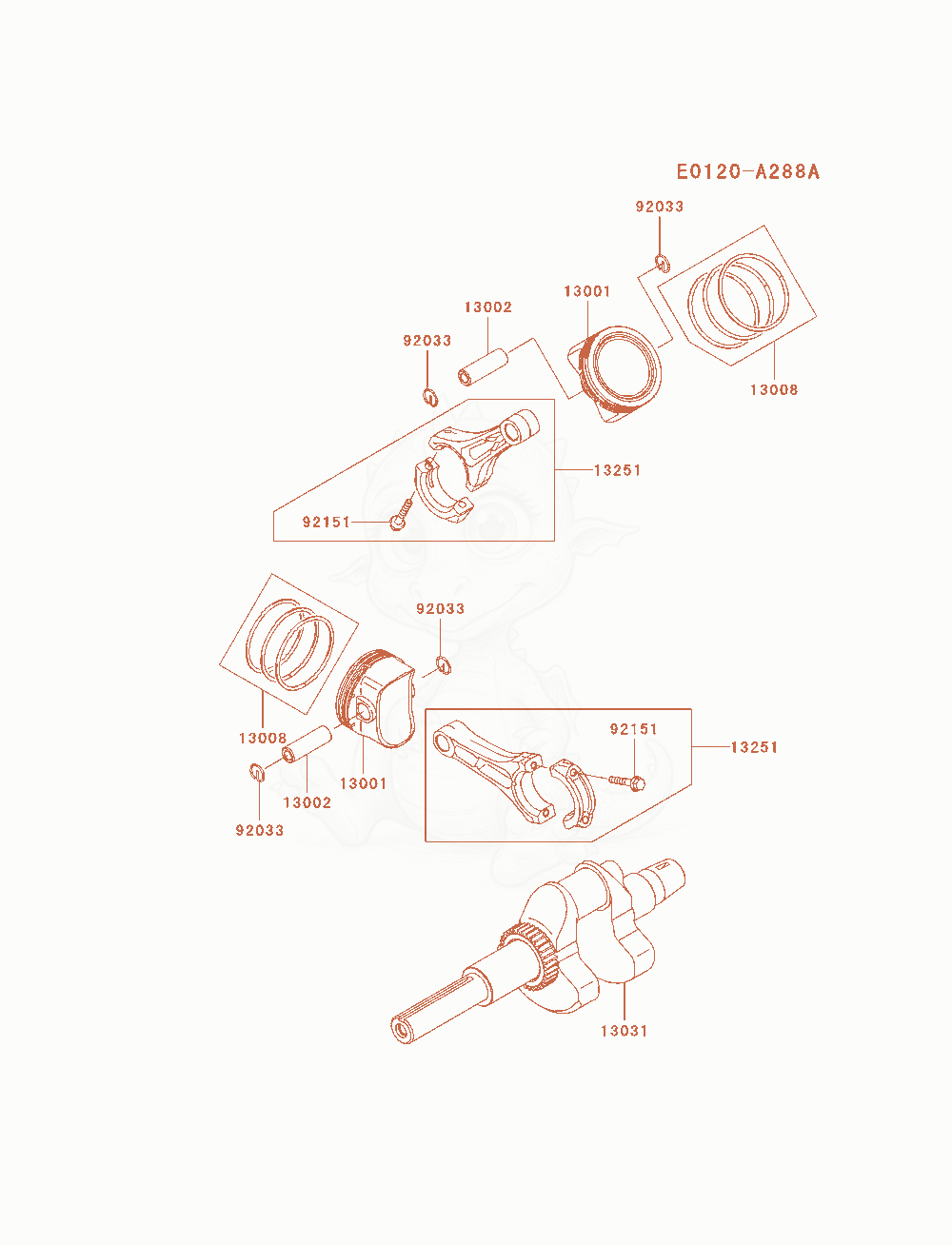

FH770D-AS04 Piston / Crankshaft Diagram

Exploded parts diagram of the Piston / Crankshaft of a Kawasaki FH770D-AS04 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1300113001-7020
    $85.12
    PISTON-ENGINE×2
  • 1300213002-2085
    $8.44
    PIN-PISTON×2
  • 1300813008-6064
    $45.06
    RING-SET-PISTON×2
  • 1303113031-0795
    $332.67
    CRANKSHAFT-COMP×1
  • 1325113251-0048Not stocked
    ROD-ASSY-CONNECTING×2
  • 9203392033-7005
    $0.39
    RING-SNAP×4
  • 9215192151-7017Not stocked
    BOLT,6X35×4
